Switches and warning lights, 1959-75

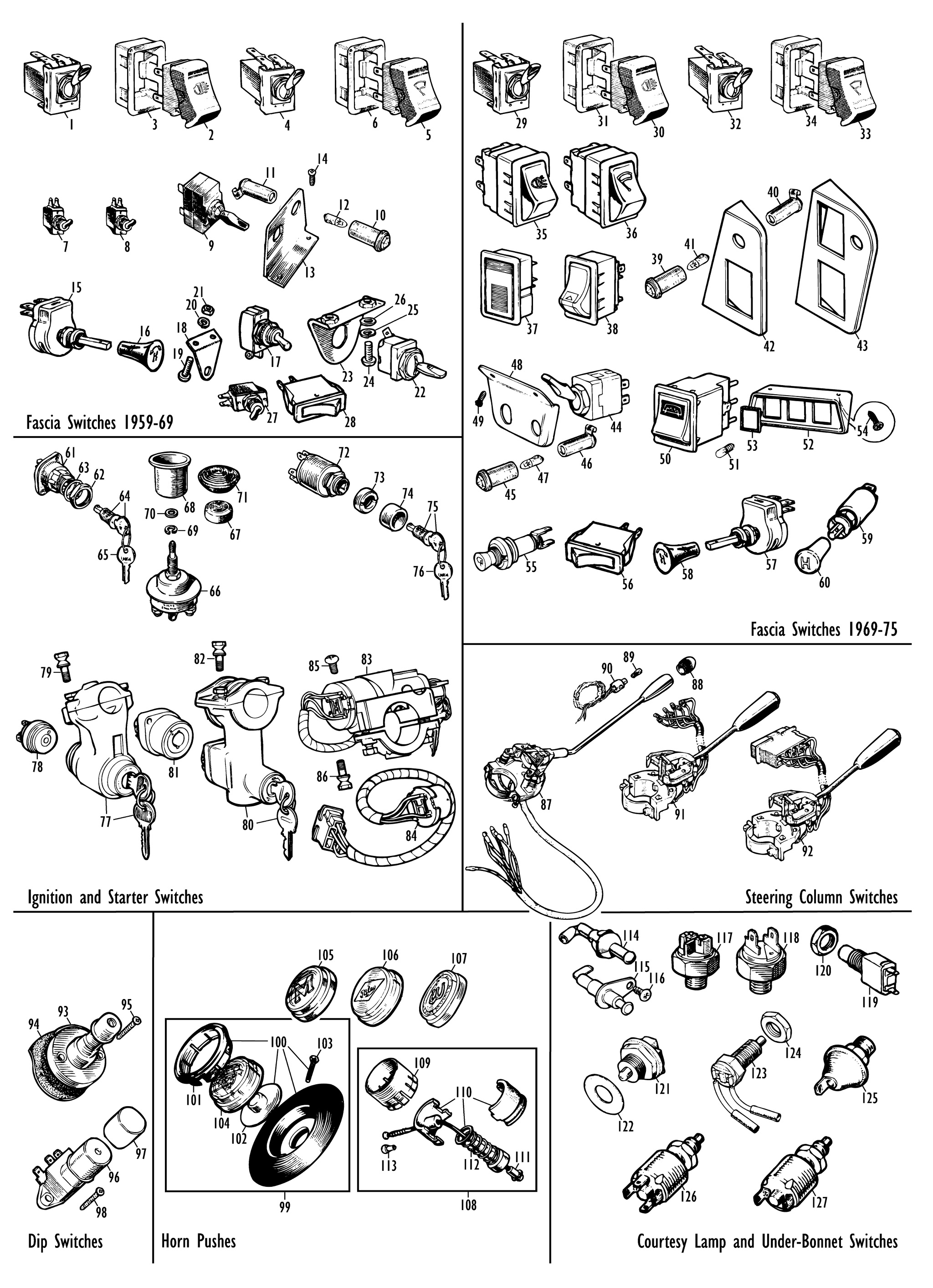

Fascia Switches and Warning Lamps
1959-69
Toggle Switches (Rocker Switches on Late Models for Selected Export Markets)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	1H9077	SWITCH, lighting, toggle type	1
2	13H6322	SWITCH, lighting, rocker type	1	1968-69, selected export markets.
3	BHA4832	ESCUTCHEON, rocker switch	1
4	2A9129	SWITCH, wipers, single speed, toggle type	1
5	13H6324	SWITCH, wipers, two speed, rocker type	1	1968-69, selected export markets.
6	BHA4832	ESCUTCHEON, rocker switch	1
7	5L31	SWITCH, panel lamp (instruments)	1	Not Cooper or Cooper S.
	BCA4312	SWITCH, panel lamp (instruments)	1	Cooper and Cooper S.
8	5L31	SWITCH, companion box lamps	1	Deluxe, 1959-62.
9	13H1909	SWITCH, heated rear window	1	Optional fitment.
10	BCA4778	BODY AND LENS, heated rear window lamp	1
11	13H1925	BULB HOLDER, heated rear window lamp	1
12	GLB281	BULB	1
13	24G4970	BRACKET, heated rear window switch and lamp	1
14	AB606031	SCREW, bracket to fascia	2
15	57H5260	SWITCH, rheostat, heater fan control	1	For recirculatory heaters.
16	13H250	KNOB, heater switch, marked 'H'	1
17	BCA4331	SWITCH, heater fan, toggle type	1	For accessory fresh air heater (with separate fan), 1959-60.
18	ADA3539	BRACKET, choke control	1	Use when heater switch occupies choke position on fascia.
19	PMZ308	SCREW, bracket to fascia	2
20	WL700101	WASHER, locking	2
21	FNZ103	NUT	1
22	5L193	SWITCH, heater fan, toggle type	1	For optional fresh air heater (with separate fan), 1961-63.
23	14A9989	BRACKET, heater fan switch	1
24	PMZ308	SCREW, bracket to fascia	2
25	WL700101	WASHER, locking	2
26	PWZ203	WASHER, plain	2
27	27H8235	SWITCH, heater fan, toggle type	1	Fitted to metal case fresh air heater, 1963-69.
28	YUF101090	SWITCH, heater fan, rocker type	1	Fitted to plastic case fresh air heater, 1968-69.

1969-75
Toggle Switches on Early Models; Rocker Switches (With Lucar Spade Terminals) on Later Models
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
29	1H9077	SWITCH, lighting, toggle type	1	1969-70.
30	13H6322	SWITCH, lighting, rocker type	1	1969-70, selected export markets.
31	BHA4832	ESCUTCHEON, rocker switch	1	1969-70.
32	2A9129	SWITCH, wipers, single speed, toggle type	1	1969-70.
33	13H6323	SWITCH, wipers, single speed, rocker type	1	1969-70, selected export markets.
	13H6324	SWITCH, wipers, two speed, rocker type	1	1969-70, selected export markets.
34	BHA4832	ESCUTCHEON, rocker switch	1	1969-70.
35	13H6342	SWITCH, lighting, rocker type	1	1970-75.
36	13H6343	SWITCH, wipers, single speed, rocker type	1	1970-75.
	13H6344	SWITCH, wipers, two speed, rocker type	1	1970-75.
37	13H5331	SWITCH, brake check light	1	Canada.
38	13H8691	SWITCH, hazard warning lights	1	Selected export markets.
39	BCA4780	BODY AND LENS, warning lamp, red	A/R
40	13H1925	BULB HOLDER, warning lamp	A/R
41	GLB281	BULB	A/R
42	CZH1439	BRACKET, hazard warning light switch and lamp	A/R
43	CZH1556	BRACKET, brake check and hazard warning switches	A/R	Canada.
44	13H1909	SWITCH, heated rear window, toggle type	1	Optional fitment, early models.
45	BCA4778	BODY AND LENS, heated rear window lamp, green	1
46	13H1925	BULB HOLDER, heated rear window lamp	1
47	GLB281	BULB	1
48	24G4970	BRACKET, heated rear window switch and lamp	1
49	AB606031	SCREW, bracket to fascia	2
50	YUF101680	SWITCH, heated rear window, rocker type	1	Optional fitment, later models.
51	GLB921	BULB, heated rear window switch	1
52	24G6617	BRACKET, heated rear window switch	1
53	AAM222	PLUG, unused holes in bracket	2
54	36052Z	SCREW, bracket to fascia	2
55	13H6595	SWITCH, electric windscreen washer	1	Optional fitment and selected export markets.
56	YUF101090	SWITCH, heater fan control	1	Saloons and Clubman Estate with fresh air heater.
57	57H5260	SWITCH, rheostat, adjustable heater fan control	1	Van and Pick Up with recirculatory heater, 1969-74.
58	13H250	KNOB, heater switch	1	Van and Pick Up with recirculatory heater, 1969-74.
59	27H9229	SWITCH, barrel, on-off heater fan control	1	Van and Pick Up with recirculatory heater, 1974-75.
	2H4841	SWITCH, barrel, on-off heater fan control	1	Alternative to 27H9229.
60	13H7901	KNOB, heater switch	1	Van and Pick Up with recirculatory heater, 1974-75.

Ignition and Starter Switches
Fascia Ignition and Floor Starter Switches, 1959-64 (Not Super, Cooper or Cooper S)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
61	13H251	SWITCH, ignition, fascia mounted	1
62	57H5131	NUT, switch securing	1	Included in switch assembly.
63	37H5138	WASHER, nut	1	Included in switch assembly.
64	24G1345	LOCK ASSEMBLY, ignition switch	1	Includes two keys.
65		KEY, replacement	A/R
Pre-cut 'FS' type keys (the most commonly used key type on Minis) are available. To order, simply quote the FS number from your existing keys (or alternatively from the lock barrel, if it has the number stamped on it); the number will be in the range from FS879 - FS955.

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
66	17H5260	SWITCH, starter, floor mounted	1
67	5L24	KNOB, floor starter switch	1
68	5L25	COVER, switch	1
69	LWZ206	WASHER, locking	1
70	2K7507	WASHER, fibre	1
71	5L245	COVER, dust, floor starter switch	1

Fascia Ignition/Starter Switch, 1964-71 (Super, Cooper and Cooper S, 1961-71)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
72	13H337	SWITCH, ignition and starter	1
73	47H5481	NUT, switch securing	1
74	24A1447	DISTANCE PIECE	1
75	24G1345	LOCK ASSEMBLY, ignition switch	1	Includes two keys.
76		KEY, replacement, see note above	A/R

Steering Lock with Ignition/Starter Switch, Selected Fitment 1963-71
(Lock faces driver)
There were two types of steering lock that could be fitted in this period: the earlier style accepts a round switch in the back of it, whereas the switch
on the later lock is attached by means of a diamond-shaped flange. In the event of the early lock and switch not being serviceable, the later lock
13H6459 can be used as a complete assembly to replace it.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
77	13H4861	STEERING LOCK ASSEMBLY	1	Early design; includes two keys.
78	27H6237	SWITCH, ignition and starter	1
79	37H4325	BOLT, shear	2
80	13H6459	STEERING LOCK ASSEMBLY	1	Later design; includes two keys.
81	37H5934	SWITCH, ignition and starter	1
82	37H5935	BOLT, shear	2

Steering Lock with Ignition/Starter Switch, Standard Fitment 1971-75
(Lock faces side)
At this time, Canada used a similar looking, but different, lock assembly. For details of available parts for this item, please contact us.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
83	18G8892	STEERING LOCK ASSEMBLY	1	Includes two keys.
84	37H6962	SWITCH, ignition and starter	1	Lowe and Fletcher (LF) manufacture.
	37H6544	SWITCH, ignition and starter	1	Alternative Magnatex manufacture.
85	37H6964	SCREW, securing switch	1	For Lowe and Fletcher switch.
	37H6545	SCREW, securing switch	1	For Magnatex switch.
86	51K4001	BOLT, shear	2

Steering Column Stalk Switches
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
87	2A6215	SWITCH, indicator	1	1959-67.
88	47H5200	LENS, warning lamp, green	1
89	GLB280	BULB	1
90	27H5384	BULB HOLDER	1
91	13H4543	SWITCH, indicator, horn, headlamp dip and flash	1	1967-69.
The 1969-75 version (13H7779) of this switch may be used as a replacement by removing the multiplug and replacing it with original style bullet connectors or Lucar spade connectors.

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
92	13H7779	SWITCH, indicator, horn, headlamp dip and flash	1	1969-75.

Headlamp Dip Switches
1959-67
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
93	502087A	SWITCH, headlamp dip, round	1	1959-62.
94	57H5591	GASKET, dip switch	1
95	AB610081	SCREW, dip switch to floor	2
96	RTC432A	SWITCH, headlamp dip, rectangular	1	1962-67.
97	C22276	CAP, rubber, non-slip	1
98	PTZ1003	SCREW, dip switch to floor	2

Horn Pushes
1959-67
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
99	2A6214	HORN PUSH ASSEMBLY, with Austin badge	1
	BCA4466	HORN PUSH ASSEMBLY, with Morris badge	1
100	27H6943	HORN PUSH ASSEMBLY, without badge	1
101	7H5468	RING, badge retaining	1	Included in horn push assembly.
102	27H5397	HORN CONTACT, top	1	Included in horn push assembly.
103	AJD2246C	SCREW, horn push to steering wheel	1	Included in horn push assembly.
104	47H5086	BADGE, horn push, Austin logo	1
105	37H3234	BADGE, horn push, Morris logo	1
106	37H3235	BADGE, horn push, Riley logo	1
107	37H3236	BADGE, horn push, Wolseley logo	1
108	BCA4505	SLIP RING ASSEMBLY	1
109	27H5401	RING, slip	1	Included in slip ring assembly.
110	57H5472	ROTOR ASSEMBLY	1	Included in slip ring assembly.
111	13H2899	CIRCLIP	1	Included in slip ring assembly.
112	47H5541	SPRING, contact	1	Included in slip ring assembly.
113	47H5542	CONTACT	1	Included in slip ring assembly.

Courtesy Lamp and Under-Bonnet Switches
Door, Bonnet and Boot Lid Switches
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
114	13H2182	SWITCH, door, courtesy lamp	2	1964-72.
115	13H9481	SWITCH, door, courtesy lamp	2	1972-75.
116	AB606031	SCREW, switch to door A post	A/R

Brake, Reversing and Oil Light Switches
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
117	2A5740	SWITCH, brake light, hydraulic, with screw terminals	1	1959-63.
The following 13H1731 switch may be used to replace the screw terminal switch by fitting a pair of 1/4" Lucar connectors (RTC220A) to the wiring.

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
118	13H1731	SWITCH, brake light, hydraulic, with Lucar terminals	1	1963-75, single line brakes.
119	13H3735	SWITCH, brake light, mechanical	1	1969-75, dual line brakes.
120	BMK1903A	NUT, locking mechanical brake light switch	1	1969-75, dual line brakes.
121	GAE131	SWITCH, reversing lights	1	For remote gearchange models, 1961-73.
122	2K7914	WASHER, fibre, switch spacing	A/R
123	GAE191	SWITCH, reversing lights	1	For rod gearchange models, 1973-75; automatic models, 1966 on.
124	22A1613	NUT, locking reversing light switch	1
125	GPS133	SWITCH, oil pressure warning light	1

Neutral Start Inhibitor Switch
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
126	13H4007	SWITCH, gearbox, starter inhibitor and reverse lights	1	Automatic models, 1964-65.
127	13H5045	SWITCH, gearbox, starter inhibitor	1	Automatic models, 1966 on.
