Companion Boxes
Companion box design depended on door type, seatbelt mounting type (if any) and ashtray fitment.

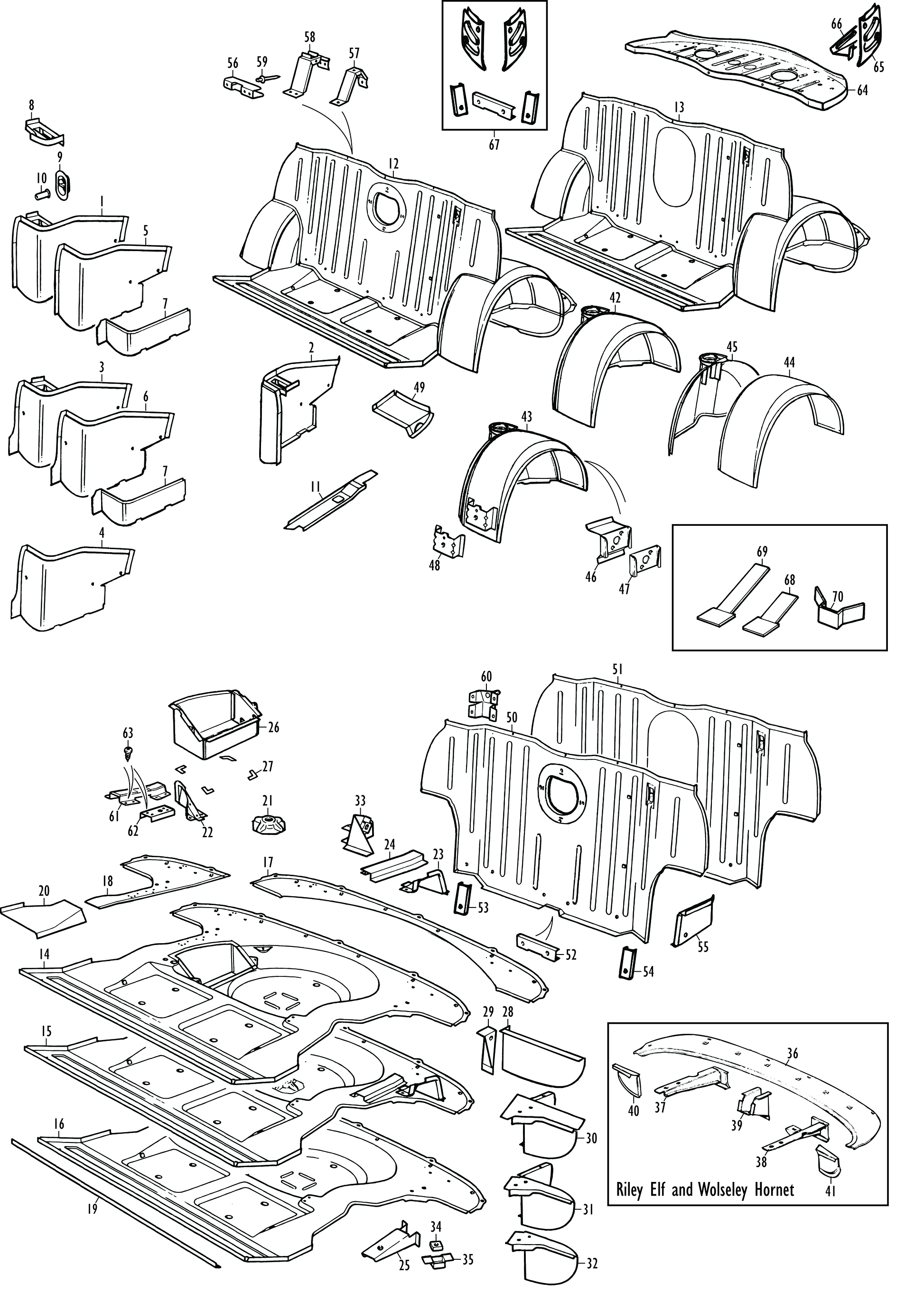

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	14A6494	COMPANION BOX ASSY., RH, with ashtray	1	For externally hinged door models.
2	14A6495	COMPANION BOX ASSY., LH, with ashtray	1	For externally hinged door models.
3	ALA6482	COMPANION BOX ASSY., RH, with ashtray	1	For internally hinged door models.
	ALA6483	COMPANION BOX ASSY., LH, with ashtray	1	For internally hinged door models.
4	ADO360020	COMPANION BOX ASSY., RH, no ashtray	1	For later internally hinged door models.
	ADO360030	COMPANION BOX ASSY., LH, no ashtray	1	For later internally hinged door models.
5	REPAN151	COMPANION BOX PANEL, RH	1	For externally hinged door models; non-genuine.
	REPAN152	COMPANION BOX PANEL, LH	1	For externally hinged doors models; non-genuine.
6	ALA5672	COMPANION BOX PANEL, RH	1	For internally hinged door models.
	ALA5673	COMPANION BOX PANEL, LH	1	For internally hinged door models.
	REPAN206	COMPANION BOX PANEL, RH	1	For internally hinged door models.
	REPAN205	COMPANION BOX PANEL, LH	1	For internally hinged door models.
7	REPAN118	COMPANION BOX REPAIR, RH	1	Non-genuine.
	REPAN119	COMPANION BOX REPAIR, LH	1	Non-genuine.
8	REPAN127	BRACKET, companion box ashtray, RH	1	Non-genuine.
	REPAN128	BRACKET, companion box ashtray, LH	1	Non-genuine.
9	CZH3175	BRACKET, seat belt mounting	2	Not 1994 on models.
	ADU360160	BRACKET, seat belt mounting, RH	1	1994 on.
	ADU360170	BRACKET, seat belt mounting, LH	1	1994 on.
10	CZH216	TUBE, reinforcement	2	Included in mounting brackets.
11	14A8994	STIFFENER, inner sill, RH	1	Includes later specification piercing.
	14A8995	STIFFENER, inner sill, LH	1	Includes later specification piercing.

Seat Pan and Rear Floor Assembly
Rationally, there were 4 basic rear floor designs, with detail variations of each. The brackets and fixings for the Cooper boot floor board or the optional RH fuel tank may be purchased separately.
1959-67: Fuel tank support channel above boot floor, long angle bracket with tank securing nut under floor, wide rear valance closing panels and spare wheel mounting boss.
1967-75: Fuel tank support channel above boot floor, tank securing weld nut under floor, narrow rear valance closing panels, bump stop reinforcements added, no spare wheel mounting boss (except very early MkIIs which had the boss - purchase if necessary). Eventually seat braces rationalised down to one item, fitted with rear seat belt mounting points whether rear seat belts fitted or not.

1976-94: New fuel tank mounting system, with piercings added later for SPi fuel injection models (plug or use as appropriate). ‘Rotodip’ hole in seat brace panel later deleted. Rear seat belt mountings and reinforcements eventually standardised for all markets.

1994 on: Further piercings for fuel injection system; windscreen washer bottle bracket moved to RH rear wheel arch - no space left in the engine compartment!
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
12	14A6492	REAR FLOOR COMPLETE ASSEMBLY	1	1959-67.
	CZH536	REAR FLOOR COMPLETE ASSEMBLY	1	1967-75.
13	AFB36001	REAR FLOOR COMPLETE ASSEMBLY	1	1976-94.
	AFB360040	REAR FLOOR COMPLETE ASSEMBLY	1	1994 on; includes wheel arch washer bottle mountings.
14	HMP441016	REAR FLOOR AND BATTERY BOX	1	May be used on all models; includes fuel injection system piercings.
15	14A7237	REAR FLOOR ASSEMBLY with tank and subframe mountings	1	1959-67.
	CZH257	REAR FLOOR ASSEMBLY with tank and subframe mountings	1	1967-75.
	CZH3254	REAR FLOOR ASSEMBLY with tank and subframe mountings	1	1976 on.
16	ALA5513	REAR FLOOR PANEL	1	May be used on all models; includes fuel injection system piercings.
17	REPAN017	REAR FLOOR REPAIR, full width, detailed	1	Non-genuine.
	REPAN016	REAR FLOOR REPAIR, full width, ‘budget’	1	Non-genuine.
18	REPAN046	REAR FLOOR REPAIR, RH, detailed	1	Non-genuine.
	REPAN047	REAR FLOOR REPAIR, LH, detailed	1	Non-genuine.
	REPAN044	REAR FLOOR REPAIR, RH, ‘budget’	1	Non-genuine.
	REPAN045	REAR FLOOR REPAIR, LH, ‘budget’	1	Non-genuine.
19	14A6672	REINFORCEMENT, seat pan edge	1
20	REPAN050	SEAT PAN REPAIR, RH	1	Non-genuine.
	REPAN051	SEAT PAN REPAIR, LH	1	Non-genuine.
21	88G479	BOSS, spare wheel clamp	1	1959-68.
	REPAN007	BOSS, spare wheel clamp	1	1959-68; non-genuine.
22	14A6609	REINFORCEMENT, floor to wheel arch, RH	1
23	14A6610	REINFORCEMENT, floor to wheel arch, LH	1
24	14A6867	CHANNEL, fuel tank support	1	1959-75; standard LH tank only.
25	14A6565	REINFORCEMENT, tank mounting	1	1959-67.
26	14A6499	BATTERY BOX ASSEMBLY	1
	14A6499P	BATTERY BOX ASSEMBLY	1	Non-genuine.
27	REPAN198	REINFORCEMENT, battery box to floor	4	Non-genuine.
28	14A6605	VALANCE CLOSING PANEL, RH	1	1959-67.
	14A6606	VALANCE CLOSING PANEL, LH	1	1959-67.
29	14A6607	REINFORCEMENT, rear pillar plate, RH	1	1959-64; not for use on hydrolastic suspension fitted models.
	14A6608	REINFORCEMENT, rear pillar plate, LH	1	1959-64; not for use on hydrolastic suspension fitted models.
30	HMP441020	VALANCE CLOSING COMPLETE ASSY., RH	1	1967 on; with floor reinforcement for subframe mounting.
	HMP441021	VALANCE CLOSING COMPLETE ASSY., LH	1	1967 on; with floor reinforcement for subframe mounting.
31	ALA5528	VALANCE CLOSING ASSEMBLY, RH	1	1967 on.
	ALA5529	VALANCE CLOSING ASSEMBLY, LH	1	1967-75; with fuel tank mounting nut.
	ALA8623	VALANCE CLOSING ASSEMBLY, LH	1	1976 on; no fuel tank mounting nut.
32	ALA5524	VALANCE CLOSING PANEL, RH	1	1967 on; will fit earlier models.
	ALA5525	VALANCE CLOSING PANEL, LH	1	1967 on; will fit earlier models.
33	REPAN018	ANCHOR BRACKET, fuel tank mounting	1	1976 on.
34	NZS105	NUT, caged, battery earth lead mounting	1
35	PNR105	CAGE, nut	1
36	ALA4791	FLOOR EXTENSION, rear	1	Riley Elf and Wolseley Hornet.
37	ALA4792	REINFORCEMENT, rear floor, RH	1	Riley Elf and Wolseley Hornet.
38	ALA4793	REINFORCEMENT, rear floor, LH	1	Riley Elf and Wolseley Hornet.
39	ALA4699	REINFORCEMENT, rear floor, centre	1	Riley Elf and Wolseley Hornet.
40	ALA4678	VALANCE CLOSING PANEL, RH	1	Riley Elf and Wolseley Hornet.
41	ALA4679	VALANCE CLOSING PANEL, LH	1	Riley Elf and Wolseley Hornet.

Rear Wheel Arches and Seat Brace
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
42	14A9558	REAR WHEEL ARCH ASSEMBLY, RH	1	Without rear seat belt mounting.
	14A9559	REAR WHEEL ARCH ASSEMBLY, LH	1	Without rear seat belt mounting.
43	ADN360040	REAR WHEEL ARCH ASSEMBLY, RH	1	With rear seat belt mounting; includes 1994 on washer bottle bracket.
	ADN360050	REAR WHEEL ARCH ASSEMBLY, LH	1	With rear seat belt mounting.
The wheel arches listed here for rear seat belt fitment do not have appropriate mountings for the lap belts fitted to Minis in the 1960s for North America and some European markets.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
44	14A6617	REAR WHEEL ARCH OUTER PANEL, RH	1
	14A6618	REAR WHEEL ARCH OUTER PANEL, LH	1
45	HMP441010	REAR WHEEL ARCH INNER ASSEMBLY, RH	1	Includes shock absorber mounting.
	HMP441011	REAR WHEEL ARCH INNER ASSEMBLY, LH	1	Includes shock absorber mounting.
46	ADU36002	BRACKET ASSEMBLY, washer bottle	1	1994 on.
47	CZG1496	BRACKET ONLY, washer bottle	1	1994 on.
48	AFU360040	BRACKET, seat belt to arch, RH	1	1997 on. Will fit earlier models.
	AFU360050	BRACKET, seat belt to arch, LH	1	1997 on. Will fit earlier models.
49	14A6611	CLOSING PANEL, heelboard to arch, RH	1
	14A6612	CLOSING PANEL, heelboard to arch, LH	1
50	ALA5523	SEAT BRACE ASSY., with ‘Rotodip’ hole	1	Early condition; no seat belt mountings.
51	24A2228	SEAT BRACE ASSY., no ‘Rotodip’ hole	1	Later condition, up to 1990 approx.
	ADW36001	SEAT BRACE ASSY., no ‘Rotodip’ hole	1	Later condition, 1990 approx. on.
	24A2204	SEAT BRACE PANEL, no ‘Rotodip’ hole	1	Later condition.
52	24A2205	REINFORCEMENT, seat belt mountings	1	Optional to 1969; standard from 1969.
53	CZH586	REINFORCEMENT, seat belt mount, RH	1	1969 on; with nut.
	CZH330	REINFORCEMENT, seat belt mount, RH	1	1969 on; without nut.
54	CZH587	REINFORCEMENT, seat belt mount, LH	1	1969 on; with nut.
	CZH331	REINFORCEMENT, seat belt mount, LH	1	1969 on; without nut.
55	ALA5532	BRACKET, bump stop reinforcement, RH	1	1967 on.
	ALA5533	BRACKET, bump stop reinforcement, LH	1	1967 on.

Additional Equipment Fixings
Cooper Boot Floor Board and Optional RH Fuel Tank Mounting Brackets
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
56	14A9780	RETAINER, floor board, front	2
57	14A9781	BRACKET, floor board support, rear sides	2	For standard spare wheel stowage.
	REPAN199	BRACKET, floor board support, rear sides	2	For wide spare wheel stowage.
58	14A9782	BRACKET, floor board, rear centre	1	For standard spare wheel stowage.
	REPAN200	BRACKET, floor board, rear centre	1	For wide spare wheel stowage.
59	RA608123	RIVET, brackets to body	14
60	ALA7905	ANCHOR BRACKET, RH tank strap	1
61	21A1329	CHANNEL ASSY., RH tank support	1	Includes neoprene seating strip.
	21A1330	CHANNEL, RH tank support	1
62	21A1335	BRACKET, reinforcement, RH tank strap	1
63	PTZ803	SCREW, channel and bracket to floor	12	8 for channel, 4 for bracket.

Rear Parcel Shelf
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
64	14A6564	REAR PARCEL SHELF ASSEMBLY, latest spec. (with 2 large speaker holes)	1	Includes striker bracket for boot lock.
65	ALJ360120	REAR SEAT BELT MOUNT, C post, RH	1	1997 on. Will fit earlier models.
	ALJ360130	REAR SEAT BELT MOUNT, C post, LH	1	1997 on. Will fit earlier models.
66	ALR360400	REINFORCEMENT, rear belt mount, RH	1	1997 on.
	ALR360410	REINFORCEMENT, rear belt mount, LH	1	1997 on.

Rear Seat Belt Mounting Kit
In order to fit rear seat belts to pre-1995 Minis not already so equipped, mounting points will have to be fitted. Somerford Mini takes the strain out of working out what needs to be welded to the car's body with this money-saving kit including all required original factory mounting brackets (seat brace sides x 2, seat brace centre and C post x 2). Use of these brackets enables two rear seat belts to be fitted without the need to alter or change interior trim in the rear of your Mini.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
67	SBMK001	REAR SEAT BELT MOUNTING KIT	1	Includes all required original mountings ready to weld into car body.

Wiring Tags and Service Clips
For an explanation of wiring tags, please see the text in the ‘Dash Assemblies - All Models’ section.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
68	CW100110	WIRING TAG, short	A/R
69	CW100120	WIRING TAG, long	A/R
70	ALA5537	SERVICE CLIP, rear floor	1
