Rivets
Rivets
Rivets on the Mini fall into three types: the almost ubiquitous pop rivet, the semi-tubular rivet (on which the tube is swaged out upon fixing the rivet in place) and the bifurcated rivet (on which the legs are splayed upon fixing). Most open end pop rivets are of the ‘break stem’ type, where part of the mandrel’s stem along with its head is left in the rivet after fixing. One is a break head type, where the entire mandrel, including the head, falls away.

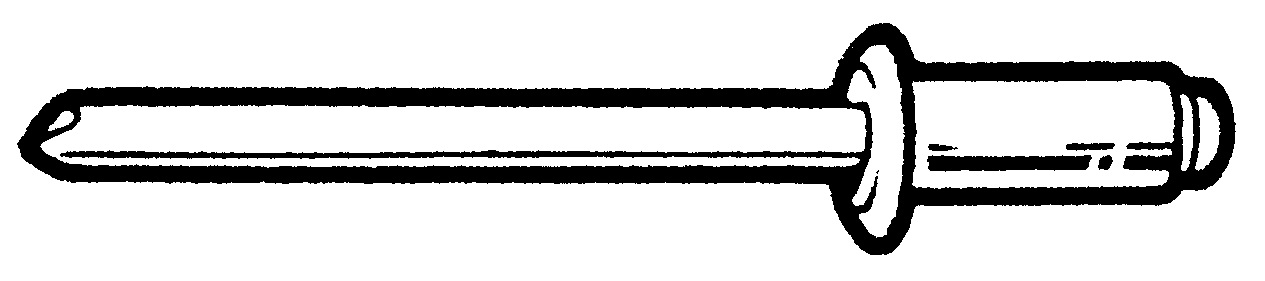

| Open End Dome Head Pop Rivets |  |
|||
| Part No | Rivet Head Type | Nominal Dia. | Rivet Length | Finish |
| RA608076 | Dome head | 1/8" | 3/16" | Natural |
| RA608123 | Dome head | 1/8" | 15/64" | Natural |
| RA608183 | Dome head | 1/8" | 9/32" | Natural |
| RA608185 | Dome head | 1/8" | 9/32" | Black |
| RA608253 | Dome head | 1/8" | 11/32" | Natural |
| DMP2835 | Dome head | 1/8" | 11/32" | Break head type |
| DAP1023 | Dome head | 5/32" | 15/64" | Natural |
| DAP1045 | Dome head | 5/32" | 29/64" | Natural |
| ADU8629 | Dome head | 5/32" | 1/2" | Black |
| RA612313 | Dome head | 3/16" | 1/2" | Natural |
| RY612535 | Dome head | 3/16" | 3/4" | Black |
| ADU4278 | Dome head | 3/16" | 1" | Zinc |

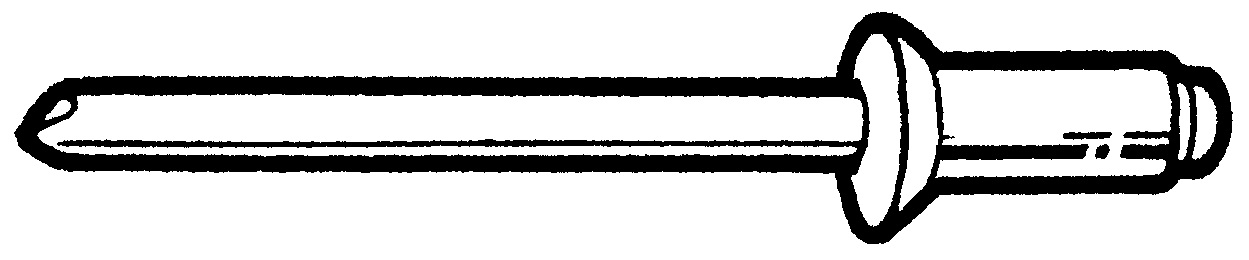

| Open End Countersunk Head Pop Rivets |  |
|||
| Part No | Rivet Head Type | Nominal Dia. | Rivet Length | Finish |
| RJ612236 | C/sunk head | 3/16" | 23/64" | Natural |
| RJ612376 | C/sunk head | 3/16" | 37/64" | Natural |

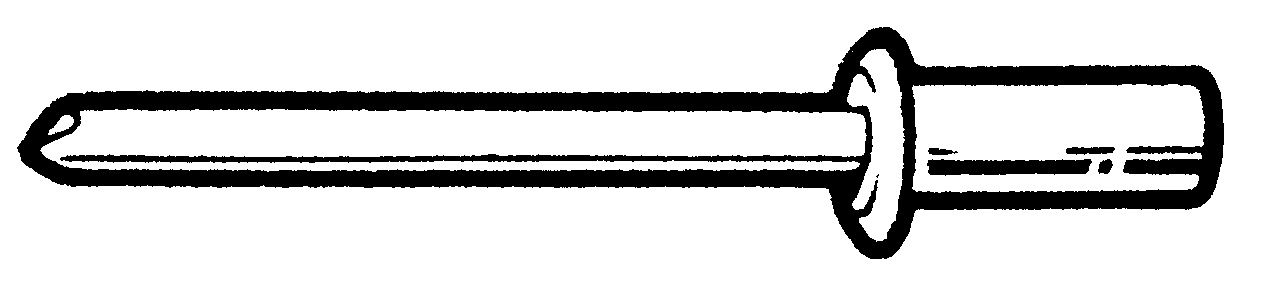

| Imex Sealed End Pop Rivets |  |
|||
| Part No | Rivet Head Type | Nominal Dia. | Rivet Length | Finish |
| GHF600 | Dome head | 1/8" | 5/16" | Natural |
| RU608185 | Dome head | 1/8" | 3/8" | Black |
| RU612123 | Dome head | 3/16" | 5/16" | Natural |

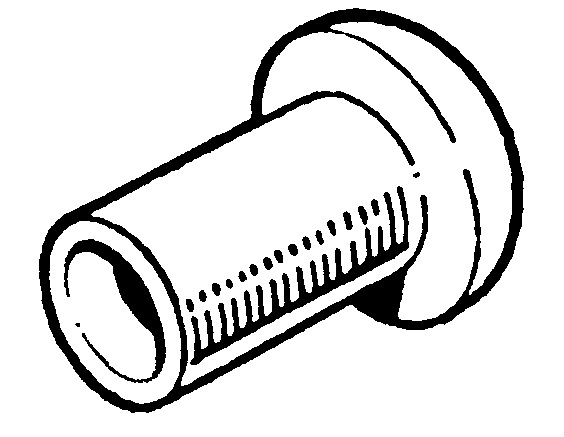

| Semi-Tubular Rivets |  |
|||
| Part No | Rivet Head Type | Nominal Dia. | Rivet Length | Finish |
| RT612241 | Oval head | 3/16" | 3/8" | Copper plated |

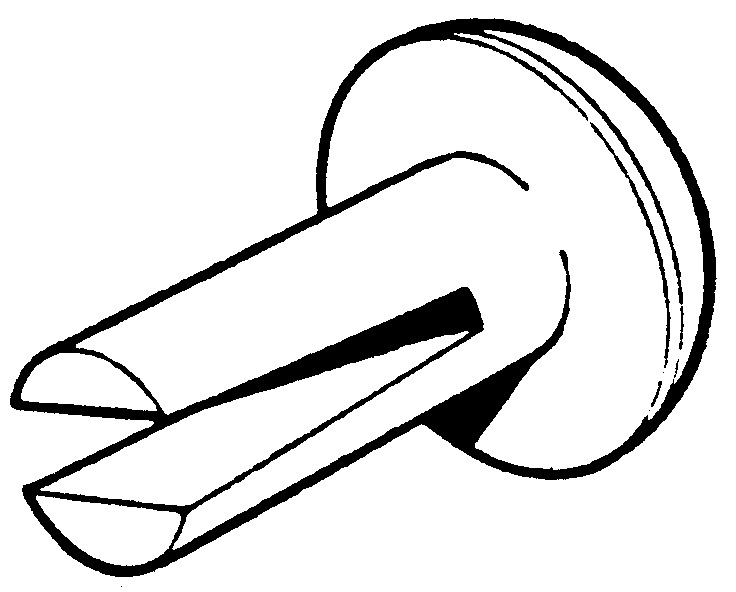

| Bifurcated Rivets |  |
|||
| Part No | Rivet Head Type | Nominal Dia. | Rivet Length | Finish |
| RB608081 | Oval head | 0.121" (No 11) | 1/2" | Copper plated |
