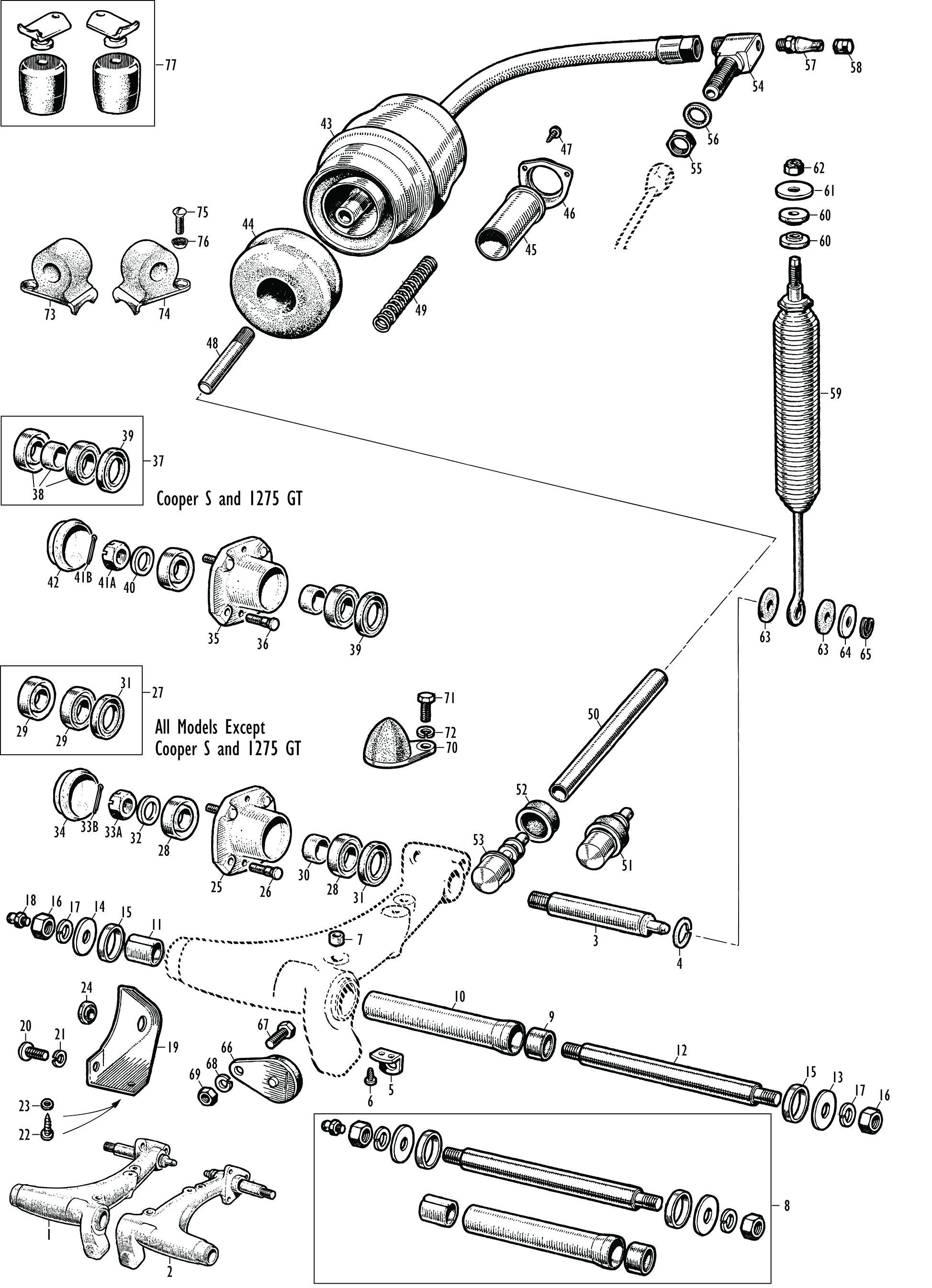

Rear suspension - hydrolastic

Radius Arms
All Saloons 1964-69; Cooper S Mk III, Clubman Saloon and 1275 GT 1969-71
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	21A1485	RADIUS ARM ASS'Y, RH, with stub axle, new	1
	21A1485R	RADIUS ARM ASS'Y, RH, with stub axle, reconditioned, exchange	1
2	21A1489	RADIUS ARM ASS'Y, LH, with stub axle, new	1
	21A1489R	RADIUS ARM ASS'Y, LH, with stub axle, reconditioned, exchange	1
3	21A1486	STUB AXLE, RH	1	Included in radius arm assemblies.
	21A1490	STUB AXLE, LH	1	Included in radius arm assemblies.
4	2A7352	CIRCLIP, stub axle retaining	2	Included in radius arm assemblies.
5	21A1375	BRACKET, brake pipe	2	Included in radius arm assemblies.
6	51K3274	SCREW, brake pipe bracket to radius arm	4	Included in radius arm assemblies.
7	LBS507	BUSH, handbrake quadrant pivot	2
8	GSV1125	REBUILD KIT, radius arm pivot	2
9	ATJ4098	BEARING, needle roller, radius arm inner end	2	Included in radius arm assemblies and rebuild kit.
10	21A396	TUBE, lubricating, original steel	2	Nylon equivalent now supplied in radius arm assemblies and rebuild kit.
11	2A7325	BUSH, radius arm outer end	2	Included in radius arm assemblies and rebuild kit.
12	ACA9099	SHAFT, radius arm pivot	2	Included in rebuild kit.
13	ACA9302	WASHER, thrust, radius arm inner end	2	Included in rebuild kit.
14	2A7324	WASHER, thrust, radius arm outer end	2	Included in rebuild kit.
15	2A7327	SEALING RING, rubber	4	Included in rebuild kit.
16	FNZ508	NUT, shaft retaining	4	Included in rebuild kit.
17	LWZ208	WASHER, locking	4	Included in rebuild kit.
18	LN10051	GREASE NIPPLE, straight	2	Included in rebuild kit.
19	14A6615	SHROUD, radius arm, RH	1	1964-68.
	14A6616	SHROUD, radius arm, LH	1	1964-68.
20	PMZ308	SCREW, shroud to body	2
21	LWZ203	WASHER, locking	2
22	PTZ1003	SCREW, self tapping, shroud to body	2
23	PWZ203	WASHER, plain	4
24	14A7091	PLUG, radius arm shroud	2

Rear Hubs
Parallel Bearing Hubs
All Models Except Cooper S and 1275 GT
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
25	21A2023	HUB ASSEMBLY	2	Not Cooper.
	21A1389	HUB ASSEMBLY	2	Cooper.
26	21A2064	STUD, wheel	8	Included in 21A2023 hub assembly.
	ATA7085	STUD, wheel	8	Included in 21A1389 hub assembly.
27	GHK1352	WHEEL BEARING KIT, with seal	2
28	GHB116	WHEEL BEARING, original type without integral spacer	4
29	GHB212	WHEEL BEARING, later type with integral spacer	4	Included in GHK1352 kit.
30	2A7354	SPACER, for original type wheel bearings	2
31	GHS102	SEAL, oil, hub	2	Included in GHK1352 kit.
32	BTA672	WASHER, stub axle	2
33A	NL610041	NUT, hub to stub axle, RH (RH thread)	1
	FNN2410	NUT, hub to stub axle, LH (LH thread)	1
33B	ZPS415	SPLIT PIN, hub nut	2
34	ATB4098	CAP, grease	2

Tapered Bearing Hubs
Cooper S and 1275 GT
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
35	21A1277	HUB ASSEMBLY	2
36	21A1278	STUD, wheel	8	Included in 21A1277 hub assembly.
37	GHK1548	WHEEL BEARING KIT, with seal	2
	GHK1548P	WHEEL BEARING KIT, with seal	2	Non-genuine.
38	GHB147	WHEEL BEARING KIT, with spacer	2	Included in GHK1548 kit.
39	GHS102	SEAL, oil, hub	2	Included in GHK1548 kit.
	GHS134	SEAL, oil, hub, steel reinforced original	2	May be replaced by GHS102.
40	BTA672	WASHER, stub axle	2
41A	NL610041	NUT, hub to stub axle, RH (RH thread)	1
	FNN2410	NUT, hub to stub axle, LH (LH thread)	1
41B	ZPS415	SPLIT PIN, hub nut	2
42	ATB4098	CAP, grease	2

Hydrolastic Suspension
All Saloons 1964-69; Cooper S Mk III, Clubman Saloon and 1275 GT 1969-71
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
43	21A2008	DISPLACER UNIT, including hose and dust excluder	2	Not Cooper S, 1275 GT or Police models.
	21A2014	DISPLACER UNIT, including hose and dust excluder	2	Cooper S models.
	21A2010	DISPLACER UNIT, including hose and dust excluder	2	1275 GT and Police models.
44	21A1496	DUST EXCLUDER, displacer	2
45	21A1515	SLEEVE	2
46	21A1757	RETAINER, sleeve	2
47	13H3355	SCREW, retainer	6
48	21A1704	DOWEL, displacer unit to strut	2
49	4G7809	SPRING, compression	2
50	21A2276	STRUT	2
51	GSV1118	KNUCKLE JOINT ASSEMBLY	2
52	21A425	COVER, dust	2	Included in knuckle joint assembly.
53	21A423	SOCKET, joint	2	Included in knuckle joint assembly.
54	21A1519	UNION, hose to Hydrolastic pipe	2
55	17H4574	NUT, securing union	2
56	LWZ410	WASHER, shakeproof	2
57	13H1705	VALVE ASS'Y, system charge and discharge	2
58	13H4714	CAP, valve	2	Included in valve assembly.
59	21A1806	SPRING, helper	2
60	12A1358	BUSH, rubber, helper spring upper mounting	4
61	53K3446	WASHER, special	2
62	LNZ105	NUT, Aerotight	2
63	21A1493	BUSH, felt, helper spring lower mounting	4
64	PWZ306	WASHER, plain	2
65	13H2193	CIRCLIP, helper spring lower mounting	2
66	21A1517	BUFFER, rebound	2
67	SH605051	SCREW, buffer securing	2
68	LWZ205	WASHER, locking	2
69	FNZ105	NUT	2
70	21A1520	BUFFER, bump stop	2	UK and most export markets.
71	SH605051	SCREW, buffer securing	2
72	LWZ205	WASHER, locking	2
73	21A1728	BUFFER, bump stop, RH	1	Export markets with headlamp alignment regulations.
74	21A1729	BUFFER, bump stop, LH	1	Export markets with headlamp alignment regulations.
75	RMZ510	SCREW, buffer securing	2
76	6K9012	WASHER, shakeproof	2
77	C-AJJ3313	BUMP STOP KIT, uprated	1	For fast road or competition use.
