Rear seats - estates and van : Somerford Mini

Estate and Van Rear Seat Cover Kits
Important Notes for Ordering Seat Cover Kits:
Please state model and year of your Mini, plus the colour(s) you require along with the part numbers when placing your order. This will help us to make sure you receive exactly the seat covers you need.
Note that because of the complex nature of seat colours and material types, only very popular items and colours (usually black) are held in stock - all others will be obtained to order, for which there will be a short lead time.
Full details of the materials and patterns used for each style of rear seat are described in the front seat sections.
1960-61 Mk I Traveller and Countryman
The following vinyl colour schemes are available: Black/Grey Fleck, Porcelain Green/Grey Fleck, Tartan Red/Grey Fleck, Powder Blue/Grey Fleck, Spanish Red/Grey Fleck, Spanish Blue/Grey Fleck.

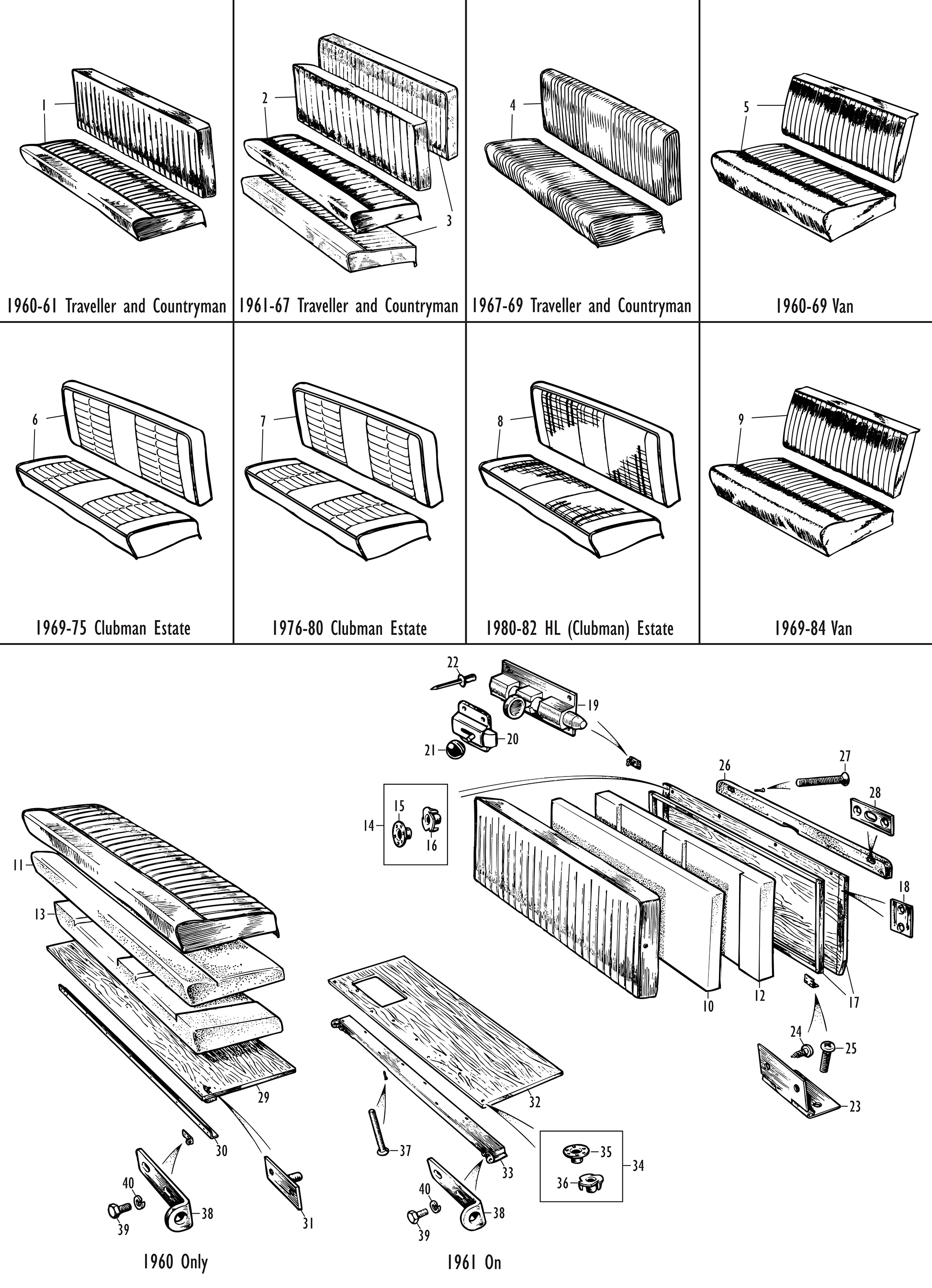

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	SC3111	REAR SEAT COVER KIT (state colour)	1	With stitched pleats.

1961-67 Mk I Traveller and Countryman
The following vinyl colour schemes are available: Cumulus Grey, Dove Grey, Porcelain Green, Powder Blue, Tartan Red.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
2	SC3057	REAR SEAT COVER KIT (state colour)	1	With stitched pleats.
3	SC3056	REAR SEAT COVER KIT (state colour)	1	With heat welded pleats.

1967-69 Mk II Traveller and Countryman
The following vinyl colour schemes are available: Black, Tartan Red, Cumulus Grey.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
4	SC3045	REAR SEAT COVER KIT (state colour)	1

1960-69 Van with Wooden Load Floor (Optional)
A black rear seat cover kit is available, to special order only.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
5	SC3057A	REAR SEAT COVER KIT, Black	1	With stitched pleats.

1969-75 Clubman Estate
The following vinyl colour schemes are available: Black, Navy.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
6	SC3246	REAR SEAT COVER KIT (state colour)	1

1976-80 Clubman Estate
The following vinyl colour schemes (to replace the nylon originals) are available: Black, Navy, Beige.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
7	SC3246	REAR SEAT COVER KIT (state colour)	1

1980-82 HL (Clubman) Estate
The following plaid cloth colour schemes are available: Golden Tan, Blue.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
8	SC3319	REAR SEAT COVER KIT (state colour)	1

1969-84 Van with Wooden Load Floor (Optional)
A black rear seat cover kit is available, to special order only.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
9	SC3056A	REAR SEAT COVER KIT, Black	1	With heat welded pleats.

Estate and Van Rear Seat Components
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
10	SF674	FOAM, rear seat squab	1	1960-67, Mk I Traveller and Countryman. 1960-84, Vans.
11	SF679	FOAM, rear seat cushion	1	1960-67, Mk I Traveller and Countryman. 1960-84, Vans.
12	SF675	FOAM, rear seat squab	1	1967-82, Mk II Traveller and Countryman, Clubman and HL Estates.
13	SF676	FOAM, rear seat cushion	1	1967-82, Mk II Traveller and Countryman, Clubman and HL Estates.
14	88G348	T NUT KIT, seat squab board	8
15	14A7684	T NUT, male	8	Included in T nut kit.
16	14B2876	T NUT, female	8	Included in T nut kit.
17	14A7249	BOARD AND FRAME ASS'Y, seat squab	1
18	14A8657	PLATE, bearing, brass, seat squab catch	2
19	14A7267	BOLT, seat squab catch	2	1960-75.
20	CZH4084	LOCK, seat squab catch	2	1976 on.
21	CZH4076	KNOB, lock	2	1976 on.
22	DAP1045	RIVET, bolt to body	8
23	14B3500	HINGE, seat squab	2
24	PTZ1204	SCREW, self tapping, hinge to body	4
25	PMZ408	SCREW, hinge to seat squab board	4
26	CZH4194	TOP RAIL ASSEMBLY, painted, Black	1	1976 on. Covered with trim coloured vinyl, 1960-75.
27	CMP422	SCREW, top rail to seat squab board	4
28	14A7428	PLATE, location	2

From the end of 1960 the battery was relocated from under the luggage floor to under the rear seat. This necessitated new designs of seat cushion board and support rail to give the battery clearance. At the same time, the screws attaching the board were strengthened from wood screws to set screws and T nuts, and the two pegs locating the seat squab when it was folded down were made an integral part of the support rail:
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
29	14A7250	BOARD, seat cushion	1	1960 models with battery under luggage floor.
30	14A7422	SUPPORT RAIL, seat cushion	1	1960 models with battery under luggage floor.
31	14A7421	PEG, locating folded seat squab	2	1960 models with battery under luggage floor.
32	14A9051	BOARD, seat cushion	1	1961 on models with battery under rear seat.
33	14A8208	SUPPORT RAIL, seat cushion	1	1961 on models with battery under rear seat.
34	88G348	T NUT KIT, seat cushion board	8	1961 on models with battery under rear seat.
35	14A7684	T NUT, male	8	Included in T nut kit.
36	14B2876	T NUT, female	8	Included in T nut kit.
37	PMZ410	SCREW, board to support rail	8	1961 on models with battery under rear seat.
38	14A7425	BRACKET, seat cushion pivot	2
39	SH604041	SCREW, pivot bracket to support rail	4
40	LWZ204	WASHER, locking	4
