Rear lamps

Indicator, Stop and Tail Lamp Assemblies
MkI Saloon, 1959-67

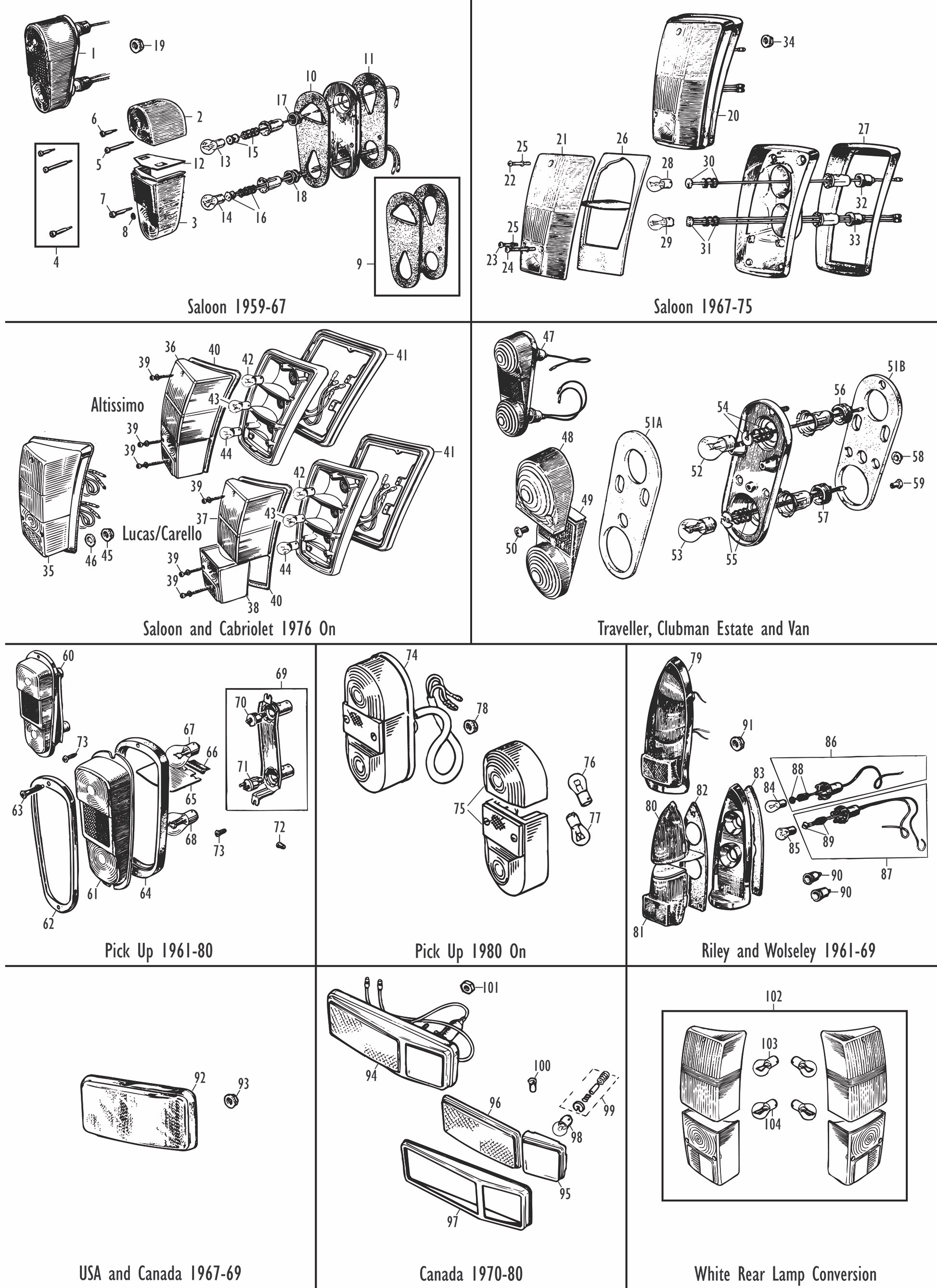

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	13H223	REAR LAMP ASSY., indicator, stop and tail, RH	1	With amber indicator lens.
	13H222	REAR LAMP ASSY., indicator, stop and tail, LH	1	With amber indicator lens.
2	47H5362	LENS, indicator, amber, RH	1
	47H5355	LENS, indicator, amber, LH	1
	47H5479	LENS, indicator, red, RH	1
	47H5480	LENS, indicator, red, LH	1
3	47H5363	LENS, stop and tail, RH	1
	47H5358	LENS, stop and tail, LH	1
4	47H535679	SCREW KIT, lenses to lamp backplate	2	Includes screws for one lamp.
5	47H5356	SCREW, indicator lens to lamp backplate, long	2
6	47H5357	SCREW, indicator lens to lamp backplate, short	2
7	47H5359	SCREW, stop and tail lens to lamp backplate	2
8	37H5293	WASHER, fibre	6
9	57H5399	GASKET KIT, rear lamp assembly	2	Includes lens and lamp to body gaskets for one lamp.
10	47H5360	GASKET, lenses to lamp backplate	2
11	47H5361	GASKET, lamp backplate to body	2
12	27H7952	SEPARATOR, lenses, RH	1
	27H7951	SEPARATOR, lenses, LH	1
13	GLB382	BULB, indicator	2
14	GLB380	BULB, stop and tail	2
15	37H5452	INTERIOR, indicator bulb holder contacts	2
16	37H5459	INTERIOR, stop and tail lamp bulb holder contacts	2
17	37H2688	GROMMET, indicator bulb holder	2
18	37H2687	GROMMET, stop and tail lamp bulb holder	2
19	BHA4242	NUT, securing lamp to body	6

MkII and MkIII Saloon, 1967-75
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
20	13H6479	REAR LAMP ASSY., indicator, stop and tail, RH	1
	13H6480	REAR LAMP ASSY., indicator, stop and tail, LH	1
21	37H4838	LENS, indicator, stop and tail, RH	1	Includes lamp to backplate gasket and screws.
	37H4837	LENS, indicator, stop and tail, LH	1	Includes lamp to backplate gasket and screws.
22	37H5751	SCREW, lenses to lamp backplate, top	2
23	27H8811	SCREW, lenses to lamp backplate, bottom, short	2
24	17H6764	SCREW, lenses to lamp backplate, bottom, long	2
25	37H5293	WASHER, fibre	6
26	37H6778	GASKET, lens to lamp backplate	2
27	37H2690	GASKET, lamp backplate to body, RH	1
	37H2689	GASKET, lamp backplate to body, LH	1
28	GLB382	BULB, indicator	2
29	GLB380	BULB, stop and tail	2
30	37H5452	INTERIOR, indicator bulb holder contacts	2
31	37H5459	INTERIOR, stop and tail lamp bulb holder contacts	2
32	37H2688	GROMMET, indicator bulb holder	2
33	37H2687	GROMMET, stop and tail lamp bulb holder	2
34	BHA4242	NUT, securing lamp to body	8

MkIV Onwards Saloon and Cabriolet, 1976 On
There are two alternative lamp assemblies for these models, the lenses of which are not interchangeable. The Altissimo lamp is identifiable by its one piece lens, whereas the Lucas/Carello lamp (more common in later years) employs a separate lens for the reversing lamp.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
35	ADU2478	REAR LAMP ASSY., indicator, stop, tail and reverse, RH	1	Altissimo manufacture.
	ADU2479	REAR LAMP ASSY., indicator, stop, tail and reverse, LH	1	Altissimo manufacture.
	XFB101900	REAR LAMP ASSY., indicator, stop, tail and reverse, RH	1	Lucas/Carello manufacture.
	XFB101910	REAR LAMP ASSY., indicator, stop, tail and reverse, LH	1	Lucas/Carello manufacture.
36	AAU4946	LENS, one piece, indicator, stop, tail and reverse, RH	1	Altissimo manufacture; includes lens to backplate gasket.
	AAU4947	LENS, one piece, indicator, stop, tail and reverse, LH	1	Altissimo manufacture; includes lens to backplate gasket.
37	XFJ10026	LENS, indicator, stop and tail, RH	1	Lucas/Carello manufacture.
	XFJ10027	LENS, indicator, stop and tail, LH	1	Lucas/Carello manufacture.
38	XFJ10028	LENS, reverse and reflex, RH	1	Lucas/Carello manufacture.
	XFJ10029	LENS, reverse and reflex, LH	1	Lucas/Carello manufacture.
39	XYP100310	SCREW, lens to lamp backplate	6
40	XFH100460	GASKET, lenses to lamp backplate	2
41	37H2692	GASKET, lamp backplate to body, RH	1
	37H2691	GASKET, lamp backplate to body, LH	1
42	GLB382	BULB, indicator	2
43	GLB380	BULB, stop and tail	2
44	GLB382	BULB, reverse	2
45	BHA4242	NUT, securing lamp to body	8
46	EAM6543	WASHER, fibre	8	1995 on.

Traveller, Countryman, Clubman Estate and Van, 1960 On
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
47	13H6436	REAR LAMP ASSY., indicator, stop and tail	2
48	37H4964	LENS, indicator	2
49	37H4963	LENS, stop and tail	2
50	PMP308	SCREW, lenses to lamp backplate	6
51A	57H5166	GASKET, lens to lamp backplate	2
51B	57H5167	GASKET, lamp backplate to body	2
52	GLB382	BULB, indicator	2
53	GLB380	BULB, stop and tail	2
54	37H5452	INTERIOR, indicator bulb holder contacts	2
55	37H5459	INTERIOR, stop and tail lamp bulb holder contacts	2
56	37H2688	GROMMET, indicator bulb holder	2
57	37H2687	GROMMET, stop and tail lamp bulb holder	2
58	BHA4242	NUT, securing lamp to body	6	Not Traveller and Countryman with wooden bodywork.
59	5L106	NUT, sleeve, securing lamp to body	6	Traveller and Countryman with wooden bodywork.

Pick Up, 1961-80
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
60	47H5590	REAR LAMP ASSY., indicator, stop and tail	2
61	17H5359	LENS, indicator, stop and tail	2
62	17H5353	RIM, lens	2
63	PMP312	SCREW, lens to lamp backplate	4
64	17H5354	GASKET, lens to body	2
65	17H5357	SEPARATOR, lenses	2
66	17H5358	SEAL, separator	2
67	GLB382	BULB, indicator	2
68	GLB380	BULB, stop and tail	2
69	17H5356	BACKPLATE ASSEMBLY	2
70	37H5452	INTERIOR, indicator bulb holder contacts	2
71	37H5459	INTERIOR, stop and tail lamp bulb holder contacts	2
72	27H6713	BULLET, push on type connector	6
73	PJP1006	SCREW, self tapping, backplate to body	4

Pick Up, 1980 On
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
74	AAU5127	REAR LAMP ASSY., indicator, stop and tail	2
75	37H4960	LENS, indicator, stop and tail	2
76	GLB382	BULB, indicator	2
77	GLB380	BULB, stop and tail	2
78	BHA4242	NUT, securing lamp to body	8

Riley and Wolseley Models, 1961-69
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
79	13H6409	REAR LAMP ASSY., indicator, stop and tail	2	With amber indicator lens.
80	37H6113	LENS, indicator, amber	2
	7H6840	LENS, indicator, red	2
81	37H6114	LENS, stop and tail	2
82	57H5502	GASKET, lens to lamp backplate	2
83	57H5492	GASKET, lamp backplate to body	2
84	GLB382	BULB, indicator	2
85	GLB380	BULB, stop and tail	2
86	27H9099	BULB HOLDER ASSEMBLY, indicator	2
87	37H5524	BULB HOLDER ASSEMBLY, stop and tail	2
88	37H5452	INTERIOR, indicator bulb holder contacts	2
89	37H5459	INTERIOR, stop and tail lamp bulb holder contacts	2
90	17H5216	GROMMET, bulb holders	4
91	BHA4242	NUT, securing lamp to body	6

Side Marker Lamps and Reflex Units
MkI, MkII Saloon, USA and Canada, 1967-69
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
92	13H5870	REFLEX UNIT, rear side marker, red	2
93	BHA4242	NUT, attaching reflex unit to body	4

MkIII, MkIV Saloon, Canada 1970-80
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
94	13H7031	SIDE MARKER LAMP ASSEMBLY, amber	2
95	608224	LENS, red	2
96	47H5279	REFLEX, amber	2
97	519364	RIM, lens and reflex	2
98	GLB989	BULB	2
99	244700	INTERIOR, bulb holder contacts	2
100	27H6713	BULLET, push on type connector	2
101	CNZ102	NUT, securing side marker lamp	4

White Rear Lamp Conversions
MkIV Onwards Saloon and Cabriolet, 1976 On
Note that these components are designed for the two-piece lens type lamps of Lucas/Carello manufacture. They will not fit Altissimo manufactured lamps with one-piece lenses.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
102	CRLK001	CONVERSION KIT, white lamps, upper and lower lenses	1	Includes amber and red bulbs.
103	GLB343	BULB, indicator, amber	2
104	380R	BULB, stop and tail, red	2
