Pickup

Body Sides and Doors
Body Sides
Body side assemblies include the centre pillar, cant rail, rear pillar and channel.

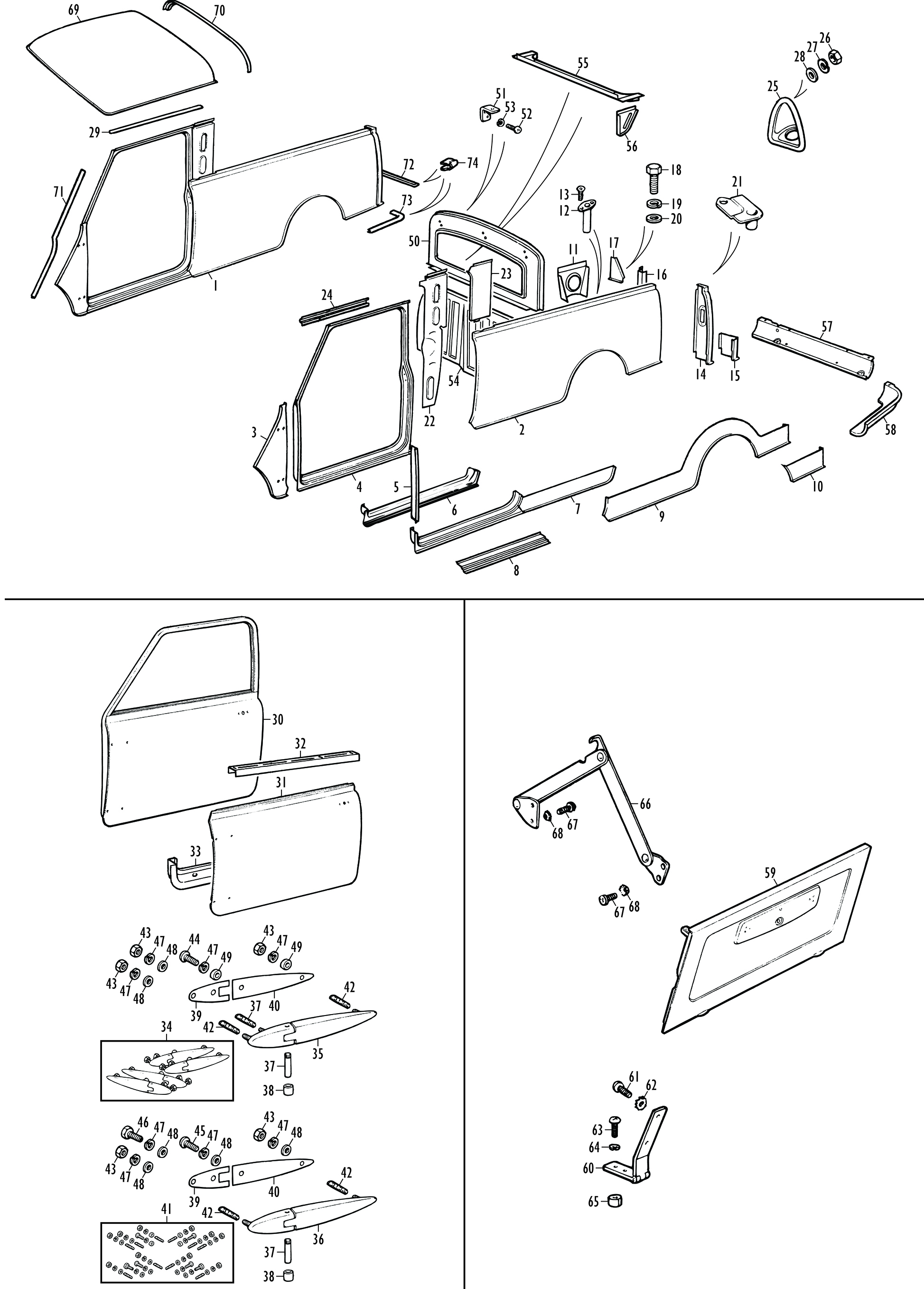

Ill. No.	Part No.	stay to tailboard and body	Qty. Rqd.	Remarks
1	ALA8346	BODY SIDE ASSEMBLY, RH	1
	ALA8347	BODY SIDE ASSEMBLY, LH	1
2	14A7555	BODY SIDE PANEL, RH	1
	14A7556	BODY SIDE PANEL, LH	1
Don’t forget, when refitting a Mini Van or Pick Up after repairing and repainting the bodyshell, to fit new rubber strips to seal the gap between the load floor and the bodysides. Sold under part number 14G7836, this simple strip of rubber will prevent all manner of dirt and detritus from falling down the gap and accumulating in the space between the inner and outer sills. The dirt of course holds moisture, and as such is a very common cause of sill and floor corrosion on the Mini commercial models - especially Pick Ups, which during their serious work years were often subjected to becoming motorised wheelbarrows, filled with sand, aggregate and other building materials. Many a Pick Up when shorn of what’s left of its outer sills has yielded forth large concrete-consistency lumps, moulded to the shape of the box section between the outer and inner sills...

Ill. No.	Part No.	stay to tailboard and body	Qty. Rqd.	Remarks
3	14A6901	OUTER A PANEL, RH	1
	14A6901P	OUTER A PANEL, RH	1	Non-genuine.
	14A6902	OUTER A PANEL, LH	1
	14A6902P	OUTER A PANEL, LH	1	Non-genuine.
4	14A6899	DOOR SURROUND, RH	1
	14A6900	DOOR SURROUND, LH	1
5	REPAN071	SURROUND REPAIR, A post, RH	1	Non-genuine.
	REPAN072	SURROUND REPAIR, A post, LH	1	Non-genuine.
6	REPAN064	SURROUND REPAIR, step with corners, RH	1	Detailed restoration quality panel.
	REPAN065	SURROUND REPAIR, step with corners, LH	1	Detailed restoration quality panel.
7	REPAN012	SURROUND REPAIR, step with corners, RH	1	Non-genuine; extends into body side.
	REPAN013	SURROUND REPAIR, step with corners, LH	1	Non-genuine; extends into body side.
8	BHM13P	SURROUND REPAIR, door step, straight	2	Non-genuine.
9	REPAN161	BODY SIDE REPAIR, lower edge, full length, RH	1	Non-genuine.
	REPAN162	BODY SIDE REPAIR, lower edge, full length, LH	1	Non-genuine.
10	REPAN121	BODY SIDE REPAIR, lower rear corner, RH	1	Non-genuine.
	REPAN122	BODY SIDE REPAIR, lower rear corner, LH	1	Non-genuine.
11	REPAN163	STIFFENER, body side to wheel arch	2
12	14A7744	HOUSING, tilt frame	2
13	CMZ308	SCREW, countersunk, housing attaching	4	No. 10 UNF x 1/2".
14	14A7557	PILLAR, rear, RH	1
	14A7558	PILLAR, rear, LH	1
The lamp apertures in new rear pillars may need modification, depending on whether pre- or post-1980 rear lamp assemblies are to be fitted.

Ill. No.	Part No.	stay to tailboard and body	Qty. Rqd.	Remarks
15	REPAN123	REAR PILLAR REPAIR, lower, RH	1	Non-genuine.
	REPAN120	REAR PILLAR REPAIR, lower, LH	1	Non-genuine.
16	14A7769	CHANNEL, rear, RH	1
	14A7770	CHANNEL, rear, LH	1
17	14A7773	GUSSET PLATE, body side, RH	1
	14A7774	GUSSET PLATE, body side, LH	1
18	SH604061	SCREW, gusset to floor	4
19	LWZ204	WASHER, locking	4
20	PWZ104	WASHER, plain	4
21	14A7739	CORNER TOP, rear pillar, RH	1
	14A7740	CORNER TOP, rear pillar, LH	1
22	24A1436	CENTRE PILLAR, RH	1
	24A1437	CENTRE PILLAR, LH	1
23	14A7559	BODY SIDE PANEL, upper, RH	1
	14A7560	BODY SIDE PANEL, upper, LH	1
24	14A7162	CANT RAIL, door surround, RH	1
	14A7163	CANT RAIL, door surround, LH	1
25	14A8152	COWL ASSEMBLY, fuel filler	1
26	FNZ103	NUT, cowl to body side	5
27	WL700101	WASHER, locking	5
28	PWZ103	WASHER, plain	5
29	14A8472	SHEDDER, drip moulding, RH	1
	14A8473	SHEDDER, drip moulding, LH	1

Doors
When fitting out a new door assembly, don’t forget the drain tubes (part number 14A7930; two required per door) running from the lower window channel down to outlets in the bottom of the door frame. It’s a good idea to check the tubes are clear of obstruction periodically, too.
Ill. No.	Part No.	stay to tailboard and body	Qty. Rqd.	Remarks
30	14A8306	DOOR ASSEMBLY, RH	1
	14A8307	DOOR ASSEMBLY, LH	1
31	14A5498	DOOR OUTER PANEL, RH, steel	1
	14A5499	DOOR OUTER PANEL, LH, steel	1
	14A5498P	DOOR OUTER PANEL, RH, steel	1	Non-genuine.
	14A5499P	DOOR OUTER PANEL, LH, steel	1	Non-genuine.
	REPAN107	DOOR OUTER PANEL, RH, aluminium	1	Non-genuine.
	REPAN108	DOOR OUTER PANEL, LH, aluminium	1	Non-genuine.
32	REPAN109	SUPPORT, door window channel	2	Non-genuine.
33	REPAN037	DOOR FRAME REPAIR, lower edge, RH	1	Non-genuine.
	REPAN038	DOOR FRAME REPAIR, lower edge, LH	1	Non-genuine.
34	14A6818K	DOOR HINGE KIT, 4 hinges, replacement	1	Supplied fitted with metric fixings.
35	14A6818	DOOR HINGE ASS'Y, upper RH, replacement	1	Supplied fitted with metric fixings.
	14A6819	DOOR HINGE ASS'Y, upper LH, replacement	1	Supplied fitted with metric fixings.
36	14A6820	DOOR HINGE ASS'Y, lower RH, replacement	1	Supplied fitted with metric fixings.
	14A6821	DOOR HINGE ASS'Y, lower LH, replacement	1	Supplied fitted with metric fixings.
37	37H3044	PIN, door hinge	4
38	37H3043	BUSH, repair, hinge pin	4
39	BMP135	GASKET, hinge, body	4
40	BMP134	GASKET, hinge, door	4
41	14A6818/21FK	FIXINGS KIT, door hinges, imperial	1	Car set (for 4 hinges).
Hinge fixings kit includes all studs, nuts, screws, washers and distance pieces for both doors.

Ill. No.	Part No.	stay to tailboard and body	Qty. Rqd.	Remarks
42	53K402	STUD, hinge, imperial thread	10	Original hinge.
	53K402X	STUD, hinge, metric thread	10	Replacement hinge.
43	NH604041	NUT, hinge, imperial thread	10	Original hinge.
	NH106041	NUT, hinge, metric thread	10	Replacement hinge.
44	PMZ412	SCREW, upper hinge to door, imperial	2	Original hinge. Pan head, 3/4" long.
	SE106201	SCREW, upper hinge to door, metric	2	Replacement hinge. Pan head, 20mm long.
45	PMZ410	SCREW, lower hinge to door, imperial	2	Original hinge. Pan head, 5/8" long.
	SE106161	SCREW, lower hinge to door, metric	2	Replacement hinge. Pan head, 16mm long.
46	SH604051	SCREW, lower hinge to body, imperial	2	Original hinge. Hex head, 5/8" long.
	SH106161	SCREW, lower hinge to body, metric	2	Replacement hinge. Hex head, 16mm long.
47	LWZ204	WASHER, locking	16
48	PWZ104	WASHER, plain	12	Do not use on upper hinge to door.
49	14A7387	DISTANCE PIECE, upper hinge to door	4

Back Panels and Tailboard
Ill. No.	Part No.	stay to tailboard and body	Qty. Rqd.	Remarks
50	14A8279	CAB BACK LIGHT ASSEMBLY	1
51	14A7748	BRACKET, tilt frame	3
52	PMZ308	SCREW, bracket to back light assembly	6
53	WL700101	WASHER, locking	6
54	14A7562	BACK LIGHT TO REAR FLOOR PANEL	1
55	REPAN222	CROSSMEMBER ASS'Y, cab back	1
56	REPAN223	GUSSET PLATE, cab back crossmember, RH	1
	REPAN224	GUSSET PLATE, cab back crossmember, LH	1
57	14A8154	REAR VALANCE ASSEMBLY	1	1980 on; includes weld nuts for fog rear guard lamps. Will fit earlier models.
	14A8154P	REAR VALANCE ASSEMBLY	1	Non-genuine.
58	14A6908	SIDE PANEL, rear valance, RH	1
	14A6909	SIDE PANEL, rear valance, LH	1
	14A6908P	SIDE PANEL, rear valance, RH	1	Non-genuine.
	14A6909P	SIDE PANEL, rear valance, LH	1	Non-genuine.
59	CZH3293	TAILBOARD ASSEMBLY	1
60	14A7755	HINGE ASSEMBLY, tailboard	2
61	SE605041	SCREW, pan head, hinge to tailboard	4
62	WE600051	WASHER, shakeproof	4
63	SE605091	SCREW, pan head, hinge to body	4
64	LWZ205	WASHER, locking	4
65	14A7771	DISTANCE PIECE, hinge	4
66	14A7761	STAY, tailboard, RH	1
	14A7762	STAY, tailboard, LH	1
67	CMZ410	SCREW, countersunk, stay to tailboard and body	8
68	53K3453	WASHER, shakeproof, countersunk	8

Roof
Ill. No.	Part No.	stay to tailboard and body	Qty. Rqd.	Remarks
69	14A7565	ROOF PANEL	1
70	REPAN225	ROOF REPAIR, rear edge	1

Seam Finishers
Ill. No.	Part No.	stay to tailboard and body	Qty. Rqd.	Remarks
71	14A9999	FINISHER, seam, roof to front wheel arch	2
	BMP127	FINISHER, seam, roof to front wheel arch	2	Alternative.
72	14A8368	FINISHER, seam, rear valance	1
	BMP130	FINISHER, seam, rear valance	1	Alternative.
73	14A7183	FINISHER, seam, body rear side, RH	1
	14A7184	FINISHER, seam, body rear side, LH	1
	BMP131	FINISHER, seam, body rear side	2	Not handed; alternative.
74	GFK7515	CLIP, finisher to seam	30	Use 8 for each front finisher, 4 for each rear side finisher, 6 for the rear valance finisher.

Can’t Find The Part You Need?
Every panel and bracket fitted to the Mini saloon in the last ten years or so of the car’s production life is still being made today, as a direct result of British Motor Heritage taking over Mini bodyshell production from Longbridge. Mini Travellers, Vans and Pick Ups also benefit from very good panel availability by comparison with most classic cars (though obviously not as good as the Mini saloon), and if an original panel is not available there are usually repair panels to cover most needs. However, if you’re sure that what you need isn’t here, please contact us and we’ll do our best to obtain it for you.
