Oil filters and oil pipes

Full Flow Oil Filters (Manual Gearbox Models, 1959-73)
In the period between 1959 and 1964, several different 'Full Flow' cannister type oil filter assemblies were fitted as alternatives in production. One was made by
Tecalamit, the others by Purolator (the filter head usually has the manufacturer's name cast into it). From 1964 until 1973, Purolator assemblies were used
exclusively: 1964-69 types had a pressure switch to warn drivers if the filter was in poor condition, but this idea was dropped again from 1969. All Full Flow
oil filter assemblies are interchangeable, but care must be taken to identify (i) manufacturer and for Purolator types (ii) sump material before ordering parts for them.

Tecalemit Full Flow Clamped Element Assembly
1959-64 (without pressure switch)

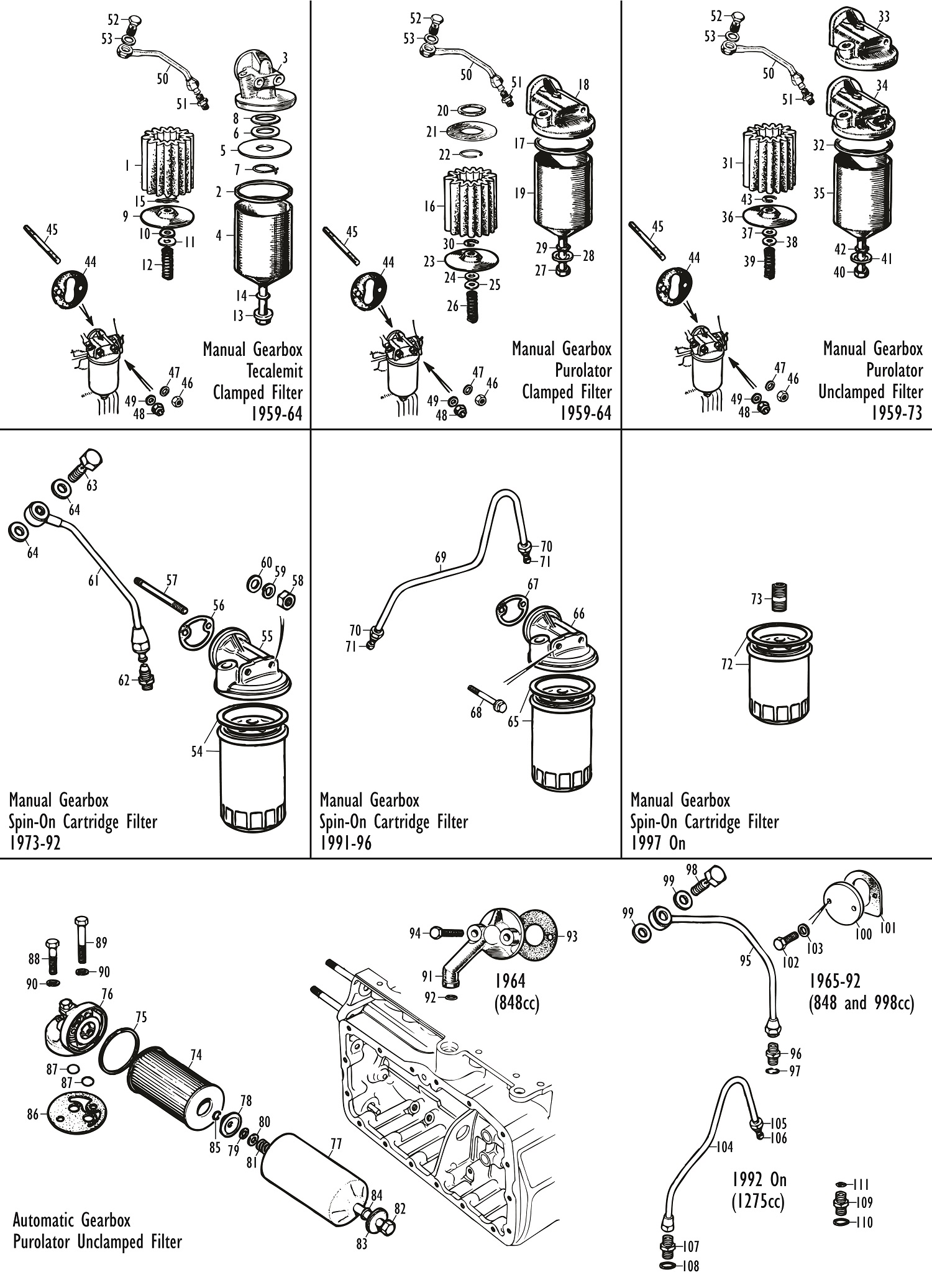

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	GFE103	ELEMENT, oil filter, with seal	1
2	12A1591	SEAL, sump to head	1	Included with element.
3	17H945	HEAD ASS'Y, oil filter, without pressure switch	1
4	37H436	SUMP, oil, steel	1
5	7H147	PLATE, clamping element	1
6	7H1756	SEAL, clamp plate, felt	1
7	2A700	CIRCLIP, clamping plate	1
8	7H1761	WASHER, dished, clamp plate	1
9	17H942	PLATE, pressure	1
10	7H1758	SEAL, pressure plate, felt	1
11	7H1765	WASHER, plain	1
12	7H1764	SPRING, pressure plate	1
13	17H943	BOLT, centre	1
14	7H1759	SEAL, bolt to sump	1
15	17H2877	CIRCLIP, bolt retaining	1

Purolator Full Flow Clamped Element Assembly
1959-64 (without pressure switch)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
16	GFE103	ELEMENT, oil filter, with seal	1
17	12A1591	SEAL, sump to head	1	Included with element.
18	17H1170	HEAD ASS'Y, oil filter, without pressure switch	1
19	17H1169	SUMP, oil, steel	1
20	17H1152	SEAL, clamp plate, rubber	1
21	17H1150	PLATE, clamping element	1
22	17H1167	CIRCLIP, clamping plate	1
23	17H1148	PLATE, pressure	1
24	7H28	SEAL, pressure plate, rubber	1
25	PWZ106	WASHER, plain	1
26	500319	SPRING, pressure plate	1
27	17H1174	BOLT, centre	1
28	17H1172	COLLAR, sump to seal	1
29	508380	SEAL, bolt to sump	1
30	27H2573	CIRCLIP, bolt retaining	1

Purolator Full Flow Unclamped Element Assembly
1959-64 and 1969-73 (without pressure switch)
1964-69 (with pressure switch)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
31	GFE103	ELEMENT, oil filter, with seal	1
32	12A1591	SEAL, sump to head	1	Included with element.
33	17H9463	HEAD ASS'Y, oil filter, without pressure switch	1	1959-64 and 1969-73.
34	37H1528	HEAD ASS'Y, oil filter, with pressure switch	1	1964-69.
35	27H1717	SUMP, oil, die cast	1	Use correct collar and seal on centre bolt.
	17H1169	SUMP, oil, steel	1	Use correct collar and seal on centre bolt.
	17H8892	SUMP, oil, aluminium	1	Use correct washer and seal on centre bolt.
36	17H1148	PLATE, pressure	1
37	7H28	SEAL, pressure plate, rubber	1
38	PWZ106	WASHER, plain	1
39	500319	SPRING, pressure plate	1
40	37H689	BOLT, centre	1
41	17H1172	COLLAR, sump to seal	1	For die cast or steel sump.
	PWZ106	WASHER, plain	1	For aluminium sump.
42	508380	SEAL, bolt	1	For die cast or steel sump.
	17H2281	SEAL, bolt	1	For aluminium sump.
43	27H2573	CIRCLIP, bolt retaining	1

Oil Filter Head Fixings
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
44	88G402	GASKET, oil filter head to cylinder block	1
45	53K615	STUD, oil filter head to cylinder block	2
46	FNZ106	NUT, plain	2	Alternative to nyloc nut; use with locking washer.
47	LWZ306	WASHER, locking	2	Use with plain nut.
48	LNZ206	NUT, nyloc	2	Alternative to plain nut; use with plain washer.
49	PWZ106	WASHER, plain	2	Use with nyloc nut.

Oil Filter to Cylinder Block Pipe
This pipe is not required if an oil cooler is fitted. For oil coolers, hoses and fittings, see the 'Cooling - Oil Coolers' section in the Cooling and Heating area of the Somerford Mini catalogue.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
50	88G538	PIPE ASS'Y, oil filter head to cylinder block	1
51	TCZ106	ADAPTOR, pipe to oil filter head	1	Original type.
	TAM2119	ADAPTOR, pipe to oil filter head	1	Replacement type.
52	2A715	BOLT, banjo, pipe to cylinder block	1
53	AED172	WASHER, sealing banjo union	2	Original copper washer.
	LYF10017	WASHER, sealing banjo union	2	Alternative bonded metal/rubber washer.

Spin-On Oil Filters (Manual Gearbox Models, 1973 On)
From 1973 until 1996 a filter head accepting a 'spin-on' cartridge type filter was fitted. The 1973-92 filter heads can be fitted to pre-1973 engines to allow them to
take a non-period appearance, but certainly more practical, spin-on filter. Note that the filter head to cylinder block studs must be changed as well.

Carburetter model filter heads fitted between 1973 and 1992 are interchangeable. The filter head fitted from 1991 to 1996 (injection models, plus 1992-94 carburetter
models) is not interchangeable with the earlier types, since it has a different connection to the cylinder block oil pipe.

The oil filter to cylinder block pipe is not required if an oil cooler is fitted. For oil coolers, hoses and fittings, see the 'Cooling - Oil Coolers' section in the Cooling
and Heating area of the Somerford Mini catalogue.

Upon the major engine revamp for the 1997 model year (i.e. the start of multi point injection production), the whole idea of an oil filter head was abandoned in
favour of a spin-on filter which attached directly to the cylinder block - there simply wasn't any room for an oil filter head behind the new, front-mounted radiator on
the MPi Mini.

1973-92 Spin-On Cartridge Assembly
(all carburetter engines except 1275cc 1992-94)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
54	GFE166	CARTRIDGE, oil filter, with seal	1	Original equipment.
	GFE21	CARTRIDGE, oil filter, with seal	1	Premium 'Hitech' type.
55	12A2032	HEAD ASSEMBLY, oil filter	1	1973-88.
	TAM2097	HEAD ASSEMBLY, oil filter	1	1988-92; will replace 12A2032.
56	GUG705553GM	GASKET, oil filter head to cylinder block	1
57	CHS2613	STUD, oil filter head to cylinder block	2
58	FNZ106	NUT	2
59	LWZ306	WASHER, locking	2
60	PWZ106	WASHER, plain	2
61	88G538	PIPE ASS'Y, oil filter head to cylinder block	1	1973-80 (pre-A Plus).
	TAM2106	PIPE ASS'Y, oil filter head to cylinder block	1	1980-92 (A Plus).
62	TCZ106	ADAPTOR, pipe to oil filter head	1	1959-88.
	TAM2119	ADAPTOR, pipe to oil filter head	1	1988-92; will replace TCZ106.
63	2A715	BOLT, banjo, pipe to cylinder block	1
64	AED172	WASHER, sealing banjo union	2	Original copper washer.
	LYF10017	WASHER, sealing banjo union	2	Alternative bonded metal/rubber washer.

1991-96 Spin-On Cartridge Assembly
(single point injection engines 1991-96 and 1275cc carburetter engines 1992-94)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
65	GFE166	CARTRIDGE, oil filter, with seal	1	Original equipment.
	GFE21	CARTRIDGE, oil filter, with seal	1	Premium 'Hitech' type.
66	LPX10026	HEAD ASSEMBLY, oil filter	1	Casting marked LPX10027.
67	GUG705553GM	GASKET, oil filter head to cylinder block	1
68	LYG10008	BOLT, flanged, oil filter head to cylinder block	2
69	LQP10033	PIPE, oil filter head to cylinder block	1
70	LYH10014	NUT, tube, pipe union	2
71	LZB10017	SEAL, rubber, pipe	2

1997 On Spin-On Cartridge Assembly
(multi point injection and single point injection engines)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
72	LPW100180	CARTRIDGE, oil filter, with seal	1	Original equipment.
	GFE26	CARTRIDGE, oil filter, with seal	1	Premium 'Hitech' type.
73	CAM5331	ADAPTOR, oil filter to cylinder block	1

Full Flow Oil Filters (Automatic Gearbox Models)
Purolator Full Flow Assembly
1964 (without pressure switch)
1965 On (with pressure switch)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
74	GFE104	ELEMENT, oil filter, with seal	1
75	12A1591	SEAL, sump to head	1	Included with element.
76	27H6800	HEAD ASS'Y, oil filter, without pressure switch	1	1964
	37H1480	HEAD ASS'Y, oil filter, with pressure switch	1	1965 on.
77	37H140	SUMP, oil	1
78	500439	PLATE, pressure	1
79	7H28	SEAL, pressure plate, rubber	1
80	PWZ106	WASHER, plain	1
81	500319	SPRING, pressure plate	1
82	27H6799	BOLT, centre	1
83	17H1172	COLLAR, sump to seal	1
84	508380	SEAL, bolt	1
85	27H2573	CIRCLIP, bolt retaining	1

Oil Filter Head Fixings
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
86	GUG705552GM	GASKET, oil filter head to gearbox front cover	1
87	22A1001	O RING, oil filter head	2	1964-69; if required.
88	BH507131	BOLT, oil filter head to gearbox front cover, short	1
	TAM1188	BOLT, oil filter head to gearbox front cover, short	1	Alternative to BH507131.
89	BH507301	BOLT, oil filter head to gearbox front cover, long	1
90	LWZ307	WASHER, locking	2

Oil Filter to Cylinder Block Adaptor
1964 (848cc)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
91	22A1197	ADAPTOR, oil, gearbox case to cylinder block	1
92	22A811	O RING, adaptor to gearbox case	1
93	88G402	GASKET, adaptor to cylinder block	1
94	SH506101	SCREW, adaptor to cylinder block	2

Oil Filter to Cylinder Block Pipe
1965-92 (848 and 998cc)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
95	88G539	PIPE ASS'Y, oil, gearbox case to cylinder block	1	1965-80 (pre-A Plus).
	AHU2396	PIPE ASS'Y, oil, gearbox case to cylinder block	1	1980-92 (A Plus).
96	22G791	ADAPTOR, pipe to gearbox case	1	1965-88.
	DAM7601	ADAPTOR, pipe to gearbox case	1	1988-92; will replace 22G791.
97	22A1563	O RING, adaptor to gearbox case	1
98	2A715	BOLT, banjo, pipe to cylinder block	1
99	AED172	WASHER, sealing banjo union	2	Original copper washer.
	LYF10017	WASHER, sealing banjo union	2	Alternative bonded metal/rubber washer.
100	22A1203	PLATE, blanking cylinder block oil filter face	1
101	88G402	GASKET, blanking plate	1
102	SH506071	SCREW, blanking plate to block	2
103	12G1058	WASHER, sealing	2

Oil Filter to Cylinder Block Pipe
1992 On (1275cc)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
104	LQP10038	PIPE ASS'Y, oil, gearbox case to cylinder block	1
105	LYH10014	NUT, tube, pipe union	1
106	LZB10017	SEAL, rubber, pipe	1
107	DAM7601	ADAPTOR, pipe to gearbox case	1
108	22A1563	O RING, adaptor to gearbox case	1
109	TGW100020	ADAPTOR, gearbox case	1	1997 on.
110	22A1563	O RING, adaptor to gearbox case	1	1997 on.
111	LZB100350	SEAL, adaptor	1	1997 on.
