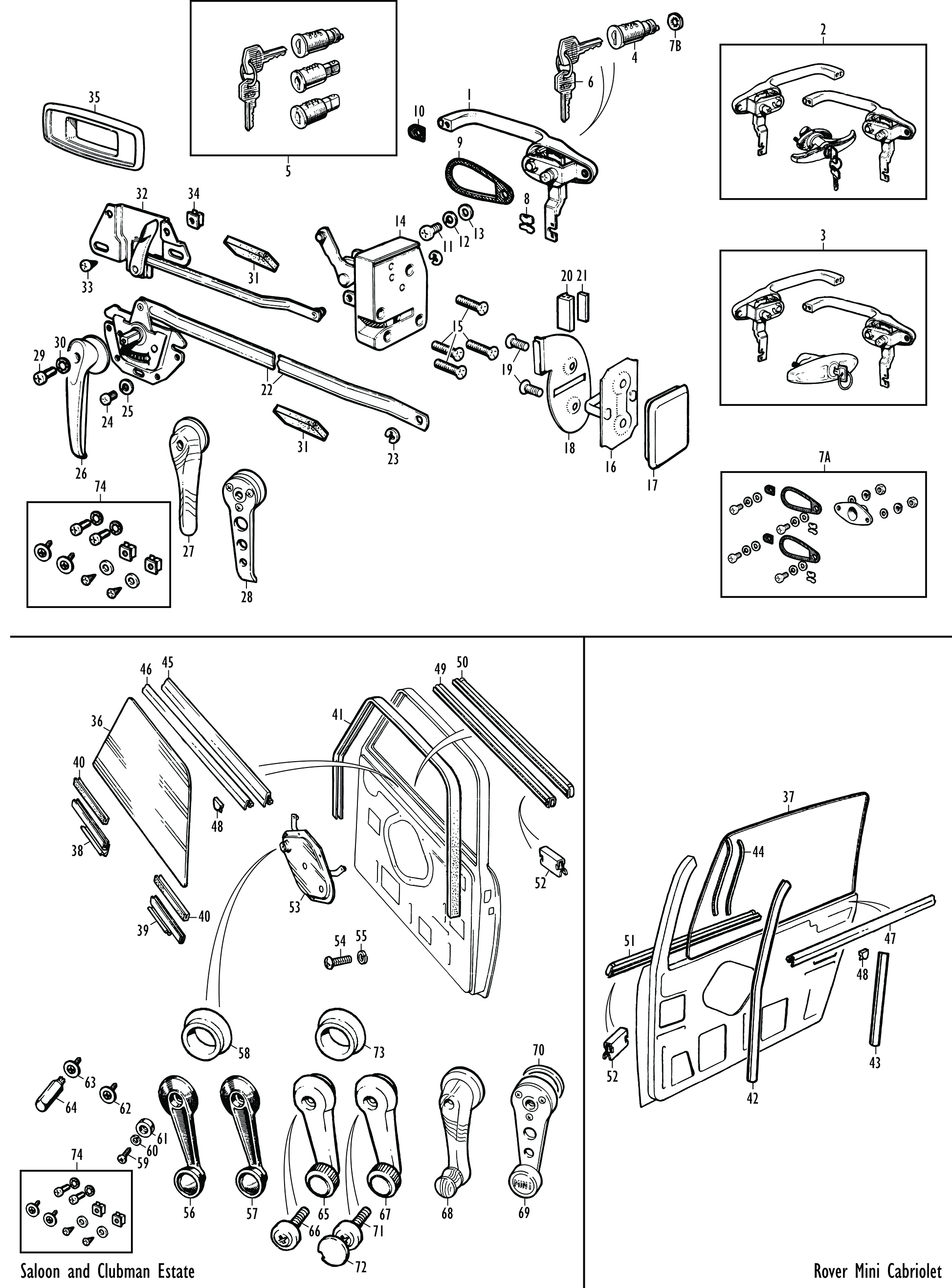

Internal Hinge Doors Part 1

Internally Hinged Doors
Mini Saloon, Clubman, Clubman Estate and Cabriolet 1969 on, Riley and Wolseley MkIII 1967-69 (see note below)
Items in this section directly appropriate for Riley and Wolseley MkIII models include door handles, door glasses, glass channels and waist seals. Other items, such as window regulators, can be used with slight modification. However, parts like the entire lock system (bar the exterior and interior handles) are totally different. Beware and check suitability before you buy!

Exterior Door Lock Components
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	18G8899	HANDLE ASSEMBLY, door, RH, chrome	1	1967-71; with two keys.
	18G8900	HANDLE ASSEMBLY, door, LH, chrome	1	1967-71; with two keys.
	CXB101280MMM	HANDLE ASSEMBLY, door, RH, chrome	1	1971 on; with two keys.
	CXB101290MMM	HANDLE ASSEMBLY, door, LH, chrome	1	1971 on; with two keys.
	CXB101280PMD	HANDLE ASSEMBLY, door, RH, Black	1	Standard models 1980-88; with two keys.
	CXB101290PMD	HANDLE ASSEMBLY, door, LH, Black	1	Standard models 1980-88; with two keys.
	JRC8180	HANDLE ASSEMBLY, door, RH, Nimbus Grey	1	Some limited editions 1980-88, plus standard models 1988-96.
	JRC8181	HANDLE ASSEMBLY, door, LH, Nimbus Grey	1	Some limited editions 1980-88, plus standard models 1988-96.
2	CHS001E	HANDLE SET, doors and boot lid, chrome	1	1969-70; 3 piece set, with two keys (with early boot lid handle).
3	CHS001	HANDLE SET, doors and boot lid, chrome	1	1971 on; 3 piece set, with two keys (with later boot lid handle).
	HS001B	HANDLE SET, doors and boot lid, Black	1	3 piece set, with two keys.
	JRC8179	HANDLE SET, doors and boot lid, Nimbus Grey	1	3 piece set, with two keys.
4	37H2064	LOCK BARREL, handle, with two keys	2
5	BARR001	LOCK BARREL SET, doors and boot lid	1	1969 on; 3 piece set, with two keys.
6		KEY, replacement, see note below	A/R
Pre-cut 'FS' type keys (the most commonly used key type on Minis) are available. To order, simply quote the FS number from your existing keys (or alternatively from the lock barrel, if it has the number stamped on it); the number will be in the range from FS876 – FS955.

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
7A	CHS001EFK	FITTING KIT, 3 piece handle set	1	1969-70; for early boot lid handle.
	CHS001FK	FITTING KIT, 3 piece handle set	1	1970 on; for late boot lid handle.
7B	PFR109	CLIP, lock barrel retaining	2
8	37H6519	RETAINER, operating link	2
9	ALA5795	GASKET, handle to door, large	2
10	CZH1729	GASKET, handle to door, small	2
11	PMZ306	SCREW, handle to door	4
12	WL700101	WASHER, locking	4
13	PWZ103	WASHER, plain	4
14	CZH3528	LOCK ASSEMBLY, RH	1
	CZH3529	LOCK ASSEMBLY, LH	1
15	ZCT410	SCREW, lock to door	8
16	CZH627	STRIKER, lock	2
17	CZH628	PLUG, striker hole in B post	2
18	CZD1184	COVER PLATE, striker, RH	1	1969-90.
	CZD1185	COVER PLATE, striker, LH	1	1969-90.
	CZG5254	COVER PLATE, striker	2	1990 on.
19	SF604051	SCREW, cover plate through B post to striker	4
20	CZD1351	SEAL, cover plate	2
21	CZD1350	RETAINER, seal	2

Interior Door Lock Components
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
22	CZH640	REMOTE CONTROL, RH	1
	CZH641	REMOTE CONTROL, LH	1
23	13H2899	CLIP, remote control to lock	2
24	PMZ306	SCREW, remote control to door	6
25	WL700101	WASHER, locking	6
26	JPC8387PA	HANDLE, interior, Black plastic	2	1969-96.
	FVC102060PMA	HANDLE, interior, Black plastic	2	1997 on.
	JPC8387AJ	HANDLE, Coffee plastic	2
	JPC8387CC	HANDLE, Bitter Chocolate plastic	2
	JPC8387JH	HANDLE, Prussian Blue plastic	2
	JPC8387LOY	HANDLE, interior, Granite plastic	2
	JPC8387C	HANDLE, interior, chromed finish	2	Aftermarket alternative.
27	FVC101730	HANDLE, interior, wood	2	Silverstone model; included in wood finisher kit.
28	FVC102690MDC	HANDLE, interior, alloy	2	Classic 2000 Cooper Sport models.
29	PMZ308	SCREW, handle to remote control	2	For plastic or wood handle.
	CMZ312	SCREW, handle to remote control	2	For alloy handle.
30	WE702101	WASHER, shakeproof	2
31	FQE10008	ANTI-RATTLE PAD, self adhesive	A/R	Prevents lock control links rattling.
32	CZH616	CONTROL, lock, RH	1	1969-92.
	CZH617	CONTROL, lock, LH	1	1969-92.
	EKU100020MMM	CONTROL, lock, RH	1	1993 on.
	EKU100030MMM	CONTROL, lock, LH	1	1993 on.
33	36052Z	SCREW, self tapping, lock control to door	4
34	GFK3428	LOKUT NUT, in door frame	4
35	CZH611PA	BEZEL, lock lever, Black	2
	CZH611LNF	BEZEL, lock lever, Ash Grey	2
	FVJ100110MMM	BEZEL, lock lever, chromed	2	1997 on.
	CLP001	BEZELS, lock lever, chromed, pair	2	Aftermarket alternative.
This bezel came originally in other colours to match the interior trim of 1980s and 1990s models. Please contact us for details of availability.

Door Glazing
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
36	ALA5723	DOOR GLASS, clear	2	Saloon and Clubman Estate models.
	CZH4007	DOOR GLASS, green tinted	2	Saloon and Clubman Estate models.
37	CUB10087	DOOR GLASS, green tinted	2	Rover Mini Cabriolet, 1993-96.
38	ALA5746	CHANNEL, door glass, front	2
39	ALA5747	CHANNEL, door glass, rear	2
40	ALA5746SR	GLAZING RUBBER, channel	4
41	PAM3076	SEAL, door glass channel, upper, RH	1	Saloon and Clubman Estate models.
	PAM3076P	SEAL, door glass channel, upper, RH	1	Saloon and Clubman Estate models; non-genuine.
	PAM3077	SEAL, door glass channel, upper, LH	1	Saloon and Clubman Estate models.
	PAM3077P	SEAL, door glass channel, upper, LH	1	Saloon and Clubman Estate models; non-genuine.
	ALA5757	SEAL/CHANNEL, upper, flexible steel backed	2	Riley and Wolseley, 1967-69.
42	CFE10102	SEAL, door glass channel, front	2	Rover Mini Cabriolet, 1993-96.
43	CFE10104	SEAL, door glass channel, rear, RH	1	Rover Mini Cabriolet, 1993-96.
	CFE10105	SEAL, door glass channel, rear, LH	1	Rover Mini Cabriolet, 1993-96.
44	CFE101380PMA	SEAL, door glass frame	4	Rover Mini Cabriolet, 1993-96.
45	ALA5772	WAIST FINISHER, inner, draught excluding, RH	1	Riley and Wolseley, 1967-69; Saloon and Clubman Estate, 1969-77.
	ALA5773	WAIST FINISHER, inner, draught excluding, LH	1	Riley and Wolseley, 1967-69; Saloon and Clubman Estate, 1969-77.
46	EJU10003	WAIST FINISHER, inner, draught excluding	2	Saloon and Clubman Estate, 1977 on.
47	EJU100200	WAIST FINISHER, inner, draught excluding	2	Rover Mini Cabriolet, 1993-96.
48	EYC10048	CLIP, inner waist finisher to door	10
49	CZH1666	WAIST FINISHER, outer, glass sealing, RH	1	Saloon and Clubman Estate, 1969-79; spooned metal ends.
	CZH1667	WAIST FINISHER, outer, glass sealing, LH	1	Saloon and Clubman Estate, 1969-79; spooned metal ends.
50	HMP841007	OUTER WAIST FINISHER KIT	1	Saloon and Clubman Estate, 1980 on; includes 2 finishers and 10 clips.
	PAM1014	WAIST FINISHER, outer, glass sealing, RH	1	Saloon and Clubman Estate, 1980 on; black plastic end caps.
	PAM1015	WAIST FINISHER, outer, glass sealing, LH	1	Saloon and Clubman Estate, 1980 on; black plastic end caps.
51	EJU100210	WAIST FINISHER, outer, glass sealing, RH	1	Rover Mini Cabriolet, 1993-96.
	EJU100220	WAIST FINISHER, outer, glass sealing, LH	1	Rover Mini Cabriolet, 1993-96.
52	ADH3809	CLIP, outer waist finisher to door	10
53	CZH646	REGULATOR, window, RH	1
	CZH647	REGULATOR, window, LH	1
54	PMZ403	SCREW, regulator to door	8
55	LWZ204	WASHER, locking	8
56	CZA2123	HANDLE, window regulator	2	1969-71; convex knob centre,
57	CZA7109	HANDLE, window regulator	2	1971-79; concave knob centre.
	CZA7109C	HANDLE, window regulator, chromed finish	2	Aftermarket alternative.
	CZA7109SET	HANDLES, pair, window regulator, chromed finish	1	Aftermarket alternative.
58	CZH701PA	BEZEL, regulator handle	2
59	PMZ308	SCREW, handle to regulator	2	1969-74.
60	WF702101	WASHER, shakeproof	2	1969-74.
61	CZA2367	ESCUTCHEON, screw	2	1969-74.
62	CZA7194	SCREW, flanged head, handle to regulator	2	1974-80, crosshead drive.
63	ZKC3317	SCREW, flanged head, handle to regulator	2	1974-80, Torx drive alternative.
64	17H6679	KEY, 'Torx'	1	Use to fit ZKC3317 screw.
65	YGA4330	HANDLE, window regulator, Black	2	1980-83.
66	ADU2534	SCREW, handle to regulator	2	1980-83.
67	YXX3199PA	HANDLE, window regulator, Black	2	1983 on.
	YXX3199LOY	HANDLE, window regulator, Granite	2	1983 on.
	YXX3199LNF	HANDLE, window regulator, Ash Grey	2	1983 on.
68	FVL100030	HANDLE, window regulator, Wood	2	Silverstone model; included in wood finisher kit.
69	FVL105120MDC	HANDLE, window regulator, Alloy	2	Classic 2000 Cooper Sport models.
70	EYF000010	WASHER, alloy handle to bezel	2	Classic 2000 Cooper Sport models.
71	PMZ308	SCREW, handle to regulator	2	1983 on.
72	YXX3200PA	PLUG, handle, Black	2	1983 on.
	YXX3200LNF	PLUG, handle, Ash Grey	2	1983 on.
73	CZH701PA	BEZEL, regulator handle, Black	2
	CZH701LG	BEZEL, regulator handle, Flint Grey	2
	CZH701LOY	BEZEL, regulator handle, Granite	2
	CZH701LNF	BEZEL, regulator handle, Ash Grey	2
	FVN100110MMM	BEZEL, regulator handle, bright finish	2
This handle and bezel came originally in other colours to match the interior trim of 1980s and 1990s models. Please contact us for details of availability.

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
74	DHSK001	SCREW KIT, interior door handles	1	For 1969-80 type plastic handles.
	DHSK002	SCREW KIT, interior door handles	1	For 1980-83 type plastic handles.
	DHSK003	SCREW KIT, interior door handles	1	For 1983 on type plastic handles, plus wooden handles.
	DHSK004	SCREW KIT, interior door handles	1	For alloy handles.
Each screw kit contains screws, washers and plastic nuts for a car set of window, door lock and door pull handles.
