interior trim - saloon 1959-69

Important Notes for Ordering Interior Trim:
Please state model and year of your Mini, plus the colour(s) you require along with the part numbers when placing your order. This will help us to make sure you receive exactly the trim you need.
Note that because of the complex nature of trim colours and material types, only very popular items and colours (usually black) are held in stock - all others will be obtained to order, for which there will be a short lead time.

Austin and Morris Mk I and Mk II
1959-69
Interior trim kits are not available for 1959-61 models, due to the 'mix and match' nature of the trim fitted during this period. Please determine - with our assistance, if required - which style of each component is correct for your car and order the components individually.
For 1961-69 models, each interior trim kit includes two door liners, two rear quarter liners, four door fillet panels, two door pocket liners, two door check straps, two dash liners, fascia panel cover (depending on model), front parcel shelf liner, two companion box liners, two rear wheel arch covers and a rear parcel shelf liner.
For 1959-61 Std. and Deluxe Mk I models, the following colour schemes are available: Black/Grey Fleck, Porcelain Green/Grey Fleck, Tartan Red/Grey Fleck, Powder Blue/Grey Fleck, Spanish Red/Grey Fleck, Spanish Blue/Grey Fleck.
For 1961-67 Std., Super Deluxe and Deluxe Mk I models, the following colour schemes are available: Cumulus Grey, Dove Grey, Porcelain Green, Powder Blue, Tartan Red.
For 1961-67 Super, Cooper and Cooper S Mk I models, the following colour schemes are available: Dove Grey, Gold Brocade, Silver Brocade.
For 1967-69 Mk II models, the following colour schemes are available: Black, Tartan Red, Cumulus Grey.

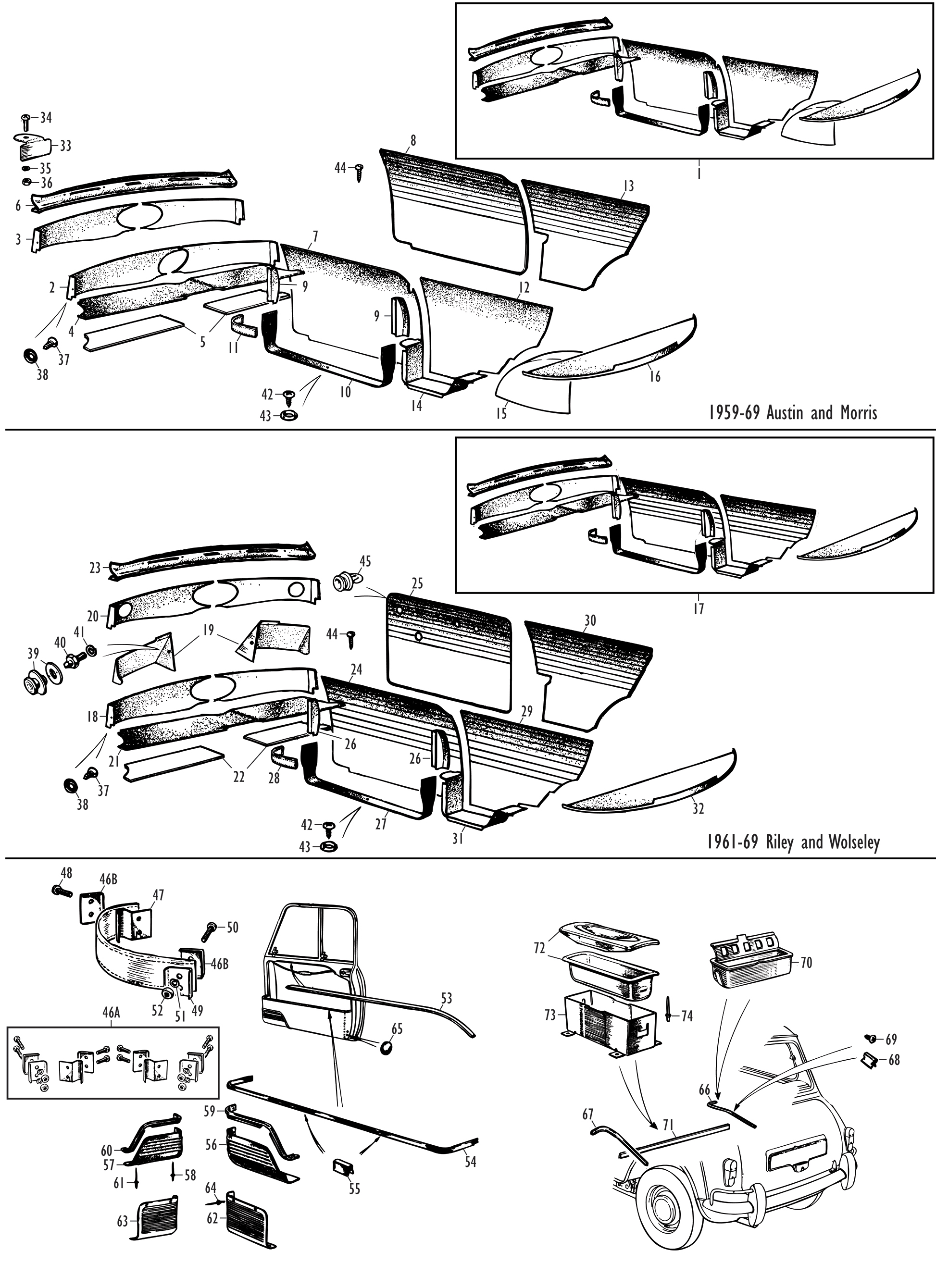

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	-	INTERIOR TRIM KIT	1	1959-61. Not available; purchase trim items separately as required.
	TK3008	INTERIOR TRIM KIT (state colour)	1	1961-69. For round instrument binnacle models.
	TK3000	INTERIOR TRIM KIT (state colour)	1	1961-69. For oval instrument binnacle models.

Fascia Trim
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
2	DT3101	DASH LINERS, pair (state colour)	1	1959-61. Round instrument binnacle type.
	DBL005	DASH LINERS, pair, black	1	1967-69 (will fit earlier models). Oval instrument binnacle type.
	DT3024	DASH LINERS, pair (state colour)	1	1961-69. Round instrument binnacle type.
3	DT3021	DASH LINERS, pair (state colour)	1	1961-69. Oval instrument binnacle type.
4	VGA1995	FRONT PARCEL SHELF LINER, black	1	1967-69 (will fit earlier models).
	DT3022	FRONT PARCEL SHELF LINER (state colour)	1	1959-69.
5	UDL001	STIFFENING BOARD SET, front parcel shelf liner	1
The UDL001 stiffening board set may be used under the parcel shelf liner to support it if the parcel shelf itself has been replaced with the later, non-solid type.

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
6	ALA5275	FASCIA PANEL COVER, vinyl, black	1	1961-69. For oval instrument binnacle models.

Door Trim
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
7	DP3101	DOOR LINERS, pair, plain (state colour)	1	1959-61.
8	ALE1226/7	DOOR LINERS, pair, ribbed, black	1	1967-69 (will fit earlier models).
	DP3021	DOOR LINERS, pair, ribbed (state colour)	1	1959-69.
9	ALE1222/3	DOOR FILLET PANELS, pair, black	2	For one door. 1967-69 (will fit earlier models).
	DP3022	DOOR FILLET PANELS, pair (state colour)	2	For one door. 1959-69.
10	14E6518	DOOR POCKET LINERS, pair, grey	1	1959-69.
11	ALE1221	DOOR CHECK STRAP, black	2
	14E4289	DOOR CHECK STRAP, red	2
	14E4291	DOOR CHECK STRAP, green	2
	14E4290	DOOR CHECK STRAP, grey	2
	DC3005	DOOR CHECK STRAP (state colour)	2	Other colours also available; contact us for details.

Rear Trim
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
12	WA3101	REAR QUARTER LINERS, pair, plain (state colour)	1	1959-61.
13	ALE2823/4	REAR QUARTER LINERS, pair, ribbed, black	1	1967-69 (will fit earlier models).
	WA3022	REAR QUARTER LINERS, pair, ribbed (state colour)	1	1959-69.
14	ALE3157/61	COMPANION BOX LINERS, pair, black	1	1967-69 (will fit earlier models).
	WA3023	COMPANION BOX LINERS, pair (state colour)	1	1959-69.
15	ALE2830/1	WHEEL ARCH COVERS, pair, black	1	1967-69 (will fit earlier models).
	WAC3024	WHEEL ARCH COVERS, pair (state colour)	1	1959-69.
16	ALE3153	REAR PARCEL SHELF LINER, black	1	1967-69 (will fit earlier models).
	WA3021	REAR PARCEL SHELF LINER (state colour)	1	1959-69.

Riley Elf and Wolseley Hornet
1961-69
Complete interior trim kits are not available for the Elf and Hornet; please determine which style of each component is correct for your car and order the components individually.

For Elf and Hornet models, the following colour schemes are available: Black, Dove Grey, Porcelain Green, Powder Blue, Tartan Red.

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
17	-	INTERIOR TRIM KIT	1	Not available; purchase trim items separately as required.

Fascia Trim
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
18	DBL005	DASH LINERS, pair, black	1	Wolseley Hornet Mk I and Mk II; without fresh air vents.
	DT3021	DASH LINERS, pair (state colour)	1	Wolseley Hornet Mk I and Mk II; without fresh air vents.
19	ALA4970/1	DASH LINERS, pair, black	1	Riley Elf Mk I and Mk II; without fresh air vents.
20	ALE2582/3	DASH LINERS, pair, black	1	Riley Elf and Wolseley Hornet Mk III; with fresh air vents.
	DT3026	DASH LINERS, pair (state colour)	1	Riley Elf and Wolseley Hornet Mk III; with fresh air vents.
21	VGA1995	FRONT PARCEL SHELF LINER, black	1	Wolseley Hornet; cut to fit for Riley Elf models.
	DT3022	FRONT PARCEL SHELF LINER (state colour)	1
22	UDL001	STIFFENING BOARD SET, front parcel shelf liner	1
The UDL001 stiffening board set may be used under the parcel shelf liner to support it if the parcel shelf itself has been replaced with the later, non-solid type.

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
23	ALA5275	FASCIA PANEL COVER, vinyl, black	1

Door Trim
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
24	DP3219	DOOR LINERS, pair (state colour)	1	1961-67. Mk I and Mk II models with external hinge doors.
25	DP3221	DOOR LINERS, pair (state colour)	1	1967-69. Mk III models with internal hinge doors.
26	ALE1222/3	DOOR FILLET PANELS, pair, black	2	For one door. 1961-67, Mk I and Mk II models.
	DP3022	DOOR FILLET PANELS, pair (state colour)	2	For one door. 1961-67, Mk I and Mk II models.
27	14E6518	DOOR POCKET LINERS, pair, grey	1	1961-67. Mk I and Mk II models with external hinge doors.
28	ALE1221	DOOR CHECK STRAP, black	2	1961-67. Mk I and Mk II models with external hinge doors.
	14E4289	DOOR CHECK STRAP, red	2	1961-67. Mk I and Mk II models with external hinge doors.
	14E4291	DOOR CHECK STRAP, green	2	1961-67. Mk I and Mk II models with external hinge doors.
	14E4290	DOOR CHECK STRAP, grey	2	1961-67. Mk I and Mk II models with external hinge doors.
	DC3005	DOOR CHECK STRAP (state colour)	2	Other colours also available; contact us for details.

Rear Trim
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
29	WA3216	REAR QUARTER LINERS, pair (state colour)	1	1961-67. Mk I and Mk II models with external hinge doors.
30	WA3217	REAR QUARTER LINERS, pair (state colour)	1	1967-69. Mk III models with internal hinge doors.
31	WA3023	COMPANION BOX LINERS, pair (state colour)	1	1961-67. Mk I and Mk II models with external hinge doors.
	WA3218	COMPANION BOX LINERS, pair (state colour)	1	1967-69. Mk III models with internal hinge doors.
32	WA3215	REAR PARCEL SHELF LINER (state colour)	1

Interior Trim Fixings
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
33	14A7634	BRACKET, dash liner retaining	4	When heater not fitted.
34	PMZ306	SCREW, bracket to upper fascia	4
35	WL700101	WASHER, locking	4
36	FNZ103	NUT	4
37	RTP604	SCREW, self tapping, liner to dash	2
38	FWP306	WASHER, cup	2
39	TFS106	FASTENER, Tenax, liner to instruments	2	Riley Elf.
40	TFP1006	PEG, Tenax fastener	2	Riley Elf.
41	WL700101	WASHER, locking	2	Riley Elf.
42	RTP603	SCREW, self tapping, liner to door pocket	6
43	FWP306	WASHER, cup	6
44	RTP603	SCREW, door and rear quarter liners to body	12	If required.
45	GFK7509	CLIP, door liner to door	24	Riley Elf and Wolseley Hornet Mk III.
46A	DCSK001	FITTING KIT, for two check straps	1	Includes retainers, brackets, stiffeners, screws, washers and nuts.
46B	14A764	RETAINER, check strap	4
47	14A6745	BRACKET, check strap	2
48	RMP414	SCREW, check strap to A post	4
49	14A6744	STIFFENER, check strap	2
50	RMP414	SCREW, check strap to door	4
51	LWZ204	WASHER, locking	4
52	FNZ104	NUT	4

Interior Trim Fittings
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
53	24A1517	STRIP, safety, top of door flange covering	2
54	24A1169	MOULDING, door pocket	2
55	EYC10048	CLIP, moulding to door pocket	8
56	ADA3733	PROTECTOR, door pocket, RH	1	1959-62, Morris saloons.
57	ADA3734	PROTECTOR, door pocket, LH	1	1959-62, Morris saloons.
58	DAP1023	RIVET, protector to door pocket	4	1959-62, Morris saloons.
59	ADA3735	MOULDING, protector, RH	1	1959-62, Morris saloons.
60	ADA3736	MOULDING, protector, LH	1	1959-62, Morris saloons.
61	BDA499	RIVET, moulding and protector to door pocket	14	1959-62, Morris saloons.
62	14A7176	PROTECTOR, door pocket, RH	1	1959-62, Austin saloons. 1962-69, all models.
63	14A7177	PROTECTOR, door pocket, LH	1	1959-62, Austin saloons. 1962-69, all models.
64	DAP1023	RIVET, protector to door pocket	8	1959-62, Austin saloons. 1962-69, all models.
65	2H7274	PLUG, check strap screw hole in door pocket	4	Use in redundant holes at other end of pocket.
66	ALA5828	MOULDING, companion box, RH	1
67	ALA5829	MOULDING, companion box, LH	1
68	EYC10048	CLIP, moulding to companion box	4
69	53K3241	SCREW, moulding to companion box	4
70	8D2490	ASHTRAY, companion box	2
71	24A1276	MOULDING, rear seat pan edge	1
72	ARA71	ASHTRAY, floor tunnel	1	If fitted.
73	ADA2484	HOLDER, floor tunnel ashtray	1
74	RU608123	RIVET, holder to floor tunnel	4
