Headlinings and sun visors

Headlinings
Headlinings are supplied ready to attach to the listing rails or frame, whichever your year and model of Mini was originally equipped with. Note that some headlining kits include the C post liners - this is only the case where the kits are described as such.
The earlier style headlinings (Mk I and Mk II saloons, Traveller/Estate up to 1980, plus Van and Pick Up) were originally supplied fitted to their frames - this is no longer possible, as the frames are not available. Please take care when removing your old headlining from its frame, to ensure that the frame remains in the best possible condition to use with the new headlining.
Austin and Morris Mk I and Mk II Saloon
1959-69

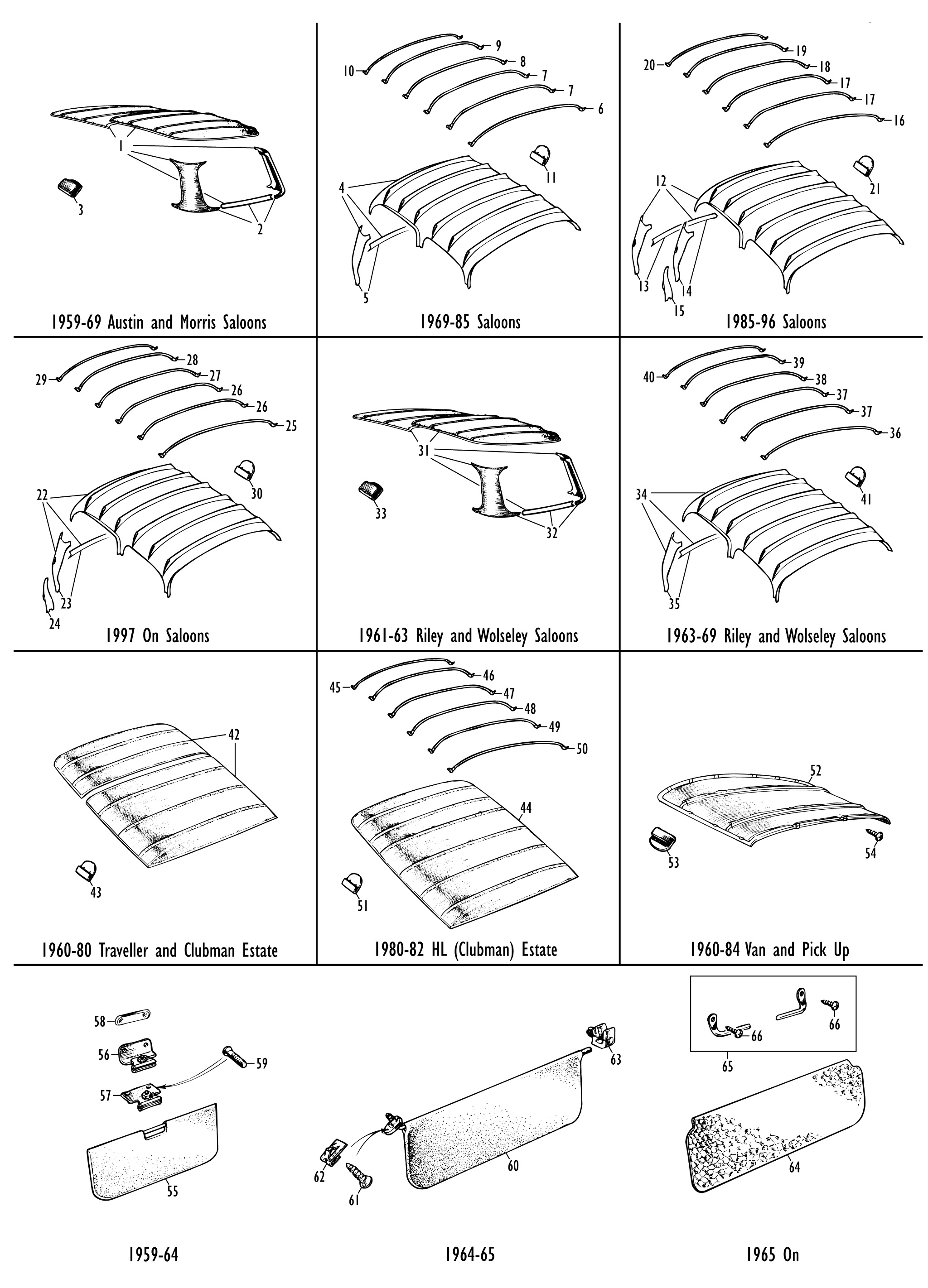

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	SHL002	HEADLINING KIT, with C post liners, Light Grey	1	1959-60, Mk I Saloon.
	SHL001	HEADLINING KIT, with C post liners, Cream Crackle	1	1960-67, Mk I Saloon.
	HL3010C	HEADLINING KIT, with C post liners, Cream Crackle	1	1967-69, Mk II Saloon.
2	14E3246/7	C POST LINERS, pair, Light Grey	1	1959-60, Mk I Saloon.
	14E4220/1	C POST LINERS, pair, Cream Crackle	1	1960-67, Mk I Saloon.
	CPK002	C POST LINERS, pair, Cream Crackle	1	1967-69, Mk II Saloon.
3	14A8094	CLIP, headlining	25

Mini Mk III, Mk IV and Clubman Saloon
1969-85
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
4	PAM5401LNG	HEADLINING KIT, with C post liners, Light Grey	1	1969-77.
	PAM5401AP	HEADLINING KIT, with C post liners, Off White	1	1977-85.
	HL3012A	HEADLINING KIT, with C post liners, Black	1	Alternative.
	HL3012C	HEADLINING KIT, with C post liners, Cream Crackle	1	Alternative.
5	CP3012P	C POST LINERS, pair, Light Grey	1	1969-77.
	YGX3558/9AP	C POST LINERS, pair, Off White	1	1977-85.
6	EEB100060	LISTING RAIL, red coded	1	Front position.
7	EEB100070	LISTING RAIL, white coded	2	Second and third positions from front.
8	EEB100080	LISTING RAIL, black coded	1	Third position from rear.
9	EEB100090	LISTING RAIL, blue coded	1	Second position from rear.
10	EEB100100	LISTING RAIL, yellow coded	1	Rear position.
11	14A8094	CLIP, headlining	13

Mini Mk IV and SPi (Single Point Injection) Saloon
1985-96
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
12	PAM5401AP	HEADLINING KIT, with C post liners, Off White	1	1985-92; vinyl. Not electric fabric sunroof.
	PAM5401LNG	HEADLINING KIT, with C post liners, Light Grey	1	1992-96; vinyl. Not electric fabric sunroof.
	EDB102320LNG	HEADLINING KIT, without C post liners, Light Grey	1	1992-96; vinyl. Electric fabric sunroof.
	HL3012A	HEADLINING KIT, with C post liners, Black	1	Alternative; vinyl. Not electric fabric sunroof.
	HL3012C	HEADLINING KIT, with C post liners, Cream Crackle	1	Alternative; vinyl. Not electric fabric sunroof.
13	YGX3558/9AP	C POST LINERS, pair, Off White	1	1985-92.
	EMR10002/3LNG	C POST LINERS, pair, Cool Grey	1	1992-95.
14	EMR100440/50LNG	C POST LINERS, upper, pair, Cool Grey	1	1995-96.
15	EMN100310PMA	C POST LINER, lower, Black	2	1995-96.
16	EEB100060	LISTING RAIL, red coded	1	Front position.
17	EEB100070	LISTING RAIL, white coded	2	Second and third positions from front.
18	EEB100080	LISTING RAIL, black coded	1	Third position from rear.
19	EEB100090	LISTING RAIL, blue coded	1	Second position from rear.
20	EEB100100	LISTING RAIL, yellow coded	1	Rear position.
21	14A8094	CLIP, headlining	13

Mini MPi (Multi Point Injection) and SPi (Single Point Injection) Saloon
1997 On
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
22	EDB103030LNG	HEADLINING KIT, Cool Grey	1	Cloth. Not electric fabric sunroof.
	EDF101810LNG	HEADLINING KIT, Cool Grey	1	Cloth. Electric fabric sunroof.
23	EMR100440/50LNG	C POST LINERS, upper, pair, Cool Grey	1
24	EMN100310PMA	C POST LINER, lower, Black, not handed	2	1997-98.
	EMN100680PMA	C POST LINER, lower, Black, RH	1	1998 on.
	EMN100690PMA	C POST LINER, lower, Black, LH	1	1998 on.
25	EEB100060	LISTING RAIL, red coded	1	Front position.
26	EEB100070	LISTING RAIL, white coded	2	Second and third positions from front.
27	EEB100080	LISTING RAIL, black coded	1	Third position from rear.
28	EEB100090	LISTING RAIL, blue coded	1	Second position from rear.
29	EEB100100	LISTING RAIL, yellow coded	1	Rear position.
30	14A8094	CLIP, headlining	13

Riley Elf and Wolseley Hornet Mk I
1961-63
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
31	SHL001	HEADLINING KIT, with C post liners, Cream Crackle	1
32	14E4220/1	C POST LINERS, pair, Cream Crackle	1
33	14A8094	CLIP, headlining	25

Riley Elf and Wolseley Hornet Mk II and Mk III
1963-69
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
34	ALE662	HEADLINING KIT, with C post liners, Cream Crackle	1	1963-69, Mk II and Mk III Saloons.
35	ALA5332/3	C POST LINERS, pair, Cream Crackle	1	1963-69, Mk II and Mk III Saloons.
36	EEB100060	LISTING RAIL, red coded	1	Front position.
37	EEB100070	LISTING RAIL, white coded	2	Second and third positions from front.
38	EEB100080	LISTING RAIL, black coded	1	Third position from rear.
39	EEB100090	LISTING RAIL, blue coded	1	Second position from rear.
40	EEB100100	LISTING RAIL, yellow coded	1	Rear position.
41	14A8094	CLIP, headlining	13

Traveller and Clubman Estate
1960-80
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
42	HL3020C	HEADLINING KIT, two piece, Cream Crackle	1	1960-69, Traveller.
	HL3020P	HEADLINING KIT, two piece, Pale Grey	1	1969-77, Clubman Estate.
	EHL001	HEADLINING KIT, two piece, Off White	1	1977-80, Clubman Estate.
43	14A8094	CLIP, headlining	25

HL (Clubman) Estate
1980-82
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
44	YGX1092AP	HEADLINING KIT, one piece, Off White	1
45	CZH4284	LISTING RAIL, front	1
46	CZH4286	LISTING RAIL, second position from front	1
47	CZH4288	LISTING RAIL, third position from front	1
48	CZH4290	LISTING RAIL, third position from rear	1
49	CZH4292	LISTING RAIL, second position from rear	1
50	CZH4294	LISTING RAIL, rear	1
51	14A8094	CLIP, headlining	13

Van and Pick Up
1960-84
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
52	HL3018C	HEADLINING KIT, Cream Crackle	1	1960-69, Van.
	HL3018P	HEADLINING KIT, Pale Grey	1	1969-84, Van.
	HL3024C	HEADLINING KIT, Cream Crackle	1	1961-69, Pick Up.
	HL3024P	HEADLINING KIT, Pale Grey	1	1969-83, Pick Up.
53	14A8094	CLIP, headlining	10
54	RTZ604	SCREW, self tapping, headlining to body	2	Van.

Sun Visors
Single Hinge, Centre Mounted Type
1959-64
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
55	14E5946	SUN VISOR, centre mounted, Light Grey	A/R	1959-60.
	14E5497	SUN VISOR, centre mounted, Cream Crackle	A/R	1960-64.
56	SVBA	BRACKET ASSEMBLY, sun visor, angled	A/R	1959-61; one per sun visor.
57	SVBMK1S	BRACKET ASSEMBLY, sun visor, straight	A/R	1961-64; one per sun visor.
58	14A795	PLATE, blanking	A/R	When sunvisor not fitted.
59	RMZ308	SCREW, bracket or blanking plate to header rail	4

Single Hinge, Swivelling Type
1964-65
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
60	24E3339	SUN VISOR ASS'Y, swivelling, Cream Crackle	2
61	RTP1005	SCREW, self tapping, sun visor bracket to header rail	2
62	PFS510	NUT, spire	2
63	ADA4370	CLIP, sun visor to header rail and cant rail	4

Twin Hinge Type
1965 On
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
64	24E3382	SUN VISOR, hinged, Cream Crackle, without mirror	2	1965-69.
	VGJ4014	SUN VISOR, hinged, Pale Grey, without mirror	2/1	1969-77; qty. reduced if optional passenger's visor with mirror fitted.
	VGJ2747	SUN VISOR, hinged, Pale Grey, with mirror	1	1969-77; optional for passenger's side.
	YGX4173AP	SUN VISOR, hinged, Off White/Black, without mirror	1	1977-92; driver's side.
	YGX2394AP	SUN VISOR, hinged, Off White/Black, with mirror	1	1977-92; passenger's side.
	YGX4173LNG	SUN VISOR, hinged, Cool Grey, without mirror	1	1992 on; driver's side.
	YGX2394LNG	SUN VISOR, hinged, Cool Grey, with mirror	1	1992 on; passenger's side.
65	SV2021	HINGE KIT, sunvisors, car set	1	Includes fixing screws.
66	PTP804	SCREW, self tapping, sun visor hinge to header rail	4	1965-95.
	AD610053	SCREW, self tapping, sun visor hinge to header rail	4	1995 on.
