Harnesses - traveller, clubman estate, van and pick up

Harnesses
Some degree of rationalisation has of course taken place here - to make and stock all the original permutations of harness would not stack up as a
sound business proposition! As a result, although much care and development has gone into this range, there will probably be occasions when
you come to connect your nice new harness and you've got a wire or two left over. Don't worry, you may not have made a mistake; it's just that it's
sometimes not viable to make different harnesses for cars built in the same period with only detail differences between them. Tucking
unnecessary wires away out of sight is usually not a problem, but if you are at all worried, call us and one of our workshop staff would be happy to
advise you.
Having said all that, we can get a harness made in bespoke fashion for you if required, if you intend to mix and match different electrical equipment
on your car. We would normally take payment beforehand for this service, as a guarantee that we don't get left with an odd product on our shelves.
The harnesses listed here for models up to 1971 are designed for use on a car fitted with a dynamo. Equivalent harnesses for cars fitted with the
optional AC type alternator are available; please contact us for details.

All our harnesses are cloth or PVC bound (or both in a couple of instances), following faithfully the appearance of the original harness in your car.

Main and Body Harness Sets
MkI, MkII Traveller, 1960-69; Clubman Estate, 1969-75. Van and Pick Up, 1960-74
Traveller, 1960-67

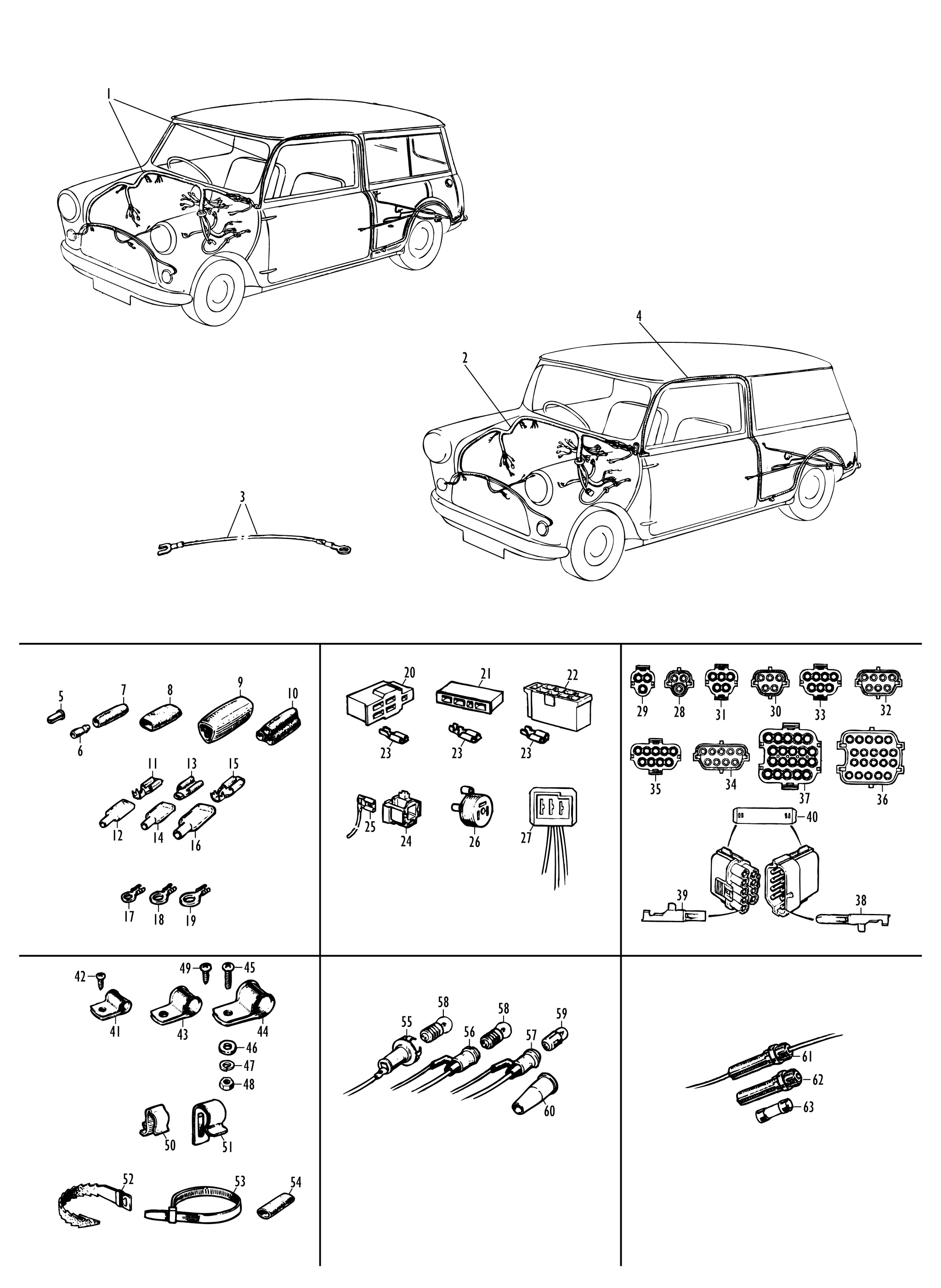

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	3221	HARNESS, three piece set, cloth bound	1	1960-61; floor start, no temperature gauge.
	3222	HARNESS, three piece set, cloth bound	1	1961-64; floor start, with temperature gauge.
	3225	HARNESS, three piece set, cloth bound	1	1964-67; ignition switch start, temp. gauge, oil filter warning light.

Traveller, 1967-69
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
	3211	HARNESS, two piece set, PVC bound	1	1967-69; three wires to wiper motor, no temperature gauge.
	3212	HARNESS, two piece set, PVC bound	1	1969; four wires to wiper motor, no temperature gauge.
	3214	HARNESS, two piece set, PVC bound	1	1969; four wires to wiper motor, temperature gauge.

Clubman Estate, 1969-75
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
	AN101C	HARNESS, two piece set, PVC bound	1	1969-71; fascia switch start, dynamo.
	AN115C	HARNESS, two piece set, PVC bound	1	1972-75; steering lock start, alternator, no reversing lights.

Van and Pick Up, 1960-67
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
	3221	HARNESS, three piece set, cloth bound	1	1960-64; floor start.
	3225	HARNESS, three piece set, cloth bound	1	1964-67; ignition switch start.

Van and Pick Up, 1967-71
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
	3211	HARNESS, two piece set, PVC bound	1	1967-69; three wires to wiper motor.
	3212	HARNESS, two piece set, PVC bound	1	1969-71; four wires to wiper motor, fascia start, dynamo.
	AN109C	HARNESS, two piece set, PVC bound	1	1972-75; single line brakes, steering column start, alternator.

Main Harnesses
Clubman and HL Estate, 1976-82; Van and Pick Up, 1976-84
Clubman and HL Estate, 1976-82
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
2	AN120	HARNESS, main and dash, PVC bound	1	1976-79; offset instruments, reversing lights, no rear fog lamps.
	AN136	HARNESS, main and dash, PVC bound	1	1979-82; offset instruments, reversing lights, rear fog lamps.
3	AFU2824	CABLE, wiper motor earth	1	1980-82.

Van and Pick Up, 1976-84
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
	AN125	HARNESS, main and dash, PVC bound	1	1976-79; twin line brakes, no rear fog lamps.
	AN131	HARNESS, main and dash, PVC bound	1	1979-80; twin line brakes, rear fog lamps on sidelight circuit.
	AN133	HARNESS, main and dash, PVC bound	1	1980-81; rear fog lamps on headlamp circuit.
	AN153	HARNESS, main and dash, PVC bound	1	1981-84.
	AFU2824	CABLE, wiper motor earth	1	1980-84.

Body Harnesses
Clubman and HL Estate, 1976-82; Van and Pick Up, 1976-84
Clubman and HL Estate, 1976-82
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
4	AN149	HARNESS, body, PVC bound	1	1976-82; includes rear fog lamp wiring for 1979-82 models.

Van, 1976-84
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
	AN146	HARNESS, body, PVC bound	1	1976-84; includes rear fog lamp wiring for 1979-84 models.

Pick Up, 1976-83
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
	AN140	HARNESS, body, PVC bound	1	1976-79; without rear fog lamp.
	AN147	HARNESS, body, PVC bound	1	1979-83; with rear fog lamp.

Connectors
Bullet, Lucar Spade and Eyelet Connectors
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
5	27H6713	CONNECTOR, bullet, male	A/R	Push-fit wiring for lamp terminals, etc.
6	2H2704	CONNECTOR, bullet, male	A/R	Solder-fit wiring for in-line connections.
7	2H3406	CONNECTOR, bullet, female, single line	A/R
8	2H2617	CONNECTOR, bullet, female, twin line	A/R	With common contacts.
9	BHA4460	CONNECTOR, bullet, female, triple line	A/R	With common contacts.
10	2H4992	CONNECTOR, bullet, female, triple line	A/R	With insulated contacts.
11	13H2050	CONNECTOR, Lucar, 3/16" wide	A/R
12	BMK449	SLEEVE, insulating, 3/16" connector	A/R
13	RTC220A	CONNECTOR, Lucar, 1/4" wide	A/R
14	511269	SLEEVE, insulating, 1/4" connector	A/R
15	47H5419	CONNECTOR, Lucar, 3/8" wide	A/R
16	515399	SLEEVE, insulating, 3/8" connector	A/R
17	17H5287	EYELET, 3/16" hole	A/R
18	2H4528	EYELET, 1/4" hole	A/R
19	13H625	EYELET, 5/16" hole	A/R

Plug Connectors - Lucar Spade
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
20	BMK1409	PLUG MOULDING, connector, 5 way	A/R
21	BMK1398	PLUG MOULDING, connector, 4 way	A/R
22	13H2041	PLUG MOULDING, connector, 9 way	A/R
23	13H2050	CONNECTOR, 5, 4 and 9 way plugs, Lucar, 3/16" wide	A/R
24	5L433	PLUG MOULDING, flasher unit	A/R
25	27H4949	CONNECTOR, flasher unit, Lucar	A/R
26	600226A	PLUG ASSEMBLY, flasher unit	A/R	Alternative.
27	GEU250	PLUG KIT, alternator	A/R

Plug Connectors - Pin
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
28	AFU1439	PLUG MOULDING, connector, 3 pin	A/R
29	AFU1455	PLUG MOULDING, connector, 3 socket	A/R
30	AFU1443	PLUG MOULDING, connector, 5 pin	A/R
31	AFU1459	PLUG MOULDING, connector, 5 socket	A/R
32	AFU1448	PLUG MOULDING, connector, 7 pin	A/R
33	AFU1463	PLUG MOULDING, connector, 7 socket	A/R
34	AFU1451	PLUG MOULDING, connector, 9 pin	A/R
35	AFU1467	PLUG MOULDING, connector, 9 socket	A/R
36	ADU7054	PLUG MOULDING, connector, 20 pin	A/R
37	ADU7057	PLUG MOULDING, connector, 20 socket	A/R
38	ADU7058	PIN, connector, small	A/R	For 0.5 to 1mm cable.
	ADU7537	PIN, connector, medium	A/R	For 1.5 to 2mm cable.
	ADU9563	PIN, connector, large	A/R	For 2.5 to 3mm cable.
39	ADU7061	SOCKET, connector, small	A/R	For 0.5 to 1mm cable.
	ADU7538	SOCKET, connector, medium	A/R	For 1.5 to 2mm cable.
	ADU9564	SOCKET, connector, large	A/R	For 2.5 to 3mm cable.
40	AFU1470	CLIP, plug connection securing, 3 pin plugs	A/R
	AFU1471	CLIP, plug connection securing, 5 pin plugs	A/R
	AFU1472	CLIP, plug connection securing, 7 pin plugs	A/R
	AFU1473	CLIP, plug connection securing, 9 pin plugs	A/R
	AFU7050	CLIP, plug connection securing, 20 pin plugs	A/R

Clips and Fixings
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
41	PCR505	P CLIP, harness securing, small	A/R	5/16" cable hole, 5/32" screw hole.
42	AB606031	SCREW, self tapping, small P clip	A/R
43	PCR607	P CLIP, harness securing, medium	A/R	3/8" cable hole, 7/32" screw hole.
44	PCR807	P CLIP, harness securing, large	A/R	1/2" cable hole, 7/32" screw hole.
45	PMZ308	SCREW, medium and large P clips	A/R
46	PWZ103	WASHER, plain	A/R
47	WL700101	WASHER, locking	A/R
48	FNZ103	NUT	A/R
49	GHF425	SCREW, self tapping, medium and large P clips	A/R	Alternative fixing.
50	5L90	CLIP, side, harness to bracket or body panel	A/R
51	BMK1216A	CLIP, harness to inner wing	A/R
52	13H6107	CLEAT, fir tree	A/R
53	GHF1265	TIE WRAP, 3 1/2" long	A/R
	GHF1266	TIE WRAP, 5 1/4" long	A/R
	GHF1267	TIE WRAP, 8 3/4" long	A/R
	GHF1268	TIE WRAP, 12 1/4" long	A/R
54	503213	SLEEVE, insulating, wiring tag	A/R	Use on tags welded to body.

Bulb Holders and Bulbs
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
55	AEU1313A	BULB HOLDER, panel and warning lights	A/R	Claw fitting, screw-in bulb. Not insulated (single wire).
	SP460	BULB HOLDER, indicator tell-tale	A/R	Claw fitting, screw-in bulb. Insulated (twin wire).
56	13H1927	BULB HOLDER, panel and warning lights	A/R	Sleeve fitting, screw-in bulb.
57	13H1926	BULB HOLDER, panel and warning lights	A/R	Sleeve fitting, bayonet bulb.
58	GLB987	BULB, screw-in, panel and warning lights	A/R
59	GLB281	BULB, bayonet, panel and warning lights	A/R
60	ACG5185	SLEEVE, bulbholder	A/R

In-Line Fuses
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
61	UKC4446	FUSE HOLDER ASSEMBLY, in-line	A/R	Includes cables.
62	27H3588	FUSE HOLDER, in-line	A/R	Does not include cables.
63	GFS5	FUSE, 5 amp	A/R
	GFS10	FUSE, 10 amp	A/R
	GFS15	FUSE, 15 amp	A/R
	GFS20	FUSE, 20 amp	A/R
	GFS25	FUSE, 25 amp	A/R
	GFS35	FUSE, 35 amp	A/R
	GFS50	FUSE, 50 amp	A/R

Heated Windscreen Harness and Relay Kit
If you are one of the many Mini owners exasperated by the inefficiencies of the Mini windscreen demister system, you may be considering fitment of
one of our heated windscreens (24A2236H for clear glass or CZH4048H for green tinted, pre-1997 models only). If so, please note that we can also
supply a harness and relay kit to take the guesswork out of wiring it into your Mini's electrical system:
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
64	HWWK01	HARNESS AND RELAY KIT, heated windscreen	1
