Harnesses - saloon and cabriolet 1989 on

Harnesses
As with the harnesses section for 1959-88 saloons, some rationalisation has had to take place here - though not as much, since many harnesses
for 1989 on models are still available (at time of writing...). A fair number are not normally stocked items, however, and would be supplied as
special orders. Please see the price list for details.
All harnesses listed in this section are assembled using the distinctive thin-walled cables used on Minis from 1989 onwards (the Mini never
saw the use of ribbon harnesses introduced on most other cars from the late 1970s).

Main Harnesses
City, Sprite, Mayfair (Including Cabriolet) and Cooper Saloon, 1989-94

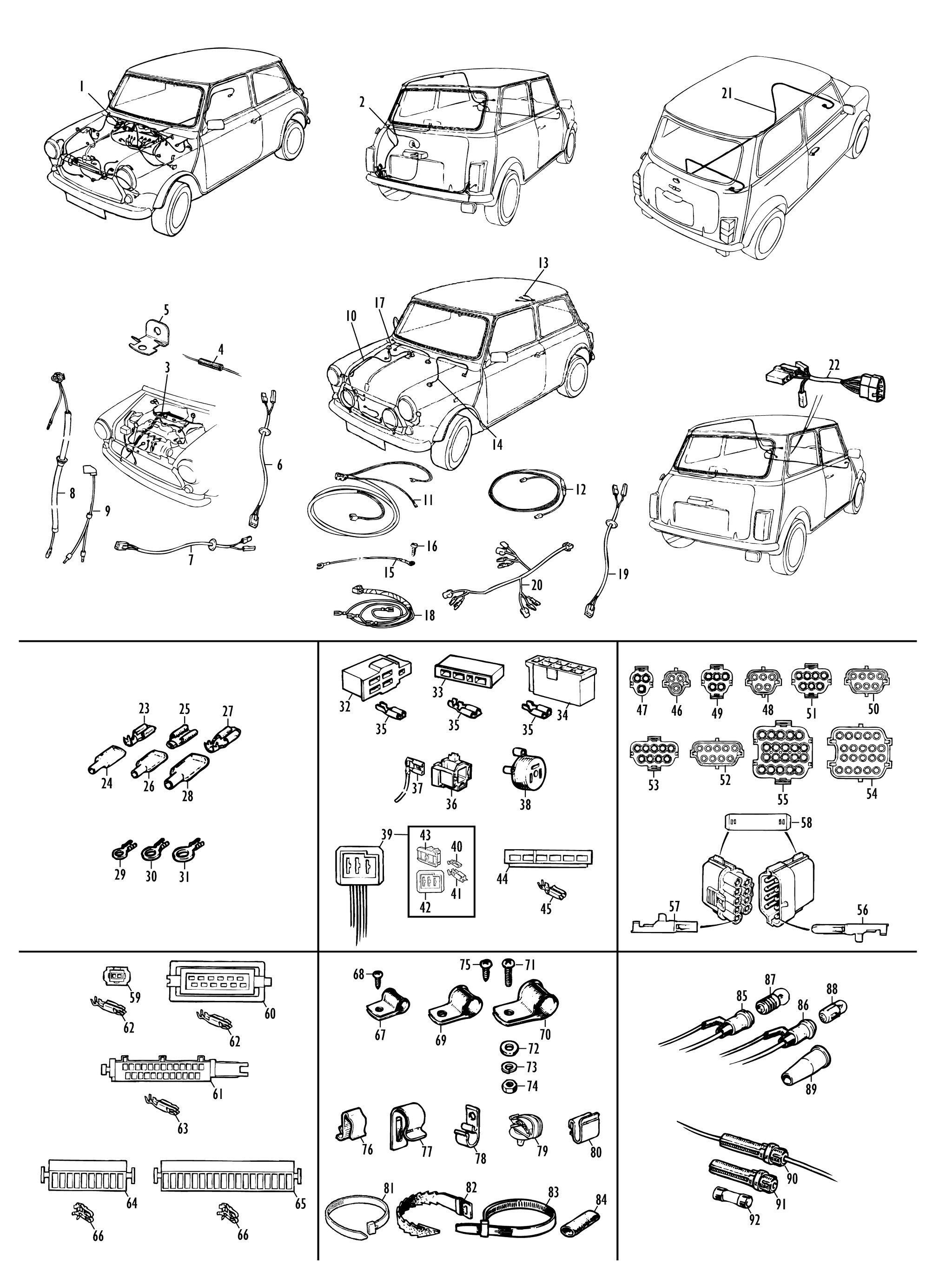

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	AN168	HARNESS, main and dash, PVC bound	1	1989-92; RHD, City and Mayfair 998cc, manual, dim-dip, thin-wall cables.
	YMC10655	HARNESS, main and dash, PVC bound	1	1989-92; LHD, City and Mayfair 998cc, manual, no dim-dip, thin-wall cables.
	YMC11912	HARNESS, main and dash, PVC bound	1	1989-92; RHD, City and Mayfair 998cc, automatic, dim-dip, thin-wall cables.
	YMC12010	HARNESS, main and dash, PVC bound	1	1992-93; Sprite and Mayfair 1275cc, carb., dim-dip, one horn terminal.
	YMC12011	HARNESS, main and dash, PVC bound	1	1992-93; Sprite and Mayfair 1275cc, carb., no dim-dip, one horn terminal.
	YMC120980	HARNESS, main and dash, PVC bound	1	1993-94; Sprite and Mayfair 1275cc, carb., dim-dip, two horn terminals, no alarm.
	YMC11987	HARNESS, main and dash, PVC bound	1	1993-94; Sprite and Mayfair 1275cc, carb., dim-dip, two horn terminals, alarm, no immobiliser.
	YMC120890	HARNESS, main and dash, PVC bound	1	1993-94; Sprite and Mayfair 1275cc, carb., no dim-dip, two horn terminals, alarm, no immobiliser.
	YMC11388	HARNESS, main and dash, PVC bound	1	1990; RHD, Cooper limited edition (RSP).
	YMC11389	HARNESS, main and dash, PVC bound	1	1990; LHD, Cooper limited edition (RSP).
	AN176	HARNESS, main and dash, PVC bound	1	1990-91; RHD, Cooper, carburetter.
	YMC11389	HARNESS, main and dash, PVC bound	1	1990-91; LHD, Cooper, carburetter.
	YMC11857	HARNESS, main and dash, PVC bound	1	1991-93; Cooper, Spi, dim-dip, one horn terminal, no alarm.
	YMC11858	HARNESS, main and dash, PVC bound	1	1991-93; Cooper, Spi, no dim-dip, one horn terminal, no alarm.
	YMC11986	HARNESS, main and dash, PVC bound	1	1993-94; Cooper, SPi, dim-dip, two horn terminals, alarm, no immobiliser.
	YMC120880	HARNESS, main and dash, PVC bound	1	1993-94; Cooper, SPi, no dim-dip, two horn terminals, alarm, no immobiliser.

Sprite, Mayfair (Including Cabriolet) and Cooper Saloon, 1994-96
From 1994, harnesses were non-model specific, irrespective of two or three gauge fascia fitment:
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
	YMC121660	HARNESS, main and dash, PVC bound	1	1994-95; dim-dip, alarm, no immobiliser.
	YMC121670	HARNESS, main and dash, PVC bound	1	1994-95; no dim-dip, alarm, no immobiliser.
	YMC124590	HARNESS, main and dash, PVC bound	1	1995-96; dim-dip, alarm, immobiliser, no air conditioning.
	YMC124980	HARNESS, main and dash, PVC bound	1	1995-96; no dim-dip, alarm, immobiliser, no air conditioning.
	YMC124990	HARNESS, main and dash, PVC bound	1	1995-96; no dim-dip, alarm, immobiliser, air conditioning.

Mini Standard and Cooper Saloon, 1997 On
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
	YMC127000	HARNESS, main and dash, PVC bound	1	1997-99; MPi. SPi Japan, no air conditioning. Caerbont centre gauges.
	YMC133540	HARNESS, main and dash, PVC bound	1	1999 on; MPi, no high level stop lamp. VDO centre gauges.
	YMC004010	HARNESS, main and dash, PVC bound	1	1999 on; MPi, high level stop lamp. VDO centre gauges.
	YMC127020	HARNESS, main and dash, PVC bound	1	1997-99; SPi Japan, air conditioning. Caerbont centre gauges.
	YMC135210	HARNESS, main and dash, PVC bound	1	1999 on; SPi Japan, air conditioning. VDO centre gauges.

Body Harnesses
City, Sprite, Mayfair (Including Cabriolet) and Cooper Saloon, 1989-96
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
2	AN169	HARNESS, body, PVC bound	1	1989-90; City and Mayfair, 998cc, RHD, with speaker wires, thin-wall cables.
	AN166	HARNESS, body, PVC bound	1	1989-90; City and Mayfair, 998cc, LHD, with speaker wires, thin-wall cables.
	AN177	HARNESS, body, PVC bound	1	1990-92; City and Mayfair, 998cc, RHD, no speaker wires.
	YMD10259	HARNESS, body, PVC bound	1	1990-92; City and Mayfair, 998cc, LHD, no speaker wires.
	YMD10733	HARNESS, body, PVC bound	1	1992-93; Sprite and Mayfair, 1275cc carb., plugs into washer pump's harness in boot, no alarm.
	YMD10745	HARNESS, body, PVC bound	1	1993-94; Sprite and Mayfair, 1275cc carb., plugs directly into washer pump in boot, no alarm.
	YMD10718	HARNESS, body, PVC bound	1	1993-94; Sprite and Mayfair, 1275cc carb., plugs directly into washer pump in boot, alarm.
	YMD10717	HARNESS, body, PVC bound	1	1994-96; Sprite and Mayfair, SPi, alarm.
	AN177	HARNESS, body, PVC bound	1	1990-91; Cooper limited edition (RSP), Cooper carb., RHD, no speaker wires.
	YMD10259	HARNESS, body, PVC bound	1	1990-91; Cooper limited edition (RSP), Cooper carb., LHD, no speaker wires.
	YMD10562	HARNESS, body, PVC bound	1	1991-93; Cooper SPi, plugs into washer pump's harness in boot, no alarm.
	YMD10744	HARNESS, body, PVC bound	1	1993; Cooper SPi, plugs directly into washer pump in boot, no alarm.
	YMD10717	HARNESS, body, PVC bound	1	1993-96; Cooper SPi, plugs directly into washer pump in boot, alarm.
	YMD109660	HARNESS, body, PVC bound	1	1997-99; MPi, no high level stop lamp.
	YMD000360	HARNESS, body, PVC bound	1	1999 on; MPi, high level stop lamp.
	YMD110460	HARNESS, body, PVC bound	1	1997 on; SPi Japan.

Engine Harnesses
Separate engine harnesses were fitted to all fuel injection models:
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
3	YSB10219	HARNESS, engine	1	1991-92; SPi manual models.
	YSB10220	HARNESS, engine	1	1991-92; SPi automatic models.
	YSB10265	HARNESS, engine	1	1992-94; SPi manual models.
	YSB10266	HARNESS, engine	1	1992-94; SPi automatic models.
	YSB103970	HARNESS, engine	1	1994-96; SPi manual models. Not air conditioning.
	YSB103980	HARNESS, engine	1	1994-96; SPi automatic models. Not air conditioning.
	YSB104010	HARNESS, engine	1	1994-96; SPi air conditioned models (Japan).
	YSB104630	HARNESS, engine	1	1997-98; MPi models.
	YSB106650	HARNESS, engine	1	1999 on; MPi models.
	YSB104760	HARNESS, engine	1	1997 on; SPi manual models (Japan).
	YSB104770	HARNESS, engine	1	1997 on; SPi automatic models (Japan).
4	ACU3642	DIODE, engine harness	1	Spi models.
5	YQU10276	BRACKET, harness to engine	1	Spi models.

Extension Harnesses and Cables
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
6	YMV10064	HARNESS, supplementary, distributor to coil	1	1989-96.
7	YMV10079	HARNESS, reverse light switch	1	1991 on; SPi manual models.
	YMX10010	HARNESS, reverse light switch and lever illumination	1	1991 on; SPi automatic models.
8	YMV10010	HARNESS, vacuum advance cut out valve	1	1989-93; carburetter models, Germany.
9	HAM4269	HARNESS, fourth gear switch	1	1989-93; carburetter models, Germany.
	HAM4237	HARNESS, reverse and fourth gear switch	1	1989-93; carburetter models, Germany.
10	YMQ10103	HARNESS, driving lamps	1	1990; Cooper limited edition (RSP).
	YMZ10015	HARNESS, driving lamps (no alarm)	1	1990-93; Cooper carb., Cooper SPi.
	YMZ100200	HARNESS, driving lamps (with alarm)	1	1993-96; Cooper SPi.
	YMZ100610	HARNESS, driving and fog lamps	1	1994, Monte Carlo limited edition.
	YMZ100880	HARNESS, driving and fog lamps	1	1997 on.
11	YMK10055	HARNESS, sunroof motor to switch	1	1992 on; British Open Classic, optional on other models.
12	YMQ10166	HARNESS, sunroof switch to fusebox	1	1992 on; British Open Classic, optional on other models.
13	YMY100790	HARNESS, interior light	1	1993-94; alarm without immobiliser models.
	YMY100960	HARNESS, interior light	1	1995 on; alarm with immobiliser models.
14	YMQ10155	HARNESS, microwave to alarm	1	1993-94; alarm without immobiliser models.
	YMQ102340	HARNESS, microwave to alarm	1	1995 on; alarm with immobiliser models.
15	AFU2824	CABLE, wiper motor earth	1
16	AB610031	SCREW, self tapping, earthing cable to body	1
17	YMV100930	HARNESS, headlamp levelling to main harness	1	1993 on, if fitted.
18	YMN102030	HARNESS, boot lid	1	1997 on.
19	YMQ105690	HARNESS, water temperature sensor	1	1997 on; modification harness for fan sensor GTR208.
20	YMQ102930	HARNESS, fascia, clock	1	1997 on; models without oil temperature or battery condition gauges.
	YMQ102840	HARNESS, fascia, clock, oil and battery gauges	1	1997-99; for Caerbont manufactured gauges. Not air conditioning models.
	YMQ104960	HARNESS, fascia, clock, oil and battery gauges	1	1999 on; for VDO manufactured gauges. Not air conditioning models.
	YMQ10156	HARNESS, fascia	1	1992 on; Japan including air conditioning models.
21	YNE100770	HARNESS, SRS airbag circuit	1	1997 on.
22	YMW10006	HARNESS, R361 radio cassette	1	1989-92.
	YMW10008	HARNESS, R570 radio cassette	1	1989-92.
	YMW10009	HARNESS, R652 radio cassette	1	1989-92.
	YMW10014	HARNESS, R682 radio cassette	1	1990; Cooper limited edition (RSP).
	YMW10017	HARNESS, R682 or R652 radio cassette	1	1990-92.
	YMW10018	HARNESS, R750 or R552 radio cassette	1	1990-92.
	YMW10025	HARNESS, Clarion radio cassette	1	1993-96; Cabriolet.
	YMW100270	HARNESS, R682 or R652 radio cassette	1	1992-96.
	YMW100260	HARNESS, R750 or R552 radio cassette	1	1992-96.
	YMW100280	HARNESS, R660/R750/R552 radio cassette and clock	1	1993 on.
	YMQ104530	HARNESS, compact disc player	1	1997 on.

Connectors
Lucar Spade and Eyelet Connectors
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
23	13H2050	CONNECTOR, Lucar, 3/16" wide	A/R
24	BMK449	SLEEVE, insulating, 3/16" connector	A/R
25	RTC220A	CONNECTOR, Lucar, 1/4" wide	A/R
26	511269	SLEEVE, insulating, 1/4" connector	A/R
27	47H5419	CONNECTOR, Lucar, 3/8" wide	A/R
28	515399	SLEEVE, insulating, 3/8" connector	A/R
29	17H5287	EYELET, 3/16" hole	A/R
30	2H4528	EYELET, 1/4" hole	A/R
31	13H625	EYELET, 5/16" hole	A/R

Plug Connectors - Lucar Spade
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
32	BMK1409	PLUG MOULDING, connector, 5 way	A/R
33	BMK1398	PLUG MOULDING, connector, 4 way	A/R
34	13H2041	PLUG MOULDING, connector, 9 way	A/R
35	13H2050	CONNECTOR, 5, 4 and 9 way plugs, Lucar, 3/16" wide	A/R
36	5L433	PLUG MOULDING, flasher unit	A/R
37	27H4949	CONNECTOR, flasher unit, Lucar	A/R
38	600226A	PLUG ASSEMBLY, flasher unit	A/R	Alternative.
39	GEU250	PLUG KIT, alternator	A/R
40	13H8783	CONNECTOR, plug, small	1	Included in GEU250 plug kit.
41	ALU1003	CONNECTOR, plug, large	2	Included in GEU250 plug kit.
42	ADU4669	HOUSING, plug	1	Included in GEU250 plug kit.
43	ADU4670	COVER, plug	1	Included in GEU250 plug kit.
44	ADU6575	PLUG MOULDING, connector, 6 way, RH rear lamp	A/R
	ADU7096	PLUG MOULDING, connector, 6 way, LH rear lamp	A/R
45	83H1000	CONNECTOR, Lucar	A/R

Plug Connectors - Pin
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
46	AFU1439	PLUG MOULDING, connector, 3 pin	A/R
47	AFU1455	PLUG MOULDING, connector, 3 socket	A/R
48	AFU1443	PLUG MOULDING, connector, 5 pin	A/R
49	AFU1459	PLUG MOULDING, connector, 5 socket	A/R
50	AFU1448	PLUG MOULDING, connector, 7 pin	A/R
51	AFU1463	PLUG MOULDING, connector, 7 socket	A/R
52	AFU1451	PLUG MOULDING, connector, 9 pin	A/R
53	AFU1467	PLUG MOULDING, connector, 9 socket	A/R
54	ADU7054	PLUG MOULDING, connector, 20 pin	A/R
55	ADU7057	PLUG MOULDING, connector, 20 socket	A/R
56	ADU7058	PIN, connector, small	A/R	For 0.5 to 1mm cable.
	ADU7537	PIN, connector, medium	A/R	For 1.5 to 2mm cable.
	ADU9563	PIN, connector, large	A/R	For 2.5 to 3mm cable.
57	ADU7061	SOCKET, connector, small	A/R	For 0.5 to 1mm cable.
	ADU7538	SOCKET, connector, medium	A/R	For 1.5 to 2mm cable.
	ADU9564	SOCKET, connector, large	A/R	For 2.5 to 3mm cable.
58	AFU1470	CLIP, plug connection securing, 3 pin plugs	A/R
	AFU1471	CLIP, plug connection securing, 5 pin plugs	A/R
	AFU1472	CLIP, plug connection securing, 7 pin plugs	A/R
	AFU1473	CLIP, plug connection securing, 9 pin plugs	A/R
	AFU7050	CLIP, plug connection securing, 20 pin plugs	A/R

Plug Connectors - Jaw
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
59	AGU1043A	PLUG MOULDING, connector, 2 way, crank sensor	A/R	1991 on, fuel injection models.
60	ADU7463	PLUG MOULDING, connector, 12 way, ECU module	A/R	1991 on, fuel injection models.
61	ADU8224	PLUG MOULDING, connector, 25 way, ECU	A/R	1991 on, fuel injection models.
62	ADU8153	JAW, edge connector	A/R
63	AFU3228	CONNECTOR, terminal	A/R	For 25 way ECU plug.
64	ADU6971	PLUG MOULDING, connector, 10 way, ECU	A/R	1991 on, fuel injection models.
65	ADU7026	PLUG MOULDING, connector, 18 way, ECU	A/R	1991 on, fuel injection models.
66	ADU7972	JAW, edge connector, small	A/R	For 0.5 to 1mm cable.
	ADU7973	JAW, edge connector, large	A/R	For 1.1 to 2mm cable.

Clips and Fixings
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
67	PCR505	P CLIP, harness securing, small	A/R	5/16" cable hole, 5/32" screw hole.
68	AB606031	SCREW, self tapping, small P clip	A/R
69	PCR607	P CLIP, harness securing, medium	A/R	3/8" cable hole, 7/32" screw hole.
70	PCR807	P CLIP, harness securing, large	A/R	1/2" cable hole, 7/32" screw hole.
71	PMZ308	SCREW, medium and large P clips	A/R
72	PWZ103	WASHER, plain	A/R
73	WL700101	WASHER, locking	A/R
74	FNZ103	NUT	A/R
75	GHF425	SCREW, self tapping, medium and large P clips	A/R	Alternative fixing.
76	5L90	CLIP, side, harness to bracket or body panel	A/R
77	BMK1216A	CLIP, harness to inner wing	A/R
78	YQR10046	CLIP, engine harness to dash	1	1991-96; SPi models.
79	YYC10038	CLIP, engine harness to dash	1	1997 on; MPi models and SPi (Japan).
80	ADU8063	CLIP, front lamp cables to front panel	A/R	1997 on.
81	YYD10005	CLIP, harness to bonnet lock platform	2
82	13H6107	CLEAT, fir tree	A/R
83	GHF1265	TIE WRAP, 3 1/2" long	A/R
	GHF1266	TIE WRAP, 5 1/4" long	A/R
	GHF1267	TIE WRAP, 8 3/4" long	A/R
	GHF1268	TIE WRAP, 12 1/4" long	A/R
84	503213	SLEEVE, insulating, wiring tag	A/R	Use on tags welded to body.

Bulb Holders and Bulbs
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
85	13H1927	BULB HOLDER, warning lights	A/R	Sleeve fitting, screw-in bulb.
86	13H1926	BULB HOLDER, warning lights	A/R	Sleeve fitting, bayonet bulb.
87	GLB987	BULB, screw-in, warning lights	A/R
88	GLB281	BULB, bayonet, warning lights	A/R
89	ACG5185	SLEEVE, bulbholder	A/R

In-Line Fuses
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
90	UKC4446	FUSE HOLDER ASSEMBLY, in-line	A/R	Includes cables.
91	27H3588	FUSE HOLDER, in-line	A/R	Does not include cables.
92	GFS5	FUSE, 5 amp	A/R
	GFS10	FUSE, 10 amp	A/R
	GFS15	FUSE, 15 amp	A/R
	GFS20	FUSE, 20 amp	A/R
	GFS25	FUSE, 25 amp	A/R
	GFS35	FUSE, 35 amp	A/R
	GFS50	FUSE, 50 amp	A/R

Request a free catalogue

Click here

Body panel
catalogue

Click here

Accessories
catalogue

Monday:	09.00am to 17.30pm
Tuesday:	09.00am to 17.30pm
Wednesday:	09.00am to 17.30pm
Thursday:	09.00am to 17.30pm
Friday:	09.00am to 17.30pm
Saturday:	09.00pm to 12.00pm

Harnesses - saloon and cabriolet 1989 on

TIE WRAP- 370mm LONG x 4.8mm WIDE

CABLE TIE-WHITE,HARNESS TO SLAM PANEL

TIE-ANCHOR-ENGINE HARNESS TO BULKHEAD-'97 ON

HARNESS-ENGINE-'99 ON- MPI

HARNESS-ENGINE-'97 ON-SPI AUTO.- JAPAN

HARNESS-ENGINE-'97 ON SPI MANUAL-JAPAN

HARNESS-ENGINE-'97-'98-MPI

HARNESS-ENGINE-'94-'96-SPI-WITH AIR CON.

HARNESS-ENGINE-'94-'96-SPI AUTO. NOT AIR CON.

HARNESS-ENGINE-'94-'96-SPI MANUAL-NOT AIR CON.

HARNESS-ENGINE-'92-'94 SPI AUTO.

HARNESS-ENGINE-'92-'94 SPI MANUAL

We accept
