Harnesses - saloon 1959-89

Harnesses
Some degree of rationalisation has of course taken place here - to make and stock all the original permutations of harness would not stack up as a
sound business proposition! As a result, although much care and development has gone into this range, there will probably be occasions when
you come to connect your nice new harness and you've got a wire or two left over. Don't worry, you may not have made a mistake; it's just that it's
sometimes not viable to make different harnesses for cars built in the same period with only detail differences between them. Tucking
unnecessary wires away out of sight is usually not a problem, but if you are at all worried, call us and one of our workshop staff would be happy to
advise you.
Having said all that, we can get a harness made in bespoke fashion for you if required, if you intend to mix and match different electrical equipment
on your car. We would normally take payment beforehand for this service, as a guarantee that we don't get left with an odd product on our shelves.
The harnesses listed here for models up to 1971 are designed for use on a car fitted with a dynamo. Equivalent harnesses for cars fitted with the
optional AC type alternator are available; please contact us for details.

All our harnesses are cloth or PVC bound (or both in a couple of instances), following faithfully the appearance of the original harness in your car.

Main and Body Harness Sets
MkI, MkII and MkIII, 1959-74; Clubman, 1969-75
Standard and Deluxe Saloon, 1959-67

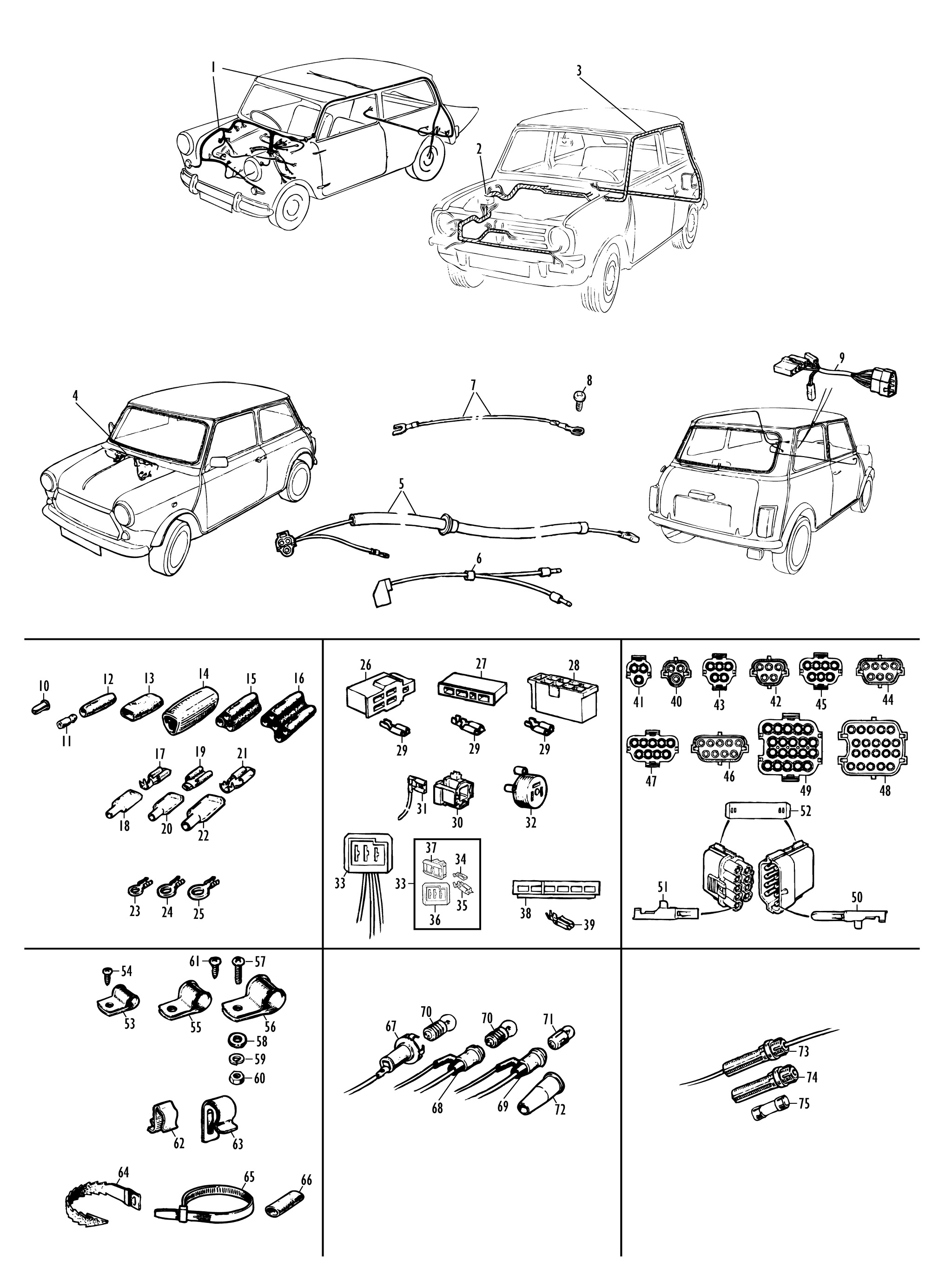

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	320	HARNESS, three piece set, cloth bound	1	1959-60; floor start, coil on flywheel housing.
	321	HARNESS, four piece set, cloth bound	1	1960-64; floor start, coil on dynamo, no oil filter warning light.
	325	HARNESS, four piece set, cloth bound	1	1964-67; ignition switch start, oil filter warning light.

Standard Saloon, 1967-69
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
	311	HARNESS, two piece set, PVC and cloth bound	1	1967-69; three wires to wiper motor, front harness PVC, rear cloth.
	312	HARNESS, two piece set, PVC bound	1	1969; four wires to wiper motor, all PVC harness.
	316	HARNESS, two piece set, PVC bound	1	Late 1969; no oil filter warning light.

Super, Super Deluxe and Cooper Saloon, 1961-67
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
	323	HARNESS, four piece set, cloth bound	1	1961-64; ignition switch start, temp. gauge, no oil filter warning light.
	325	HARNESS, four piece set, cloth bound	1	1964-67; ignition switch start, temp. gauge, oil filter warning light.

Super Deluxe and Cooper Saloon, 1967-69
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
	308	HARNESS, two piece set, PVC and cloth bound	1	1967-69; three wires to wiper motor, front harness PVC, rear cloth.
	314	HARNESS, two piece set, PVC bound	1	1969; four wires to wiper motor, all PVC harness.
	317	HARNESS, two piece set, PVC bound	1	Late 1969; no oil filter warning light.

Cooper S Saloon, 1963-67
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
	324	HARNESS, four piece set, cloth bound	1	1963-64; no oil filter warning light.
	326	HARNESS, four piece set, cloth bound	1	1964-67; oil filter warning light.

Cooper S Saloon, 1967-69
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
	327	HARNESS, three piece set, cloth bound	1	1967-69; three wires to wiper motor.
	309	HARNESS, two piece set, PVC and cloth bound	1	1969; four wires to wiper motor, front harness PVC, rear cloth.

Cooper S Saloon, 1969-71
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
	310	HARNESS, two piece set, PVC bound	1	1969-71; fascia switch start, dynamo.

Riley and Wolseley Models, 1961-69
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
	RY30C	HARNESS, three piece set, cloth bound	1	1961-64, Riley Mk I and II; no oil filter warning light.
	WY26C	HARNESS, three piece set, cloth bound	1	1961-62, Wolseley Mk I.
	WY27C	HARNESS, three piece set, cloth bound	1	1963-64, Wolseley Mk II; no oil filter warning light.
	RY31C	HARNESS, three piece set, cloth bound	1	1964-67, Riley and Wolseley; oil filter warning light, dip switch on floor.
	RY33C	HARNESS, two piece set, cloth bound	1	1967-69, Riley and Wolseley; oil filter warning light, dip switch on steering column.

850 and 1000 Saloon, 1969-74
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
	316	HARNESS, two piece set, PVC bound	1	1969-71; fascia switch start, dynamo, no temperature gauge.
	317	HARNESS, two piece set, PVC bound	1	1969-71; fascia switch start, dynamo, temperature gauge.
	AN110C	HARNESS, two piece set, PVC bound	1	1972-74; steering lock start, alternator, no temperature gauge.
	AN111C	HARNESS, two piece set, PVC bound	1	1972-74; steering lock start, alternator, temperature gauge.

Clubman Saloon, 1969-75
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
	AN101C	HARNESS, two piece set, PVC bound	1	1969-71; fascia switch start, dynamo.
	AN115C	HARNESS, two piece set, PVC bound	1	1972-75; steering lock start, alternator, no reversing lights.

1275 GT, 1969-75
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
	AN127C	HARNESS, two piece set, PVC bound	1	1969-71; fascia switch start, dynamo.
	AN129C	HARNESS, two piece set, PVC bound	1	1972-75; steering lock start, alternator, no reversing lights.

Main Harnesses
MkIII, MkIV, 1974 On; Clubman, 1976 On
850 (plus City), 1000 and Special Saloon, 1974-80
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
2	AN123	HARNESS, main and dash, PVC bound	1	1974-75; heated rear window, no temperature gauge, no reversing lights.
	AN121	HARNESS, main and dash, PVC bound	1	1974-75; heated rear window, temperature gauge, no reversing lights.
	AN125	HARNESS, main and dash, PVC bound	1	1976-79; reverse lights, twin line brakes, no temp. gauge, no rear fog lamps.
	AN124	HARNESS, main and dash, PVC bound	1	1976-79; reverse lights, twin line brakes, temp. gauge, no rear fog lamps.
	AN143	HARNESS, main and dash, PVC bound	1	1977-80; Canadian specification.
	AN131	HARNESS, main and dash, PVC bound	1	1979-80; twin line brakes, no temp. gauge, rear fog lamps on sidelight circuit.
	AN132	HARNESS, main and dash, PVC bound	1	1979-80; twin line brakes, temp. gauge, rear fog lamps on sidelight circuit.
	AN137	HARNESS, main and dash, PVC bound	1	1979; Mini Special, offset instruments, side repeater lamps.

Clubman Saloon, 1976-80
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
	AN120	HARNESS, main and dash, PVC bound	1	1976-79; offset instruments, reversing lights, no rear fog lamps.
	AN136	HARNESS, main and dash, PVC bound	1	1979-80; offset instruments, reversing lights, rear fog lamps.

1275 GT Saloon, 1976-80
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
	AN126	HARNESS, main and dash, PVC bound	1	1976-79; offset instruments, reversing lights, no rear fog lamps.
	AN130	HARNESS, main and dash, PVC bound	1	1979-80; offset instruments, reversing lights, rear fog lamps.

City, City E, HL, HLE and Mayfair Saloon, 1980-88
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
	AN133	HARNESS, main and dash, PVC bound	1	1980-81; centre instruments, no temp. gauge, rear fog lamps on headlamp circuit.
	AN134	HARNESS, main and dash, PVC bound	1	1980-81; centre instruments, temp. gauge, rear fog lamps on headlamp circuit.
	AN153	HARNESS, main and dash, PVC bound	1	1981-85; centre instruments, no temp. gauge, no side repeater lamps.
	AN128	HARNESS, main and dash, PVC bound	1	1980-85; offset instruments, inertia starter, no side repeater lamps.
	AN154	HARNESS, main and dash, PVC bound	1	1985; offset instruments, inertia starter, side repeater lamps.
	AN156	HARNESS, main and dash, PVC bound	1	1985-88; RHD, pre-engaged starter, side repeater lamps, no dim-dip.
	HAM4074	HARNESS, main and dash, PVC bound	1	1985-88; LHD, pre-engaged starter, side repeater lamps, no dim-dip.
	AN158	HARNESS, main and dash, PVC bound	1	1988; RHD, dim-dip, traditional thick-wall cables.
	HAM4625	HARNESS, main and dash, PVC bound	1	1988; LHD, no dim-dip, traditional thick-wall cables.

Body Harnesses
MkIII, MkIV, 1972 On; Clubman, 1976 On
850, 1000, City, City E, HL, HLE, Mayfair, Clubman Saloon, 1972-88
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
3	5L875	HARNESS, body, PVC bound	1	1972-75; heated rear window, no rear fog lamps.
	AN141	HARNESS, body, PVC bound	1	1974-79; reversing lights (for 1976-79 models), no rear fog lamps.
	AN144	HARNESS, body, PVC bound	1	1979-80; reversing lights, rear fog lamps on sidelight circuit.
	AN145	HARNESS, body, PVC bound	1	1980-85; reversing lights, rear fog lamps on headlamp circuit.
	AN165	HARNESS, body, PVC bound	1	1985-88; City, traditional thick-wall cables, plugs for tail lamps.
	AN166	HARNESS, body, PVC bound	1	1985-88; Mayfair, traditional thick-wall cables, plugs for tail lamps.

Extension Harnesses and Cables
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
4	SP138	HARNESS, centre mounted speedometer and gauges	1	Included in main and body harness sets.
This is the extension harness you'll need if you're going for the retro look and fitting centre instruments to a car with the later offset instrument pack.

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
5	HAM4238	HARNESS, vacuum advance cut out valve	1	1985-88; Germany, not brake servo models.
	YMV10010	HARNESS, vacuum advance cut out valve	1	1988; Germany, brake servo models.
6	HAM4269	HARNESS, fourth gear switch	1	1985-88; Germany.
	HAM4237	HARNESS, reverse and fourth gear switch	1	1985-88; Germany.
7	AFU2824	CABLE, wiper motor earth	1
8	AB610031	SCREW, self tapping, earthing cable to body	1
9	DRC8925	HARNESS, R280 push-button radio cassette	1	1985-88; Mayfair models.
Connectors
Bullet, Lucar Spade and Eyelet Connectors
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
10	27H6713	CONNECTOR, bullet, male	A/R	Push-fit wiring for lamp terminals, etc.
11	2H2704	CONNECTOR, bullet, male	A/R	Solder-fit wiring for in-line connections.
12	2H3406	CONNECTOR, bullet, female, single line	A/R
13	2H2617	CONNECTOR, bullet, female, twin line	A/R	With common contacts.
14	BHA4460	CONNECTOR, bullet, female, triple line	A/R	With common contacts.
15	2H4992	CONNECTOR, bullet, female, triple line	A/R	With insulated contacts.
16	AAA4690	CONNECTOR, bullet, female, five way	A/R	With insulated contacts.
17	13H2050	CONNECTOR, Lucar, 3/16" wide	A/R
18	BMK449	SLEEVE, insulating, 3/16" connector	A/R
19	RTC220A	CONNECTOR, Lucar, 1/4" wide	A/R
20	511269	SLEEVE, insulating, 1/4" connector	A/R
21	47H5419	CONNECTOR, Lucar, 3/8" wide	A/R
22	515399	SLEEVE, insulating, 3/8" connector	A/R
23	17H5287	EYELET, 3/16" hole	A/R
24	2H4528	EYELET, 1/4" hole	A/R
25	13H625	EYELET, 5/16" hole	A/R

Plug Connectors - Lucar Spade
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
26	BMK1409	PLUG MOULDING, connector, 5 way	A/R
27	BMK1398	PLUG MOULDING, connector, 4 way	A/R
28	13H2041	PLUG MOULDING, connector, 9 way	A/R
29	13H2050	CONNECTOR, 5, 4 and 9 way plugs, Lucar, 3/16" wide	A/R
30	5L433	PLUG MOULDING, flasher unit	A/R
31	27H4949	CONNECTOR, flasher unit, Lucar	A/R
32	600226A	PLUG ASSEMBLY, flasher unit	A/R	Alternative.
33	GEU250	PLUG KIT, alternator	A/R
34	13H8783	CONNECTOR, plug, small	1	Included in GEU250 plug kit.
35	ALU1003	CONNECTOR, plug, large	2	Included in GEU250 plug kit.
36	ADU4669	HOUSING, plug	1	Included in GEU250 plug kit.
37	ADU4670	COVER, plug	1	Included in GEU250 plug kit.
38	ADU6575	PLUG MOULDING, connector, 6 way, RH rear lamp	A/R	1985 on.
	ADU7096	PLUG MOULDING, connector, 6 way, LH rear lamp	A/R	1985 on.
39	83H1000	CONNECTOR, Lucar	A/R

Plug Connectors - Pin
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
40	AFU1439	PLUG MOULDING, connector, 3 pin	A/R
41	AFU1455	PLUG MOULDING, connector, 3 socket	A/R
42	AFU1443	PLUG MOULDING, connector, 5 pin	A/R
43	AFU1459	PLUG MOULDING, connector, 5 socket	A/R
44	AFU1448	PLUG MOULDING, connector, 7 pin	A/R
45	AFU1463	PLUG MOULDING, connector, 7 socket	A/R
46	AFU1451	PLUG MOULDING, connector, 9 pin	A/R
47	AFU1467	PLUG MOULDING, connector, 9 socket	A/R
48	ADU7054	PLUG MOULDING, connector, 20 pin	A/R
49	ADU7057	PLUG MOULDING, connector, 20 socket	A/R
50	ADU7058	PIN, connector, small	A/R	For 0.5 to 1mm cable.
	ADU7537	PIN, connector, medium	A/R	For 1.5 to 2mm cable.
	ADU9563	PIN, connector, large	A/R	For 2.5 to 3mm cable.
51	ADU7061	SOCKET, connector, small	A/R	For 0.5 to 1mm cable.
	ADU7538	SOCKET, connector, medium	A/R	For 1.5 to 2mm cable.
	ADU9564	SOCKET, connector, large	A/R	For 2.5 to 3mm cable.
52	AFU1470	CLIP, plug connection securing, 3 pin plugs	A/R
	AFU1471	CLIP, plug connection securing, 5 pin plugs	A/R
	AFU1472	CLIP, plug connection securing, 7 pin plugs	A/R
	AFU1473	CLIP, plug connection securing, 9 pin plugs	A/R
	AFU7050	CLIP, plug connection securing, 20 pin plugs	A/R

Clips and Fixings
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
53	PCR505	P CLIP, harness securing, small	A/R	5/16" cable hole, 5/32" screw hole.
54	AB606031	SCREW, self tapping, small P clip	A/R
55	PCR607	P CLIP, harness securing, medium	A/R	3/8" cable hole, 7/32" screw hole.
56	PCR807	P CLIP, harness securing, large	A/R	1/2" cable hole, 7/32" screw hole.
57	PMZ308	SCREW, medium and large P clips	A/R
58	PWZ103	WASHER, plain	A/R
59	WL700101	WASHER, locking	A/R
60	FNZ103	NUT	A/R
61	GHF425	SCREW, self tapping, medium and large P clips	A/R	Alternative fixing.
62	5L90	CLIP, side, harness to bracket or body panel	A/R
63	BMK1216A	CLIP, harness to inner wing	A/R
64	13H6107	CLEAT, fir tree	A/R
65	GHF1265	TIE WRAP, 3 1/2" long	A/R
	GHF1266	TIE WRAP, 5 1/4" long	A/R
	GHF1267	TIE WRAP, 8 3/4" long	A/R
	GHF1268	TIE WRAP, 12 1/4" long	A/R
66	503213	SLEEVE, insulating, wiring tag	A/R	Use on tags welded to body.

Bulb Holders and Bulbs
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
67	AEU1313A	BULB HOLDER, panel and warning lights	A/R	Claw fitting, screw-in bulb. Not insulated (single wire).
	SP460	BULB HOLDER, indicator tell-tale	A/R	Claw fitting, screw-in bulb. Insulated (twin wire).
68	13H1927	BULB HOLDER, panel and warning lights	A/R	Sleeve fitting, screw-in bulb.
69	13H1926	BULB HOLDER, panel and warning lights	A/R	Sleeve fitting, bayonet bulb.
70	GLB987	BULB, screw-in, panel and warning lights	A/R
71	GLB281	BULB, bayonet, panel and warning lights	A/R
72	ACG5185	SLEEVE, bulbholder	A/R

In-Line Fuses
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
73	UKC4446	FUSE HOLDER ASSEMBLY, in-line	A/R	Includes cables.
74	27H3588	FUSE HOLDER, in-line	A/R	Does not include cables.
75	GFS5	FUSE, 5 amp	A/R
	GFS10	FUSE, 10 amp	A/R
	GFS15	FUSE, 15 amp	A/R
	GFS20	FUSE, 20 amp	A/R
	GFS25	FUSE, 25 amp	A/R
	GFS35	FUSE, 35 amp	A/R
	GFS50	FUSE, 50 amp	A/R

Request a free catalogue

Click here

Body panel
catalogue

Click here

Accessories
catalogue

Monday:	09.00am to 17.30pm
Tuesday:	09.00am to 17.30pm
Wednesday:	09.00am to 17.30pm
Thursday:	09.00am to 17.30pm
Friday:	09.00am to 17.30pm
Saturday:	09.00pm to 12.00pm

Harnesses - saloon 1959-89

HARNESS-BODY GEN BMC 850/998 SALOON 72-75 HEATED RR. SCREEN

TIE WRAP- 370mm LONG x 4.8mm WIDE

HARNESS-VAC. ADV. CUT OUT VALVE-1988-GERMANY+SERVO

USE: RY30C

HARNESS-FULL CLOTH BOUND-WOLSELEY HORNET '61-'63

FUSE HOLDER - IN-LINE

BULB HOLDER, INSULATED-INDICATOR TELL-TALE, ETC

WIRING LOOM-CONVERTS OFFSET INSTRUMENTS TO CENTRE TYPE.

HARNESS-FULL-CLOTH BOUND-RILEY ELF-'67-'69

HARNESS-FULL-CLOTH BOUND-RILEY ELF -'64-'67

HARNESS-FULL-CLOTH BOUND- RILEY ELF-'61-'64

CONNECTOR-LUCAS-1/4'' WIDE

We accept
