Fuses, flasher units and relays

Fuse Boxes and Fuses
Fuse Box 1959-75 (Two Fuse)

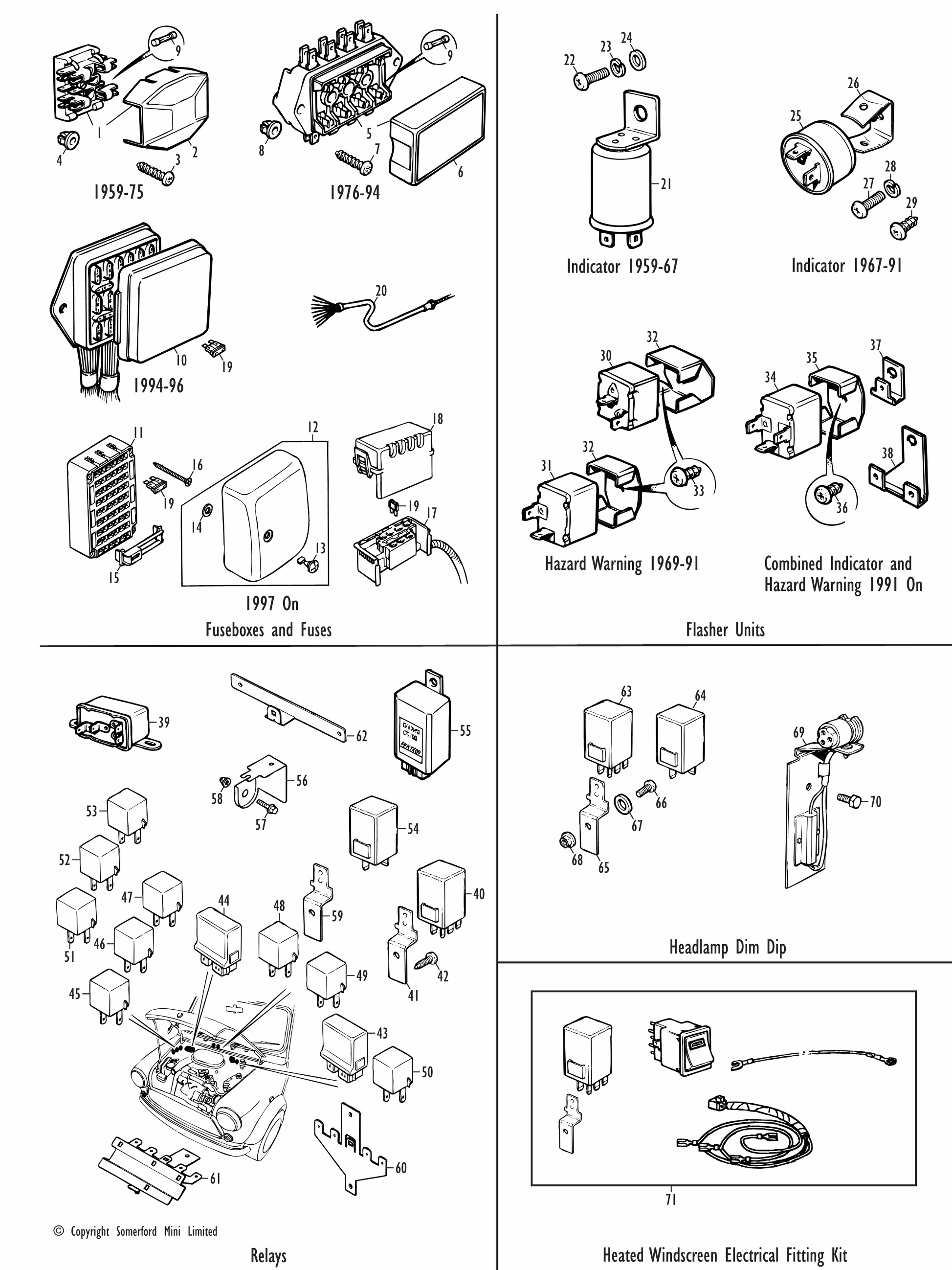

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	606253A	FUSE BOX ASSEMBLY, Lucas 4FJ	1
2	505158A	LID, fuse box	1	Included in fuse box assembly.
3	PTZ1006	SCREW, self tapping, fuse box to dash	1
4	GHF1030	NUT, Lokut	1

Fuse Box 1976-94 (Four Fuse)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
5	RTC440A	FUSE BOX ASSEMBLY, Lucas 7FJ	1
6	518995A	LID, fuse box	1
7	AB610081	SCREW, self tapping, fuse box to dash	2
8	GHF1030	NUT, Lokut	2

Glass Fuses 1959-94
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
9	GFS5	FUSE, 5 amp	A/R
	GFS10	FUSE, 10 amp	A/R
	GFS15	FUSE, 15 amp	A/R
	GFS20	FUSE, 20 amp	A/R
	GFS25	FUSE, 25 amp	A/R
	GFS35	FUSE, 35 amp	A/R
	GFS50	FUSE, 50 amp	A/R

Fuse Box 1994-96 (Twenty-Four Fuse)
In common with other Rover and Land Rover models of the mid-1990s, the 1994 Mini fuse box became an integral part of the main wiring harness. Hardly convenient for replacement, this fuse box has never been recognised in Rover Group/MG Rover parts catalogues or workshop manuals. There are no published service part numbers for the fuse box or fuse box lid and currently the only way of getting a replacement fuse box is to purchase the main wiring harness! If anyone has further information relating to this fuse box, Somerford Mini would be extremely interested.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
10	-	FUSE BOX ASSEMBLY	1	Included in 1994-96 main harness.

Fuse Boxes 1997 On
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
11	AFU3103	FUSE BOX, passenger compartment	1
12	YQH100720PMA	LID ASSEMBLY, fuse box	1
13	YZM100050PMA	TURN BUCKLE, lid securing	1	Included in lid assembly.
14	FYF100050	WASHER, rubber, turn buckle	1	Included in lid assembly.
15	YZM100060	SOCKET, turn buckle	1
16	AC108121	SCREW, self tapping, fuse box to bracket	4
17	YQX100040	FUSE BOX, engine compartment	1
18	YQH10001	LID, fuse box	1

Blade Fuses 1997 On
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
19	GFS3110	FUSE, 10 amp	A/R
	GFS3115	FUSE, 15 amp	A/R
	GFS3120	FUSE, 20 amp	A/R
	GFS3430	FUSE, 30 amp	A/R

Starter Motor Fusible Link 1989 On
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
20	YRF10001	FUSIBLE LINK, starter motor circuit	1

Flasher Units
Indicator Flasher Unit 1959-67
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
21	GFU2103	FLASHER UNIT, indicators	1
22	PMZ408	SCREW, flasher unit to dash	1
23	LWZ204	WASHER, locking	1
24	PWZ104	WASHER, plain	1

Indicator Flasher Units 1967-91
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
25	GFU2124	FLASHER UNIT, indicators	1	For models without side repeater lamps.
	GFU2218	FLASHER UNIT, indicators	1	For models with side repeater lamps.
	GFU2126	FLASHER UNIT, indicators	1	Load sensitive (for trailer use).
26	AEU1055	BRACKET, flasher unit	1
27	PMZ306	SCREW, bracket to dash	1
28	WL700101	WASHER, locking	1
29	PTZ803	SCREW, self tapping, bracket to dash	1	Alternative fixing.

Hazard Warning Flasher Units 1969-91
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
30	13H4666	FLASHER UNIT, hazard warning	1	1969-75.
31	GFU2204	FLASHER UNIT, hazard warning	1	1976-91.
32	BHA4780	BRACKET, flasher unit	1
33	PTZ803	SCREW, self tapping, bracket to dash	1

Indicator and Hazard Warning Combined Flasher Unit 1991 On
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
34	GFU2208	FLASHER UNIT, indicators and hazard warning	1
35	BHA4780	BRACKET, flasher unit	1
36	PTZ803	SCREW, self tapping, bracket to dash	1
37	YQU10244	BRACKET, unit to instrument pack	1
38	YQU10262	BRACKET, unit/relay to instrument pack	1	Alternative.

Relays
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
39	BMK685	FIELD RELAY, alternator	1	1959-69; 11AC alternator.
40	YWB10020	RELAY, with bracket, air conditioning	1	1994-96; air conditioned models (Japan).
41	YQU104190	BRACKET, relay	1
42	PTZ803	SCREW, bracket to crossmember reinforcement	1
43	YWB101080	RELAY, air conditioning	1	1997 on; air conditioned models (Japan).
44	YWB10022	RELAY, engine management	1	1991-96; fuel injected models.
	YWB100970	RELAY, engine management	1	1997 on.
45	YWB10012	RELAY, yellow, headlamps	1	1997 on.
46	YWB10012	RELAY, yellow, horn	1	1997 on.
47	YWB10012	RELAY, yellow, driving lamps	1	1990 on; if fitted.
48	YWB10012	RELAY, yellow, front fog lamps	1	1994 on; if fitted.
49	YWB10012	RELAY, yellow, indicators	1	1989 on.
50	YWB10012	RELAY, yellow, cooling fan	1	1990 on; electric cooling fan fitted models.
51	YWB10012	RELAY, yellow, oxygen sensor	1	1991 on; catalyst fitted models.
52	YWB10012	RELAY, yellow, alarm system	1	1993 on; alarm fitted models.
53	YWB10012	RELAY, yellow, starter motor	1	1985 on.
	YWR10002	COVER, starter motor relay	1
54	GWW1352	RELAY, time delay, intermittent wipe	1	1997 on.
55	YWC104430	CONTROL UNIT, ‘Pektron’, rear fog lamp	1	1999 on.
56	YQU103090	BRACKET, relays	1	1993 on.
57	PTZ1004	SCREW, self tapping, bracket securing	2
58	AK610021	NUT	2
59	YQU103510	BRACKET, relays	1	1994-96; with driving lamps and front fog lamps.
60	YQU104150	BRACKET, relays	1	1997 on.
61	YQU104310	BRACKET, relays	1	1997 on; with exhaust temperature sensor.
62	YQU104390	BRACKET, relays	1	1997 on; with air conditioning (Japan).

Headlamp Dim Dip System
1987-96
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
63	YWC10050	RELAY, dim dip	1	RHD.
64	DRC6525	RELAY, dummy, dim dip	1	LHD.
65	DBP8509	BRACKET, relay	1
66	PMZ306	SCREW, bracket securing	1
67	PWZ103	WASHER, plain	1
68	FNZ103	NUT	1
69	DRC6554	RESISTOR, with bracket	1
70	SH604041	SCREW, bracket securing	1

Heated Windscreen Electrical Fitting Kit
If you are converting your car to a heated windscreen (part nos. 24A2236H for clear laminated heated windscreen, CZH4048H for tinted laminated heated windscreen), you really should consider purchasing our heated windscreen electrical fitting kit to take the guesswork out of wiring it up. The kit includes an appropriate relay with mounting bracket, an illuminated switch (mid-1970s onwards heated rear window switch), wiring harness and earth lead, both ready-fitted with connectors.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
71	HWWK01	ELECTRICAL FITTING KIT, heated windscreen	1
