Fuel systems - carburetter models with electric pump : Somerford Mini

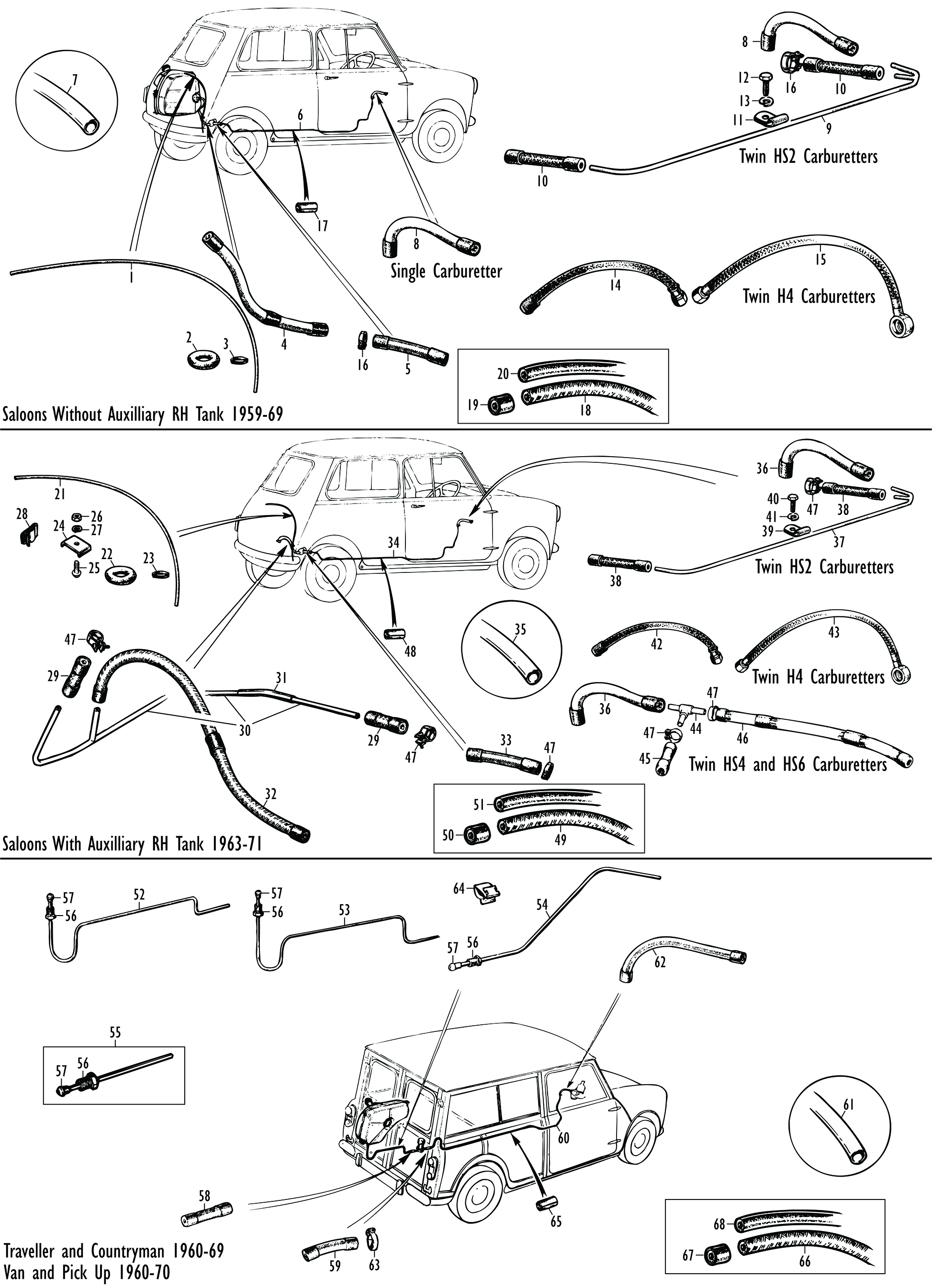

Electric Fuel Pump Systems
Saloons 1959-69; Not Cooper S With Auxiliary Right Hand Fuel Tank
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	BAU2171M	PIPE, fuel tank vent, nylon, per metre	1	31" (790mm) required.
2	2H35	RING, securing vent pipe to supply hose	1
3	RFN405	GROMMET, vent pipe to floor	1
4	21A207	HOSE, Petroflex, tank to pump	1
5	21A208	HOSE, Petroflex, pump to fuel pipe	1
6	21A919	PIPE, pump hose to carburetter hose	1	1959-64; rubber cone suspension.
	21A1581	PIPE, pump hose to carburetter hose	1	1964-69; Hydrolastic suspension.
7	37H7148M	FUEL PIPE, 1/4" dia., steel, per metre	A/R
	HCP014	FUEL PIPE, 1/4" dia., copper, per foot	A/R
	CNF014	FUEL PIPE, 1/4" dia., cunifer, per foot	A/R
8	BRT2413	HOSE, Petroflex, fuel pipe to carburetter	1	Manual gearbox, 1959-64; rubber cone suspension.
	BRT2416	HOSE, Petroflex, fuel pipe to carburetter	1	Manual gearbox, 1964-69; Hydrolastic suspension.
	13H3448	HOSE, Petroflex, fuel pipe to carburetter	1	Automatic gearbox.
9	12A284	PIPE, supply to carburetters	1	Twin HS carburetters only.
10	BRT2406	HOSE, Petroflex, pipe to carburetters	2	Twin HS carburetters only.
11	PCR409	CLIP, pipe to inlet manifold	1	Twin HS carburetters only.
12	SH604051	SCREW, clip to manifold	1	Twin HS carburetters only.
13	LWZ304	WASHER, locking	1	Twin HS carburetters only.
14	ACH8977	HOSE, fuel pipe to carburetter	1	Twin H4 carburetters (Special Tuning) only.
15	AHB9059	HOSE, carburetter to carburetter, RHD	1	Twin H4 carburetters (Special Tuning) only.
	AHB6715	HOSE, carburetter to carburetter, LHD	1	Twin H4 carburetters (Special Tuning) only.
16	ACH5855	CLIP, Petroflex hose	A/R
17	WZV10002	SLEEVE, fuel pipe protection	6

If desired, you can make up your own Petroflex hoses to the lengths you need; it is of course also possible to replace the braided Petroflex hoses with standard 1/4" int. dia. rubber fuel hose:
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
18	SSFH001	HOSE, Petroflex, stainless braided, per metre	A/R	1/4" int. dia.
19	PFC001	END CAP, Petroflex hose	A/R	Two required per hose.
20	FH006	HOSE, rubber, fuel, per metre	A/R	1/4" int. dia.

Cooper S 1963-66 (optional), 1966-71 (standard); With Auxiliary Right Hand Fuel Tank
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
21	BAU2171M	PIPE, fuel tank vents, nylon, per metre	2	54" (1372mm) required.
22	2H35	RING, securing LH tank vent pipe to supply hose	1
23	RFN405	GROMMET, tank vent pipes to floor	2
24	21A64	CLIP, vent pipe to parcel shelf	2	1963-66.
25	PMZ312	SCREW, clip to parcel shelf	2
26	FNZ103	NUT, clip to parcel shelf	2
27	LWZ203	WASHER, locking	2
28	17H9524	CLIP, vent pipe to seat brace	2
29	BRT2805	HOSE, Petroflex, LH and RH tanks to supply pipe	2
30	21A2331	PIPE ASS'Y, supply, RH tank to LH tank	1
31	21A1328	SLEEVE, supply pipe	1
32	21A1324	HOSE, Petroflex, supply pipe to pump	1
33	21A208	HOSE, Petroflex, pump to fuel pipe	1
34	21A919	PIPE, pump hose to carburetter hose	1	1963-64; rubber cone suspension.
	21A1581	PIPE, pump hose to carburetter hose	1	1964-71; Hydrolastic suspension.
35	37H7148M	FUEL PIPE, 1/4" dia., steel, per metre	A/R
	HCP014	FUEL PIPE, 1/4" dia., copper, per foot	A/R
	CNF014	FUEL PIPE, 1/4" dia., cunifer, per foot	A/R
36	BRT2413	HOSE, Petroflex, fuel pipe to carburetters	1	1963-64; rubber cone suspension.
	BRT2416	HOSE, Petroflex, fuel pipe to carburetters	1	1964-71; Hydrolastic suspension.
37	12A284	PIPE, supply to carburetters	1	Twin HS carburetters only.
38	BRT2406	HOSE, Petroflex, pipe to carburetters	2	Twin HS carburetters only.
39	PCR409	CLIP, pipe to inlet manifold	1	Twin HS carburetters only.
40	SH604051	SCREW, clip to manifold	1	Twin HS carburetters only.
41	LWZ304	WASHER, locking	1	Twin HS carburetters only.
42	ACH8977	HOSE, fuel pipe to carburetter	1	Twin H4 carburetters (Special Tuning) only.
43	AHB9059	HOSE, carburetter to carburetter, RHD	1	Twin H4 carburetters (Special Tuning) only.
	AHB6715	HOSE, carburetter to carburetter, LHD	1	Twin H4 carburetters (Special Tuning) only.
44	12H889	T PIECE, fuel supply	1	Twin HS4 and Twin HS6 carburetters (Special Tuning) only.
45	BRT2404	HOSE, Petroflex, T piece to left hand carburetter	1	Twin HS4 and Twin HS6 carburetters (Special Tuning) only.
46	12H722	HOSE, Petroflex, T piece to right hand carburetter	1	Twin HS4 and Twin HS6 carburetters (Special Tuning) only.
47	ACH5855	CLIP, Petroflex hose	A/R
48	WZV10002	SLEEVE, fuel pipe protection	6

If desired, you can make up your own Petroflex hoses to the lengths you need; it is of course also possible to replace the braided Petroflex hoses with standard 1/4" int. dia. rubber fuel hose:
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
49	SSFH001	HOSE, Petroflex, stainless braided, per metre	A/R	1/4" int. dia.
50	PFC001	END CAP, Petroflex hose	A/R	Two required per hose.
51	FH006	HOSE, rubber, fuel, per metre	A/R	1/4" int. dia.

Traveller and Countryman 1960-69
Van and Pick Up 1960-70
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
52	21A418	PIPE ASS'Y, tank to pump hose	1	Traveller and Countryman with left hand tank, 1960.
53	21A554	PIPE ASS'Y, tank to pump hose	1	Traveller and Countryman with underfloor tank, Van with wooden load floor; 1961-69.
54	21A307	PIPE ASS'Y, tank to pump hose	1	Van with metal load floor and Pick Up, 1960-69.
55	21A36712	PIPE ASS'Y, tank end, 6" repair section	1	All models; form pipe to contours required.
The copper repair pipe assembly 21A36712 comes complete with tank union nut and olive, as the genuine full length pipes do. It is intended primarily for those who, in the process of replacing their fuel tank, have twisted off the end of the pipe with the (seized) tank union nut! It can be connected to the remaining fuel pipe on the car with a short length of 1/4" int. dia. rubber fuel hose (part no. FH006, sold per metre).

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
56	21A2770	NUT, tube, pipe to tank union	1	Included in pipe assembly.
57	21A2771	OLIVE, pipe to tank union	1	Included in pipe assembly.
58	BRT2409	HOSE, Petroflex, tank pipe to pump	1	Traveller, Countryman and Van with wooden load floor.
	BRT2415	HOSE, Petroflex, tank pipe to pump	1	Van with metal load floor and Pick Up.
59	21A208	HOSE, Petroflex, pump to fuel pipe	1
60	21A919	PIPE, pump hose to carburetter hose	1
61	37H7148M	FUEL PIPE, 1/4" dia., steel, per metre	A/R
	HCP014	FUEL PIPE, 1/4" dia., copper, per foot	A/R
	CNF014	FUEL PIPE, 1/4" dia., cunifer, per foot	A/R
62	BRT2413	HOSE, Petroflex, fuel pipe to carburetter	1	Manual gearbox.
	13H3448	HOSE, Petroflex, fuel pipe to carburetter	1	Automatic gearbox.
63	ACH5855	CLIP, Petroflex hose	6
64	11K9181	CLIP, pipe to floor	1
65	WZV10002	SLEEVE, fuel pipe protection	10

If desired, you can make up your own Petroflex hoses to the lengths you need; it is of course also possible to replace the braided Petroflex hoses with standard 1/4" int. dia. rubber fuel hose:
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
66	SSFH001	HOSE, Petroflex, stainless braided, per metre	A/R	1/4" int. dia.
67	PFC001	END CAP, Petroflex hose	A/R	Two required per hose.
68	FH006	HOSE, rubber, fuel, per metre	A/R	1/4" int. dia.
