Fresh Air Heater Units
On older models, new complete heater assemblies and heater casings are generally not available, so restoring your old unit is usually the only choice (unless, as happens from time to time, someone unearths a 'new old stock' one). The radiator or 'matrix' can be replaced as can the fan motor; we also offer a reconditioning service for your matrix should you prefer it.

Care must be taken to positively identify your type of heater before ordering parts; many parts are shared between heater designs that look outwardly similar, but others are unique to each design. As a matter of fact, each of the pre-1969 heaters was produced in right hand drive and left hand drive variants (just to increase further the permutations and combinations!).

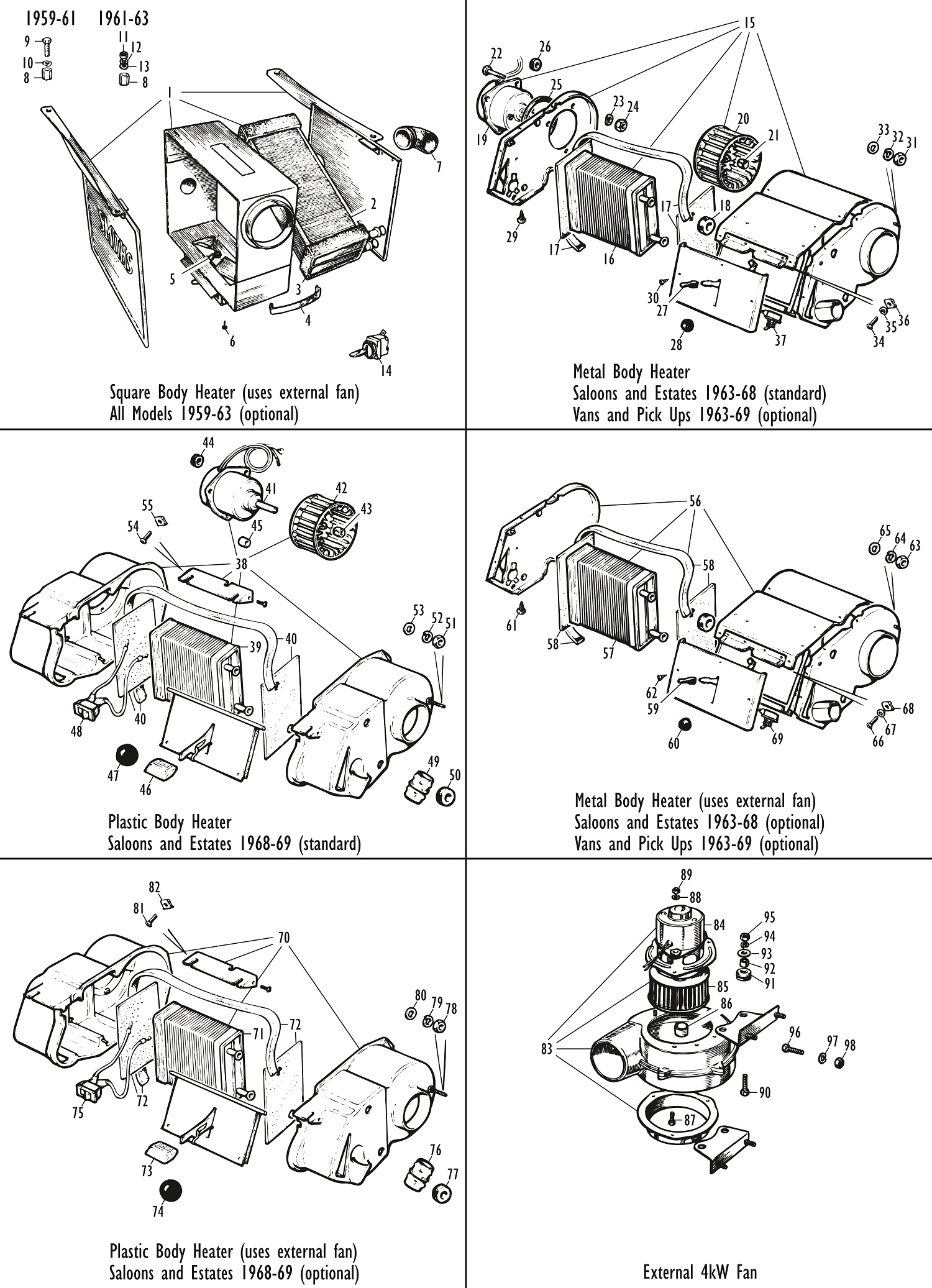

Square Fresh Air Heater (Uses External 4kW Fan)
All Models 1959-63 Optional Equipment
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	-	HEATER ASSEMBLY, fresh air	1
2	17H2019	MATRIX, heater, new	1	Reconditioned also available - please enquire.
3	17H1797	SEAL, around matrix	1
4	17H1605	CLIP, heater casing	4
5	17H2018	SPRING, outlet door	1
6	PJZ602	SCREW, self tapping, outlet assembly to heater	4
7	27H1579	ELBOW, RH demister outlet	1
8	14A9968	SPACER, heater to body	4
9	SH604081	SCREW, heater to body	4	1959-61.
10	LWZ204	WASHER, locking	4	1959-61.
11	FNZ104	NUT, heater to body	4	1961-63.
12	LWZ204	WASHER, locking	4	1961-63.
13	PWZ204	WASHER, plain	4	1961-63.
14	BCA4331	SWITCH, fan control	1	1959-61.
	5L193	SWITCH, fan control	1	1961-63.

Metal Fresh Air Heater with 2.8kW Internal Fan
Saloons and Estates 1963-68 Standard Equipment
Van and Pick Up 1963-69 Optional Equipment
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
15	-	HEATER ASSEMBLY, fresh air	1
16	17H8608	MATRIX, heater, new, 115mm between pipe centres	1	Reconditioned also available - please enquire.
	37H3930	MATRIX, heater, new, 125mm between pipe centres	1	Reconditioned also available - please enquire.
Important Note: There were, believe it or not, five matrices used in 1963-69 heaters, each with their own unique features. The major difference - the one might stop you from fitting your new matrix into the heater casing - is the dimension between the centres of the inlet and outlet pipes, which could be 115mm (matrix 17H8608) or 125mm (matrix 37H3930). You must measure this dimension on your old matrix before deciding which new one to order.

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
17	37H3924	SEAL SET, matrix, three pieces	1
18	27H1253	SEAL, matrix pipes	2
19	27H2189	MOTOR ASSEMBLY, fan	1
20	17H8108	FAN	1
21	17H6836	CLIP, fan to motor	1
	27H602	COLLET, fan to motor	1	Alternative to clip.
22	27H646	SCREW, motor to casing	3
23	WL700101	WASHER, locking	3
24	AJD8012Z	NUT	3
25	17H8612	SEAL, motor to casing	1
26	7H6924	GROMMET, motor wiring	1
27	24A151	KNOB, lever	1	Except Germany.
28	37H3335	KNOB, lever	1	Germany.
29	PJZ602	SCREW, self tapping, casing assembly	18
30	17H8617	SCREW, self tapping, lever plate to casing	3
31	FNZ104	NUT, unit to body	1
32	LWZ204	WASHER, locking	1
33	PWZ104	WASHER, plain	1
34	PJZ1004	SCREW, self tapping, unit to body	2
35	PWZ203	WASHER, plain	2
36	PFS310	NUT, Spire	2
37	27H8235	SWITCH, fan control	1

Plastic Fresh Air Heater with 2.8kW Internal Fan
Saloons and Estates 1968-69 Standard Equipment
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
38	-	HEATER ASSEMBLY, fresh air	1
39	17H8608	MATRIX, heater, new, 115mm between pipe centres	1	Reconditioned also available - please enquire.
	37H3930	MATRIX, heater, new, 125mm between pipe centres	1	Reconditioned also available - please enquire.
Please see the notes in 'Metal Fresh Air Heater with 2.8kW Internal Fan' above before ordering a matrix from Somerford Mini.

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
40	37H3924	SEAL SET, matrix, three pieces	1
41	37H3925	MOTOR ASSEMBLY, fan	1
42	17H8108	FAN	1
43	17H6836	CLIP, fan to motor	1
	27H602	COLLET, fan to motor	1	Alternative to clip.
44	24K2085	GROMMET, fan motor mounting	3
45	17H1289	DISTANCE PIECE, fan motor mounting	3
46	37H3923	KNOB, lever	1	Except Germany.
47	37H3335	KNOB, lever	1	Germany.
48	YUF101090	SWITCH, fan control	1
49	24A2753	ADAPTOR, demister hose	2
50	24A2752	SEAL, demister hose	2
51	FNZ104	NUT, unit to body	1
52	LWZ204	WASHER, locking	1
53	PWZ104	WASHER, plain	1
54	PJZ808	SCREW, self tapping, unit to body	2
55	13H5146	NUT, Spire	2

Metal Fresh Air Heater (Uses External 4kW Fan)
Saloons and Estates 1963-68 Optional Equipment
Van and Pick Up 1963-69 Optional Equipment
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
56	-	HEATER ASSEMBLY, fresh air	1
57	17H8608	MATRIX, heater, new, 115mm between pipe centres	1	Reconditioned also available - please enquire.
	37H3930	MATRIX, heater, new, 125mm between pipe centres	1	Reconditioned also available - please enquire.
Please see the notes in 'Metal Fresh Air Heater with 2.8kW Internal Fan' above before ordering a matrix from Somerford Mini.

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
58	37H3924	SEAL SET, matrix, three pieces	1
59	24A151	KNOB, lever	1	Except Germany.
60	37H3335	KNOB, lever	1	Germany.
61	PJZ602	SCREW, self tapping, casing assembly	18
62	17H8617	SCREW, self tapping, lever plate to casing	3
63	FNZ104	NUT, unit to body	1
64	LWZ204	WASHER, locking	1
65	PWZ104	WASHER, plain	1
66	PJZ1004	SCREW, self tapping, unit to body	2
67	PWZ203	WASHER, plain	2
68	PFS310	NUT, Spire	2
69	27H8235	SWITCH, fan control	1

Plastic Fresh Air Heater (Uses External 4kW Fan)
Saloons and Estates 1968-69 Optional Equipment
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
70	-	HEATER ASSEMBLY, fresh air	1
71	17H8608	MATRIX, heater, new, 115mm between pipe centres	1	Reconditioned also available - please enquire.
	37H3930	MATRIX, heater, new, 125mm between pipe centres	1	Reconditioned also available - please enquire.
Please see the notes in 'Metal Fresh Air Heater with 2.8kW Internal Fan' above before ordering a matrix from Somerford Mini.

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
72	37H3924	SEAL SET, matrix, three pieces	1
73	37H3923	KNOB, lever	1	Except Germany.
74	37H3335	KNOB, lever	1	Germany.
75	YUF101090	SWITCH, fan control	1
76	24A2753	ADAPTOR, demister hose	2
77	24A2752	SEAL, demister hose	2
78	FNZ104	NUT, unit to body	1
79	LWZ204	WASHER, locking	1
80	PWZ104	WASHER, plain	1
81	PJZ808	SCREW, self tapping, unit to body	2
82	13H5146	NUT, Spire	2

External 4kW Fan
All Models 1959-69 Optional Equipment
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
83	-	BLOWER ASSEMBLY	1
84	7H8387	MOTOR, fan	1
85	17H8108	FAN	1
86	17H6836	CLIP, fan to motor	1
	27H602	COLLET, fan to motor	1	Alternative to clip.
87	53K126	SCREW, motor to blower assembly	3
88	LWZ403	WASHER, shakeproof	3
89	FNZ103	NUT	3
90	BH604081	BOLT, blower assembly to mounting brackets	4
91	27H1232	GROMMET, mounting	4
92	27H1258	SPACER, grommet	4
93	27H1259	SPACER, flat	4
94	LWZ204	WASHER, locking	4
95	FNZ104	NUT	4
96	SH604031	SCREW, bracket to inner wing	4	1959-63 models.
97	LWZ204	WASHER, locking	4
98	FNZ104	NUT	4
