External Hinge Doors

Externally Hinged Doors
Mini Saloon and Traveller MkI and MkII 1959-69, Riley and Wolseley MkI and MkII 1961-67, All Van and Pick Up
Exterior Door Lock Components
Exterior door handles for these doors are simple; from 1966 onwards a safety boss (to stop people catching themselves on the handle) was
fitted to the door skin, under the end of the handle. This necessitated a shortening of the handle to accomodate the boss. Therefore, there
are only two styles of exterior handle: 1959-65, and 1966 on. Originally only one lock was fitted, to the handle on the driver's side (from inside the car,
the reverse was the case, with the passenger's lock assembly incorporating a safety catch and the driver's side lock assembly not). All door
handles now supplied are of the locking type.

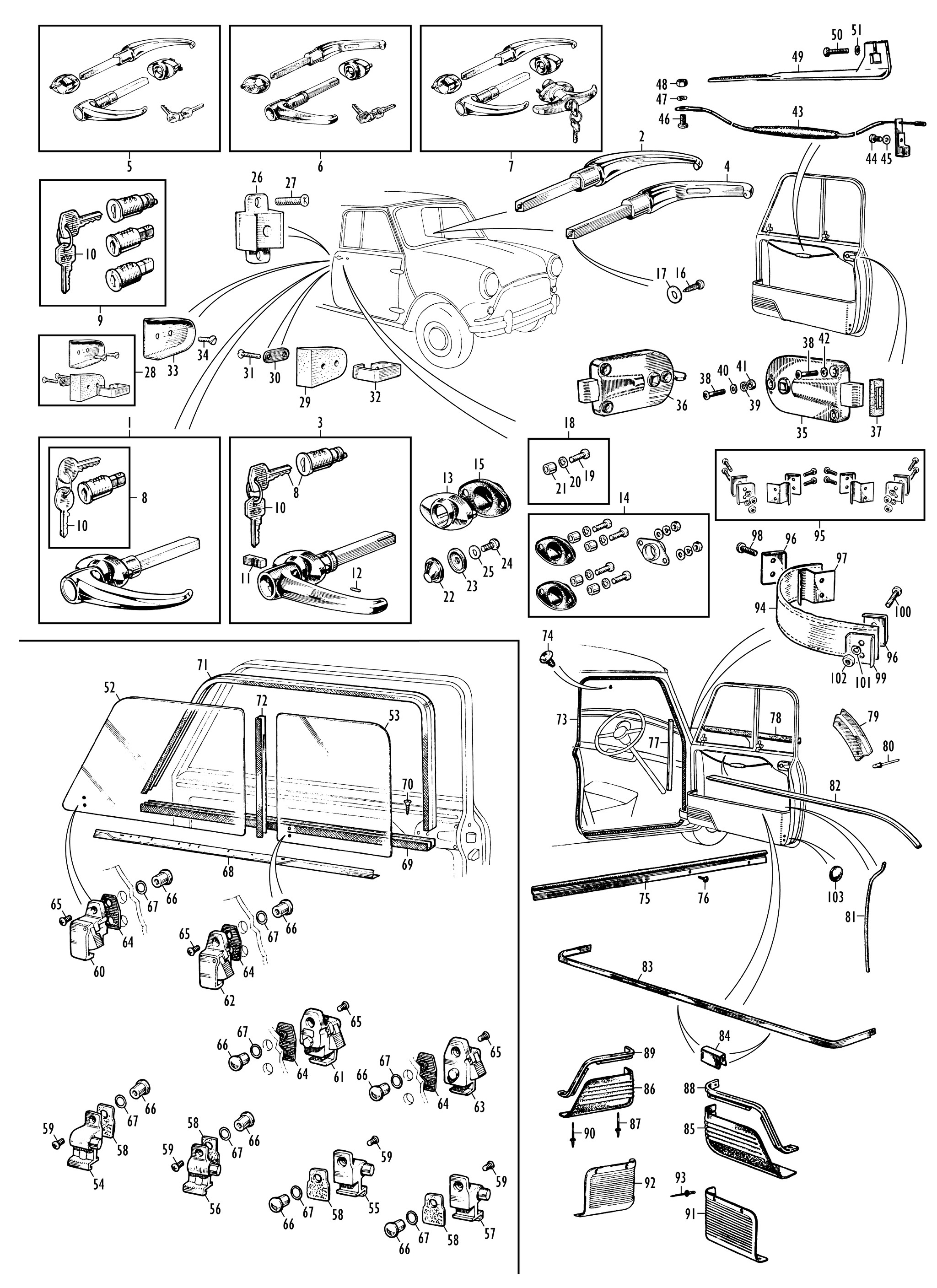

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	24A1140	DOOR HANDLE, locking, RH	1	1959-65; with two keys.
2	14A6829	DOOR HANDLE, locking, LH	1	1959-65; with two keys.
3	24A2083	DOOR HANDLE, locking, RH	1	1966 on, with two keys.
4	24A1833	DOOR HANDLE, locking, LH	1	1966 on, with two keys.
5	24A1140MP	DOOR HANDLE SET, matched pair	1	1959-65; includes two locking handles, two escutcheons and two keys.
6	24A2083MP	DOOR HANDLE SET, matched pair	1	1966 on; includes two locking handles, two escutcheons and two keys.
7	CHS003	HANDLE SET, doors and boot lid	1	1959-65; 3 piece set, with two keys.
	CHS002	HANDLE SET, doors and boot lid	1	1966-69; 3 piece set, with two keys.
8	37H9651	LOCK BARREL, handle	1	With two keys.
9	BARR002	LOCK BARREL SET, ignition switch, door and boot lid	1	3 piece set, with two keys.
10		KEY, replacement, see note below	A/R
Pre-cut 'FS' type keys (the most commonly used key type on Minis) are available. To order, simply quote the FS number from your existing keys (or alternatively from the lock barrel, if it has the number stamped on it); the number will be in the range from FS876 - FS955.

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
11	17H6596	BOLT, locking	2
12	27H8618	PIN, retaining	2
13	24A2245	ESCUTCHEON, locking handle	1	1966 on; use to replace all previous designs.
	24A2246	ESCUTCHEON, non-locking handle	1	1966 on; use to replace all previous designs.
14	CHS002FK	FITTING KIT, exterior handle set	1
Includes door handle escutcheon seals, escutcheon fitting kits (for 1966 on escutcheons and all replacements), saloon boot handle seal and fitting hardware.

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
15	ADA3817	SEAL, escutcheon and handle to door	2
16	6K9833	SCREW, machine, handle shaft end	2	For original pre-1966 handles.
	PTZ604	SCREW, self tapping, handle shaft end	2	For original 1966 on handles.
	GFK2258	SCREW, self tapping, handle shaft end	2	For new replacement handles.
17	PWZ203	WASHER, plain	2	For original handles.
	GFK1113	WASHER, plain	2	For new replacement handles.
18	KMN319	FITTING KIT, escutcheon	2	Kit includes 2 screws, 2 washers, 2 distance pieces.
19	PMZ305	SCREW, escutcheon to door	4
20	LWZ603	WASHER, shakeproof	4
21	24A2086	DISTANCE PIECE	4
22	24A1834	BOSS, safety	2	1966 on.
23	24A1835	SEAL, button to door	2	1966 on.
24	PMZ306	SCREW, button to door	2	1966 on.
25	LWZ603	WASHER, shakeproof	2	1966 on.
26	14A6832	STRIKER, door lock	2
27	RMZ310	SCREW, striker to body	6
28	14A6833K	DOOR DOVETAIL KIT	2
Includes male and female dovetails plus fixings for one door.

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
29	14A6833	BUFFER, male dovetail, nylon	2
30	14A6834	FIXING PLATE, buffer	2
31	CMZ210	SCREW, buffer to door	4
32	14A7680	TAPPED PLATE, buffer, inside door	2
33	14A6835	PLATE, female dovetail	2
34	CMZ204	SCREW, plate to body	4

Interior Door Lock Components
Interior door handles for the models fitted with these doors are frankly a bit of a muddle. Originally, the more basic models (Standard, Deluxe,
some Super Deluxe, Van and Pick Up) employed a door pull cable, whereas the more upmarket (other Super Deluxe, all Cooper, Riley and
Wolseley) models used a more durable but harder to reach chromed metal handle. As time progressed, owners replaced the failure-prone cables
with either their own contraptions (which varied from bits of string to some which looked convincingly factory-designed, it has to be said) or the
metal handles. Eventually in 1968 the factory admitted defeat with the cables and fitted all models with interior door handles. Nowadays, it's a
matter of practicality versus originality: 'You pays your money, you takes your choice'.

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
35	24A2145	LOCK ASSEMBLY, without safety catch, RH	1	Driver's side, RHD models.
	24A2146	LOCK ASSEMBLY, without safety catch, LH	1	Driver's side, LHD models.
36	24A2144	LOCK ASSEMBLY, with safety catch, LH	1	Passenger's side, RHD models.
	24A2143	LOCK ASSEMBLY, with safety catch, RH	1	Passenger's side, LHD models.
37	14A8568	SEAL, felt, lock to door	2
38	RMZ316	SCREW, lock to door	6
39	WL700101	WASHER, locking	2
40	53K3452	WASHER, shakeproof	2
41	FNZ103	NUT	2
42	53K3452	WASHER, shakeproof	4
43	24A664	CABLE, door pull	2	1959-68, Standard, Deluxe, Van and Pick Up.
44	PMZ308	SCREW, clamping cable to lock	2	1959-68, Standard, Deluxe, Van and Pick Up.
45	PWZ103	WASHER, plain	2	1959-68, Standard, Deluxe, Van and Pick Up.
46	PMZ308	SCREW, cable to door	2	1959-68, Standard, Deluxe, Van and Pick Up.
47	WL700101	WASHER, locking	2	1959-68, Standard, Deluxe, Van and Pick Up.
48	FNZ103	NUT	2	1959-68, Standard, Deluxe, Van and Pick Up.
49	GLZ119A	HANDLE, interior, original chromed finish	2	All models except pre-1968 Standard, Deluxe, Van and Pick Up.
	GLZ119	HANDLE, interior, non-original black finish	2	Alternative.
50	PMZ314	SCREW, clamping handle to lock	2	All models except pre-1968 Standard, Deluxe, Van and Pick Up.
51	LWZ503	WASHER, shakeproof	2	All models except pre-1968 Standard, Deluxe, Van and Pick Up.

Door Glazing
The very earliest models (1959-60) used unique door glasses and catches. These glasses and catches are not available;
to replace either, later matching glasses and catches can be used.
Later catches are divided into two types. Before 1963, rather tactile chromed metal catches similar in style to the 1959-60 originals were fitted;
subsequently, less durable black and white plastic ones were used.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
52	14A7811	DOOR GLASS, front, clear	2	1960 on.
53	14A7810	DOOR GLASS, rear, clear	2	1960 on.
54	14A7812	CATCH, chromed, front glass, RH	1	1960-63.
55	14A7813	CATCH, chromed, front glass, LH	1	1960-63.
56	14A7814	CATCH, chromed, rear glass, RH	1	1960-63.
57	14A7815	CATCH, chromed, rear glass, LH	1	1960-63.
58	14A7816	SEAL, chromed catch to glass	4	1960-63.
59	RMP306	SCREW, catch to glass	4	1960-63.
60	24A1194	CATCH, plastic, front glass, RH	1	1963 on.
61	24A1195	CATCH, plastic, front glass, LH	1	1963 on.
62	24A1196	CATCH, plastic, rear glass, RH	1	1963 on.
63	24A1197	CATCH, plastic, rear glass, LH	1	1963 on.
64	24A1198	SEAL, plastic catch to glass	4	1963 on.
65	RMP307	SCREW, catch to glass	4	1963 on.
66	14A8151	BOSS, catch securing	4
67	14A7065	WASHER, fibre, boss to glass	4
68	14A6769	STRIP, window catch, chromed, RH	1	1959-61.
	24A1303	STRIP, window catch, chromed, RH	1	1961 on.
	14A6770	STRIP, window catch, chromed, LH	1	1959-61.
	24A1304	STRIP, window catch, chromed, LH	1	1961 on.
69	24A88	CHANNEL, door glass, lower	2
70	CTP604	SCREW, lower channel and catch strip to door	6
71	14A7167	CHANNEL, door glass, upper	2	Sold per 2 metre length; 134cm required per door. Original rigid type.
	14A7167S	CHANNEL, door glass, upper	2	Sold pre-cut; later felt type.
72	EAM8530/1	DRAUGHT EXCLUDER, door glass	2

Door Seals
The type of door seals used on Saloons and Travellers depended on the year, interior trim colour and type - black rubber was the norm, but
coloured fleck was fitted in some instances. True to their utilitarian roots, Vans and Pick Ups always used tan (very early) or black rubber.
Coloured (i.e. not black) seals are sometimes available; please contact us for details.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
73	24A1351	DOOR SEAL, black rubber	2	1959-69, Saloon and Traveller; 1961-76 Van and Pick Up.
	XGA9934	DOOR SEAL, black rubber and nylon	2	1977 on, Van and Pick Up.
74	24G4245	SCREW, door seal attaching	4
75	14A7270	KICK STRIP, door seal covering, bright alloy, pair	1	1959-68.
	ALA7613	KICK STRIP, door seal covering, black plastic	2	1968 on.
76	36036K	SCREW, kick strip attaching	8
77	ADC1731	WEATHERSTRIP, front door A post	2	1959-60.
78	ADA3869	WAIST SEAL, rubber	2	1959-60.
79	14A9513	PLATE, deflector	2	1960-61.
80	2K2610	RIVET, plate to door	4	1960-61.
81	14A7930	DRAIN TUBE, rubber	4	1960 on.

Interior Door Fittings and Finishers
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
82	24A1517	STRIP, safety, top of door flange covering	2
83	24A1169	MOULDING, door pocket	2
84	EYC10048	CLIP, moulding to door pocket	8
85	ADA3733	PROTECTOR, door pocket, RH	1	Morris Saloons and Travellers 1959-62.
86	ADA3734	PROTECTOR, door pocket, LH	1	Morris Saloons and Travellers 1959-62.
87	DAP1023	RIVET, protector to door pocket	4	Morris Saloons and Travellers 1959-62.
88	ADA3735	MOULDING, protector, RH	1	Morris Saloons and Travellers 1959-62.
89	ADA3736	MOULDING, protector, LH	1	Morris Saloons and Travellers 1959-62.
90	BDA499	RIVET, moulding and protector to door pocket	14	Morris Saloons and Travellers 1959-62.
91	14A7176	PROTECTOR, door pocket, RH	1	All models except Morris 1959-62, Van and Pick Up.
92	14A7177	PROTECTOR, door pocket, LH	1	All models except Morris 1959-62, Van and Pick Up.
93	DAP1023	RIVET, protector to door pocket	8	All models except Morris 1959-62, Van and Pick Up.
94	ALE1221	CHECK STRAP, door, Black	2
	14E4289	CHECK STRAP, door, Red	2
	14E4291	CHECK STRAP, door, Green	2
	14E4290	CHECK STRAP, door, Grey	2
95	DCSK001	FITTING KIT, for two check straps	1	Includes retainers, brackets, stiffeners, screws, washers and nuts.
96	14A764	RETAINER, check strap	4
97	14A6745	BRACKET, check strap	2
98	RMP414	SCREW, check strap to A post	4
99	14A6744	STIFFENER, check strap	2
100	RMP414	SCREW, check strap to door	4
101	LWZ204	WASHER, locking	4
102	FNZ104	NUT	4
103	2H7274	PLUG, check strap screw hole in door pocket	4	Use in redundant holes at other end of pocket.
