Estates, Van and Pick Up; Exterior Mirrors

Windscreens and Backlights
Important: Please note that the preferred method of supplying windscreens and window glass is for the customer to pre-arrange to pick it up, either directly from our premises or from our stand at one of the many shows we attend. Except in special circumstances we do not supply these items by mail order.

For door and rear door glass, please see the Door Locks, Glazing and Fittings sections.

Windscreen
Back in the 60s and 70s Minis came out of the factory with windscreens made from toughened glass (the type that shatters into thousands of granules that get into every nook and cranny in the car...), switching over a period of time to the eminently more practical laminated type as market forces (and local regulations) dictated.

Today, we offer a range of laminated windscreens allowing the customer the choice of clear, tinted or top tinted glass. We can even supply a thoroughly up-to-date heated windscreen for those exasperated by the well-known inefficiencies of the Mini's demister system – highly recommended particularly for pick ups, which have the worst cabin ventilation of all. If you are converting your car to a heated windscreen, you really should consider purchasing our harness and relay kit (part no. HWWK01) to take the guesswork out of wiring it up.

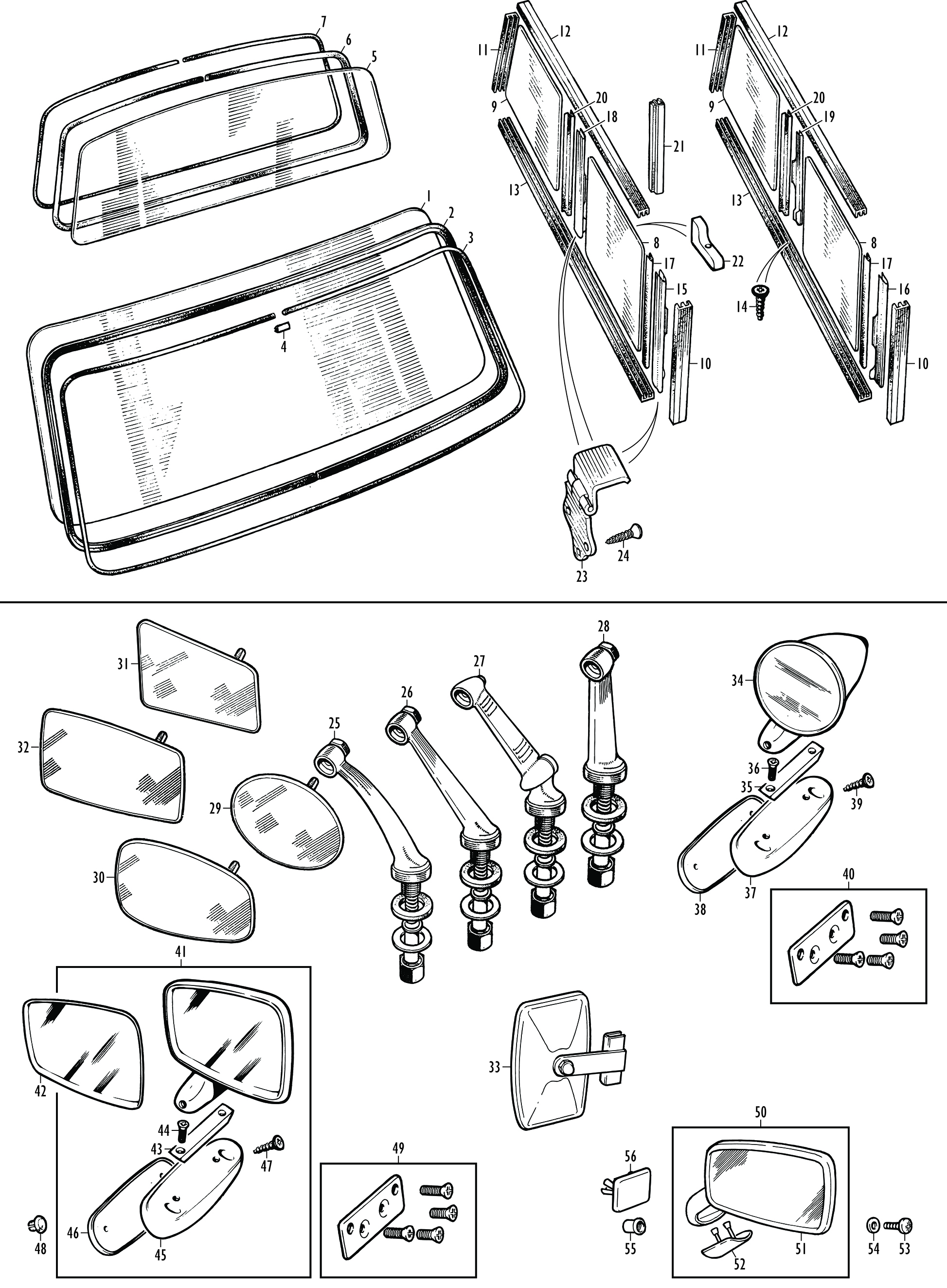

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	24A2236	GLASS, windscreen, laminated, clear	1	All models with clear glazing.
	CZH4048	GLASS, windscreen, laminated, green tinted	1	All models with green tinted glazing.
	CZH4048TT	GLASS, windscreen, laminated, green tinted, with top tint (sun strip)	1	Alternative to CZH4048.
	24A2236H	GLASS, windscreen, laminated, clear, heated	1	Alternative to 24A2236.
	24A2236MC	GLASS, windscreen, laminated, clear, heated	1	Period 'Monte Carlo' type alternative to 24A2236H.
	CZH4048H	GLASS, windscreen, laminated, green tinted, heated	1	Alternative to CZH4048.
2	14A8743	SEAL, rubber, windscreen glass	1	For original toughened glass windscreens.
	CCB100130	SEAL, rubber, windscreen glass, wide	1	For laminated glass windscreens.
To be honest, while these two screen seals look and are different, in reality both can be used with laminated glass. However, if you intend to refit an original toughened windscreen, good luck - and by the way, the early seal 14A8743 should be used.

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
3	24A734	STRIP, filler, windscreen seal, black	1	1961-79, Van and Pick Up.
	37H8052F	STRIP, filler, windscreen seal, plastichrome	1	All models except pre-1980 Van and Pick Up.
4	JPC2017	CLIP, joint finisher, filler strip	1	Later saloon part; can be used to tidy up the filler strip joint.

Backlight - Pick Up
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
5	14A7768	GLASS, backlight, clear	1
6	14A9362	SEAL, rubber, backlight glass	1
7	14A9363	STRIP, filler, backlight seal, black	1

Sliding Rear Quarter Lights
Traveller, Countryman and Clubman Estate
The only significant change in the history of the sliding quarter light occurred in 1973, when the rear glass was rendered unslideable by means of a stop block and the replacement of the finger pull and seal by a simple draught excluder.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
8	14A7627	GLASS, sliding quarter light, front, clear	2
	CZH4086	GLASS, sliding quarter light, front, green tinted	2
9	14A7628	GLASS, sliding quarter light, rear, clear	2
	CZH4085	GLASS, sliding quarter light, rear, green tinted	2
	CECK001	CHANNEL KIT, glazing, car set of 8 channels	1
10	14A7631	CHANNEL, glazing, front	2
11	14A7630	CHANNEL, glazing, rear	2
12	14A7632	CHANNEL, glazing, upper	2
13	14A7633	CHANNEL, glazing, lower	2
14	CTZ404	SCREW, channel to body	24
15	14A7639	FINGER PULL, sliding glass, front, RH	1
16	14A7640	FINGER PULL, sliding glass, front, LH	1
17	24A948	SEAL, front finger pull	2
18	14A7635	FINGER PULL, sliding glass, rear, RH	1	1960-73.
19	14A7636	FINGER PULL, sliding glass, rear, LH	1	1960-73.
20	14A7637	SEAL, rear finger pull	2	1960-73.
21	EAM8530/1	DRAUGHT EXCLUDER, fixed glass, rear	2	1973 on.
22	CZH940	STOP, fixed glass	2	1973 on.
23	14A7638	CATCH, sliding quarter light	4	1960-68.
	24A2391	CATCH, sliding quarter light	4	1968 on.
24	36036K	SCREW, catch to body	12

Exterior Mirrors
'Tex' Style Wing Mirrors, 1959-69 Period
Saloon, Traveller, Countryman, Van and Pick Up
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
25	M16008	STEM ASSEMBLY, wing mirror, curved	2
26	M16009	STEM ASSEMBLY, wing mirror, offset	2
27	M16006	STEM ASSEMBLY, wing mirror, adjustable	2
28	M16007	STEM ASSEMBLY, wing mirror, straight	2
29	M50101	MIRROR HEAD, round	2
30	M50211	MIRROR HEAD, oval	2
31	M50311	MIRROR HEAD, tapered	2
32	M40711	MIRROR HEAD, rectangular	2

Overtaking Mirror, 1959-69 Period
A very popular period accessory, mounting to the body seam finisher on the windscreen pillar.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
33	OTM001	OVERTAKING MIRROR ASSEMBLY	1

'Bullet' Style Racing Mirrors, 1965 Onwards
Superior quality adjustable 'Bullet' style mirrors, designed for door fitment. Each includes mounting plinth and fixings.
Frequently used as a retro-fit to late model Minis.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
34	GAM105R	BULLET MIRROR ASSEMBLY, plinth mounted, RH	1
	GAM105L	BULLET MIRROR ASSEMBLY, plinth mounted, LH	1
35	DZB5208A	PLATE, wedge, mirror mounting	2
36	SM105161	SCREW, wedge plate to plinth	4
37	CZH3521	PLINTH, mirror, bright finish	2
38	CZH3525	GASKET, plinth to door, plastic	2
39	CMZ312	SCREW, plinth to door	4
40	GAM215KIT	ADAPTOR KIT, 'Bullet' mirror, RH	1
	GAM216KIT	ADAPTOR KIT, 'Bullet' mirror, LH	1
These adaptor kits allow fitment of the 'Bullet' mirrors to the nutserts included in the doors on post-1980 cars.

'Tex' Door Mirrors, 1969-84 Period
Saloon, Clubman Estate, Van and Pick Up
A very popular style of mirror, often retro-fitted to later 1980s and 1990s models (see adaptor kits below for this application).
41	GAM215A	DOOR MIRROR ASSEMBLY, RH, bright finish	1	Saloon and Clubman Estate, 1969-79.
	GAM216A	DOOR MIRROR ASSEMBLY, LH, bright finish	1	Saloon and Clubman Estate, 1969-79.
	GAM250	DOOR MIRROR ASSEMBLY, RH, black finish	1	Van and Pick Up, 1976 on.
	GAM251	DOOR MIRROR ASSEMBLY, LH, black finish	1	Van and Pick Up, 1976 on.
42	M97712Q	MIRROR GLASS, replacement	2
43	DZB5208A	PLATE, wedge, mirror mounting	2
44	SM105161	SCREW, wedge plate to plinth	4
45	CZH3521	PLINTH, mirror, bright finish	2	Saloon and Clubman Estate, 1969-79.
	CZH4174	PLINTH, mirror, black finish	2	Van and Pick Up, 1976 on.
46	CZH3525	GASKET, plinth to door, plastic	2
47	CMZ312	SCREW, plinth to door	4
48	13H8998	PLUG, blanking mirror mounting hole	4	Use to plug holes in doors when mirrors are not fitted.
49	GAM215KIT	ADAPTOR KIT, 'Tex' mirror, RH	1
	GAM216KIT	ADAPTOR KIT, 'Tex' mirror, RH	1
These adaptor kits allow fitment of the 'Tex' mirrors to the nutserts included in the doors on post-1980 cars.

'Magna' Door Mirrors, 1980 On
Saloon, Cabriolet and Clubman Estate
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
50	JPC9848	DOOR MIRROR ASSEMBLY, RH, Black	1	Standard models up to 1988.
	JPC9849	DOOR MIRROR ASSEMBLY, LH, Black	1	Standard models up to 1988.
	JPC9836	DOOR MIRROR ASSEMBLY, RH, Nimbus Grey	1	Some limited editions 1980-88, plus standard models 1988-96.
	JPC9837	DOOR MIRROR ASSEMBLY, LH, Nimbus Grey	1	Some limited editions 1980-88, plus standard models 1988-96.
	CDM001	DOOR MIRROR ASSEMBLY, RH, chrome finish	1	Aftermarket alternative.
	CDM002	DOOR MIRROR ASSEMBLY, LH, chrome finish	1	Aftermarket alternative.
	CRB10184	DOOR MIRROR ASSEMBLY, RH, colour coded	1	Some limited editions 1989-96, plus all models 1997 on.
	CRB10185	DOOR MIRROR ASSEMBLY, LH, colour coded	1	Some limited editions 1989-96, plus all models 1997 on.
CRB10184 and CRB10185 are mirrors with heads painted the same colour as the car, except for Cooper models which had White Diamond mirrors up to 1999, then a choice of Old English White or Platinum Silver, depending on the roof colour of the car. The mirror stems on coloured mirrors were always black.

Important note: to order CRB10184 or CRB10185 mirrors, the correct three character colour suffix must be applied to the part number. For example, a right hand mirror in Cherry Red would be CRB10184COG, where COG is the colour suffix or code. For confirmation that you have chosen the correct colour, look at the vehicle identification number (VIN) plate under the bonnet - it displays the colour code of your car. Unsurprisingly, we do not hold all of these colours as normal stock items, only the more common colours such as the white Cooper mirrors. Please contact us to be advised on the availability of your mirror colour.

Colours used (with part number suffixes in brackets) are, in approximate order of introduction from 1989 onwards: Cherry Red (COG), Black (PMF), Flame Red (COF), British Racing Green (HNA), Midnight Blue(JQW), Storm Grey (LOZ), White Diamond (NMN), Caribbean Blue (UME), Cranberry Red (COS), Nightfire Red (COQ), Electric Blue (JSA), White Diamond 2 (NAL), Brooklands Green (HYF), Hawaiian Blue (JFK), Anthracite (LQW), Solar Red (CMU), Black 2 (PAK), British Racing Green 2 (HAM), Nightfire Red 2 (CAQ), Platinum Silver (MNX), Tahiti Blue (JRJ), Almond Green (HAK), Volcano (EAC), Whitehall Beige (SAR), Amaranth (KMN), Kingfisher Blue (JAX), Surf Blue (JEN), Yukon Grey (LQS), Paul Smith Blue (JYX), Old English White (NUD), Mulberry Red (CDM), Island Blue (JFU), Old English White (NNX), Sienna Gold (GUF), British Racing Green 3 (HFF).
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
51	JPC8398PA	STEM, mirror, RH, Black	1
	JPC8399PA	STEM, mirror, LH, Black	1
	JPC8410LP	STEM, mirror, RH, Nimbus Grey	1
	JPC8411LP	STEM, mirror, LH, Nimbus Grey	1
52	EAM4158PA	COVER, stem, RH, Black	1
	EAM4159PA	COVER, stem, LH, Black	1
	JPC8414LP	COVER, stem, RH, Nimbus Grey	1
	JPC8415LP	COVER, stem, LH, Nimbus Grey	1
53	PMZ310	SCREW, mirror to door	4
54	PWZ103	WASHER, plain	4
55	ADU2038	NUTSERT, door skin, mirror mounting	4
56	EAM7976	PLUG, blanking mirror mounting holes, RH	1	Use to plug holes in door when mirror is not fitted.
	EAM7977	PLUG, blanking mirror mounting holes, LH	1	Use to plug holes in door when mirror is not fitted.
