Headlamps

Headlamp Assemblies
Rationalising all the different headlamp assemblies used over the 41 years of Mini production is not easy - if we listed them all, it would take a page to do it! What we have tried to do here is to show a reasonable spread of the assemblies fitted to most cars in most countries. However, certain countries at the time required different lenses, bulb colour or headlamp power, and some of these local regulations are still in place today. We can source and supply some of the other variations of headlamp assembly if required, but our general advice for those seeking assemblies not shown here is to purchase the lens, bulb or unit locally in your own country if possible.
Headlamp assemblies without pilot bulbs (i.e. not including side lamps) are for Riley, Wolseley and Clubman models, plus Minis in some countries where regulations required the side lamp to be combined with the indicator rather than the headlamp.

RH Drive

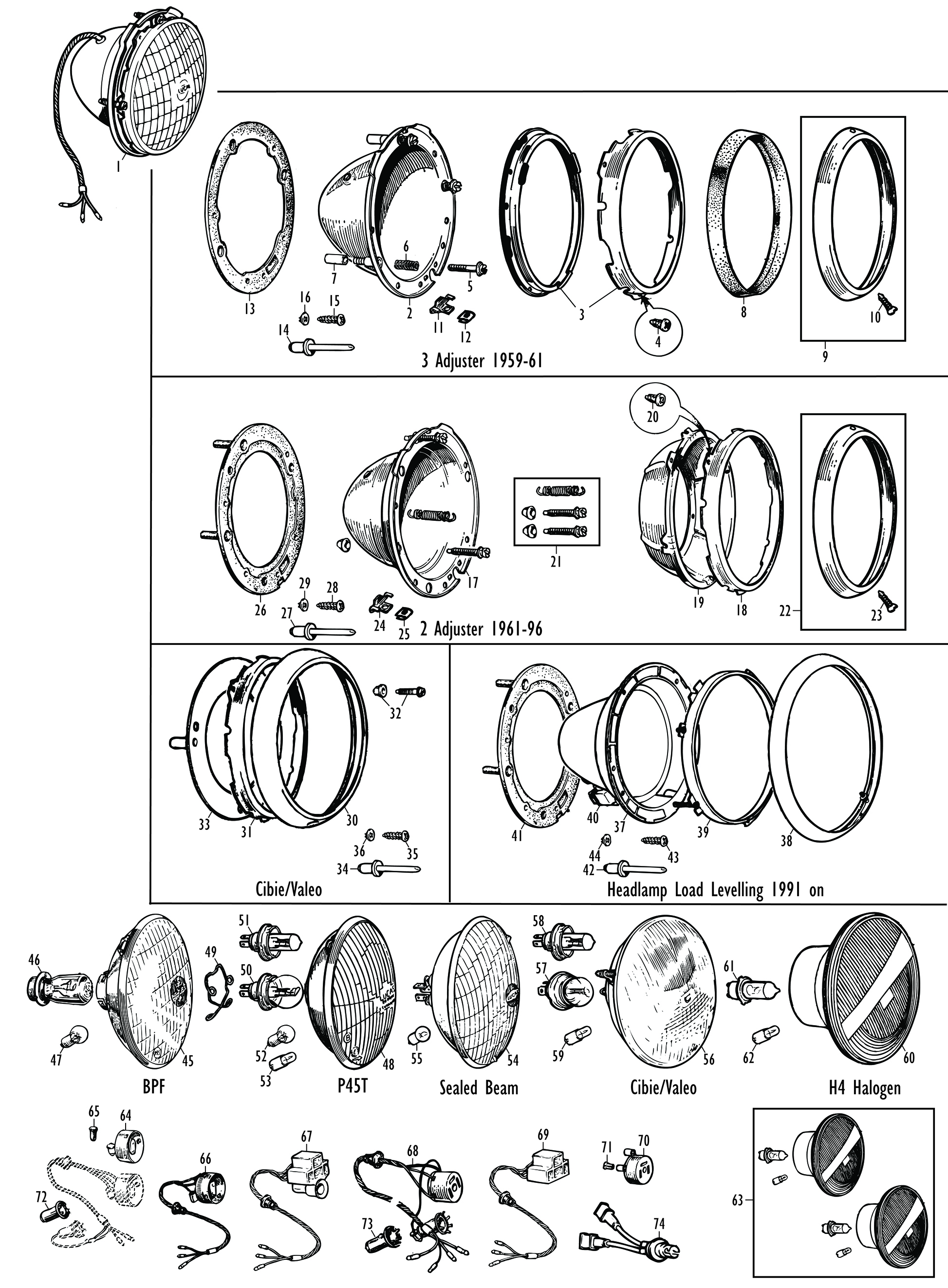

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	13H3201	HEADLAMP ASSY, BPF, 3 adjuster type	2	With pilot bulb.
	37H7924	HEADLAMP ASSY, BPF, 2 adjuster type	2	With pilot bulb.
	13H7922	HEADLAMP ASSY, sealed beam, 2 adjuster type	2	With pilot bulb and metal bowl.
	BHM7198	HEADLAMP ASSY, sealed beam, 2 adjuster type	2	With pilot bulb and plastic bowl.
	27H8499	HEADLAMP ASSY, sealed beam, 2 adjuster type	2	Without pilot bulb; with metal bowl.
	BHM7196	HEADLAMP ASSY, sealed beam, 2 adjuster type	2	Without pilot bulb; with plastic bowl.
	37H7587	HEADLAMP ASSY, Cibie/Valeo	2	With pilot bulb.
	13H8370	HEADLAMP ASSY, Cibie/Valeo	2	Without pilot bulb.
	XBC10197	HEADLAMP ASSY, H4 halogen, without load levelling	2	With pilot bulb.
	XBC103780	HEADLAMP ASSY, H4 halogen, with load levelling	2	With pilot bulb.

LH Drive
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
	3H2515	HEADLAMP ASSY, BPF, 3 adjuster type	2	Without pilot bulb.
	13H182	HEADLAMP ASSY, P45T, 3 adjuster type	2	Without pilot bulb; supplied without headlamp bulb.
	27H8206	HEADLAMP ASSY, BPF, 2 adjuster type	2	Without pilot bulb.
	BAU1177A	HEADLAMP ASSY, P45T, 2 adjuster type	2	With pilot bulb; supplied without headlamp bulb.
	AEU1061A	HEADLAMP ASSY, P45T, 2 adjuster type	2	Without pilot bulb; supplied without headlamp bulb.
	27H8207	HEADLAMP ASSY, sealed beam, 2 adjuster type	2	Without pilot bulb.
	37H7587	HEADLAMP ASSY, Cibie/Valeo	2	With pilot bulb.
	13H8370	HEADLAMP ASSY, Cibie/Valeo	2	Without pilot bulb.
	XBC104060	HEADLAMP ASSY, H4 halogen, with load levelling	2	With pilot bulb.

Headlamp Bowls
Three Adjuster Type (1959-61)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
2	7H6838	BOWL, headlamp	2
3	17H5205	MOUNTING RING AND INNER RIM	2
4	AB606021	SCREW, inner rim retaining	6
5	17H5394	SCREW, adjuster	6
6	17H5231	SPRING, adjuster	6
7	27H5253	SLEEVE, adjuster	6
8	3H2962	DUST EXCLUDER, rubber	2
9	500929	RIM, headlamp	2
10	RTC465	SCREW, rim retaining	2
11	37H7421A	CLIP, retaining rim screw	2
12	CDU4056	NUT, clip	2
13	3H1031	GASKET, bowl to body	2
14	ADU4278	RIVET, bowl to body	8
15	PTZ1006	SCREW, self tapping, bowl to body	8	Alternative to rivet.
16	13H226	NUT, spire	8	Alternative to rivet.

Two Adjuster Type (1961-96; not for Cibie/Valeo lamps)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
17	520080	BOWL, headlamp, metal, bare	2
	S5400	BOWL ASS'Y, headlamp, plastic	2	Includes adjusters, bowl to body gasket and inner rim.
18	515218A	RIM, inner, bright finish	2	Not Designer limited edition.
	CDU4059	RIM, inner, Nimbus Grey finish	2	Designer limited edition.
19	513265	BOWL, inner	2
20	AB606021	SCREW, inner rim retaining	6
21	BHM7058	ADJUSTER KIT	2	Includes 2 screws, 2 clips and 1 spring.
22	500929	RIM, headlamp, bright finish	2	1961-96; not Designer limited edition or Clubman models.
	500929P	RIM, headlamp, bright finish	2	Non-genuine.
	CDU4058	RIM, headlamp, Nimbus Grey finish	2	Designer limited edition.
23	RTC465	SCREW, rim retaining	2	Not Clubman models.
24	37H7421A	CLIP, retaining rim screw	2	Not Clubman models.
25	CDU4056	NUT, clip	2	Not Clubman models.
26	9403	GASKET, bowl to body	2
27	ADU4278	RIVET, bowl to body	8
28	PTZ1006	SCREW, self tapping, bowl to body	8	Alternative to rivet.
29	13H226	NUT, spire	8	Alternative to rivet.

Cibie/Valeo Type (Usually on Belgian built models)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
30	37H7588	RIM, headlamp	2
31	BAU2109A	RIM, inner	2
32	BAU2152	ADJUSTER KIT	2
33	13H8464	GASKET, bowl to body	2
34	ADU4278	RIVET, bowl to body	8
35	PTZ1006	SCREW, self tapping, bowl to body	8	Alternative to rivet.
36	13H226	NUT, spire	8	Alternative to rivet.

Headlamp Load Levelling Type (1991 on)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
37	HBL01	BOWL ASSEMBLY, headlamp	2	Includes harness and screws.
38	DHF100060	RIM, headlamp	2
39	DHF100010MMM	INNER RIM AND SCREW ASSEMBLY	2
40	XBS100140	MOTOR, headlamp load levelling	2
41	S5825	GASKET, bowl to body	2
42	ADU4278	RIVET, bowl to body	8
43	PTZ1006	SCREW, self tapping, bowl to body	8	Alternative to rivet.
44	13H226	NUT, spire	8	Alternative to rivet.

Headlamps and Bulbs
British Pre-Focus or BPF Type (1959-65; RHD and LHD)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
45	GLU502	LIGHT UNIT, BPF, RHD	2	Accepts pilot bulb.
	17H5375	LIGHT UNIT, BPF, LHD	2	Does not accept pilot bulb.
46	GLB414	BULB, headlamp, BPF, RHD	2
	GLB415	BULB, headlamp, BPF, LHD	2
47	GLB989	BULB, pilot	2

P45T Type (1959-96; LHD only)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
48	GLU515	LIGHT UNIT, P45T, LHD	2	Accepts pilot bulb.
	GLU513	LIGHT UNIT, P45T, LHD	2	Does not accept pilot bulb.
49	47H5125	SPRING, headlamp bulb retaining	2
50	GLB410	BULB, headlamp, P45T, clear glass	2
	GLB411	BULB, headlamp, P45T, yellow glass	2
51	GLB2983	BULB, headlamp, P45T, halogen	2	Alternative.
52	GLB989	BULB, pilot	2	1959-61.
53	GLB233	BULB, pilot	2	1961-96.

Sealed Beam Type (1965-1996; RHD and LHD)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
54	13H3471A	LIGHT UNIT, sealed beam, RHD	2	Accepts pilot bulb.
	GLU101	LIGHT UNIT, sealed beam, RHD	2	Does not accept pilot bulb.
	GLU133	LIGHT UNIT, sealed beam, LHD	2	Does not accept pilot bulb.
55	GLB501	BULB, pilot	2

Cibie/Valeo Type (Usually on Belgian-built models; RHD and LHD)
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
56	GLU600	LIGHT UNIT, Cibie type	2	Accepts pilot bulb.
	BXE725	LIGHT UNIT, Cibie type	2	Does not accept pilot bulb.
57	GLB410	BULB, headlamp, P45T, clear glass	2
	GLB411	BULB, headlamp, P45T, yellow glass	2
58	GLB2983	BULB, headlamp, P45T, halogen	2	Alternative.
59	GLB233	BULB, pilot	2

H4 Halogen Type (1990 on; RHD and LHD)
If you are considering fitting uprated bulbs, it would be wise to install a relay circuit (if the car doesn't already have one) to protect wiring and switches which weren't originally designed to cope with that sort of current running through them. The same can be said, incidentally, of additional driving lamps controlled through the headlamp switchgear. Note also that uprated bulbs are illegal for road use in some countries.

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
60	XCC10001	LIGHT UNIT, halogen H4 type, RHD	2	1990-96 Cooper.
	XBC104430	LIGHT UNIT, halogen H4 type, RHD	2	1997 on all models.
	XBC103410	LIGHT UNIT, halogen H4 type, LHD	2	1991-96 optional; 1997 on all models.
XCC10001 is a very good quality H4 halogen light unit and at time of writing it's a very good price, too! It therefore makes a very good way to upgrade your Mini's headlamps to halogen power.

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
61	GLB472	BULB, headlamp, H4, clear glass, 60/55W	2	Standard power.
	GLB476	BULB, headlamp, H4, yellow glass, 60/55W	2	Standard power.
	GLB484	BULB, headlamp, H4, clear glass, 100/80W	2	Uprated power.
62	GLB233	BULB, pilot	2

H4 Halogen Conversion Kits
One of the very best improvements you can make to your Mini - the difference in performance over sealed beam and tungsten lamps is astonishing. If you rate vastly improved night vision above original appearance of your car, an H4 conversion kit is definitely for you. These kits contain two light units, pilot bulb holders and wiring (where applicable), plus standard bulbs. The light units are the Wipac 'Quadoptic' type, as fitted as original equipment on 1990's Minis. For replacement parts, please refer to the 'H4 Halogen Type' listing above. Note that VUB100250 includes original fitment (1997 on) light units with superior plastic reflectors.

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
63	VUB100250	CONVERSION KIT, halogen H4, RHD	1	With pilot bulb; original fitment.
	S4698B	CONVERSION KIT, halogen H4, RHD	1	With pilot bulb.
	S4694B	CONVERSION KIT, halogen H4, RHD	1	Without pilot bulb.
	S4699B	CONVERSION KIT, halogen H4, LHD	1	With pilot bulb.
	S4695B	CONVERSION KIT, halogen H4, LHD	1	Without pilot bulb.

Headlamp Harnesses and Bulb Holders
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
64	17H5306	BULB HOLDER, headlamp bulb	2	For BPF headlamps with pilot bulbs.
65	27H6713	CONNECTOR, wiring	6	For BPF headlamps with pilot bulbs.
66	27H2333	BULB HOLDER AND HARNESS	2	For BPF headlamps without pilot bulbs.
67	BAU2111	BULB HOLDER AND HARNESS	2	For sealed beam and H4 halogen headlamps with pilot bulbs.
68	27H5976	BULB HOLDER AND HARNESS	2	For P45T headlamps with pilot bulbs.
69	BAU2110	BULB HOLDER AND HARNESS	2	For sealed beam, P45T, Cibie or H4 halogen headlamps without pilot bulbs.
70	600226A	BULB HOLDER, headlamp bulb	2	For sealed beam, P45T, Cibie or H4 halogen headlamps.
71	27H6713	CONNECTOR, wiring	6	For sealed beam, P45T, Cibie or H4 halogen headlamps.
72	47H5352	BULB HOLDER, pilot bulb	2	For BPF headlamps with pilot bulbs.
73	BAU4447	BULB HOLDER, pilot bulb	2	For P45T headlamps with pilot bulbs.
74	37H7590	BULB HOLDER, pilot bulb	2	For Cibie headlamps with pilot bulbs.
