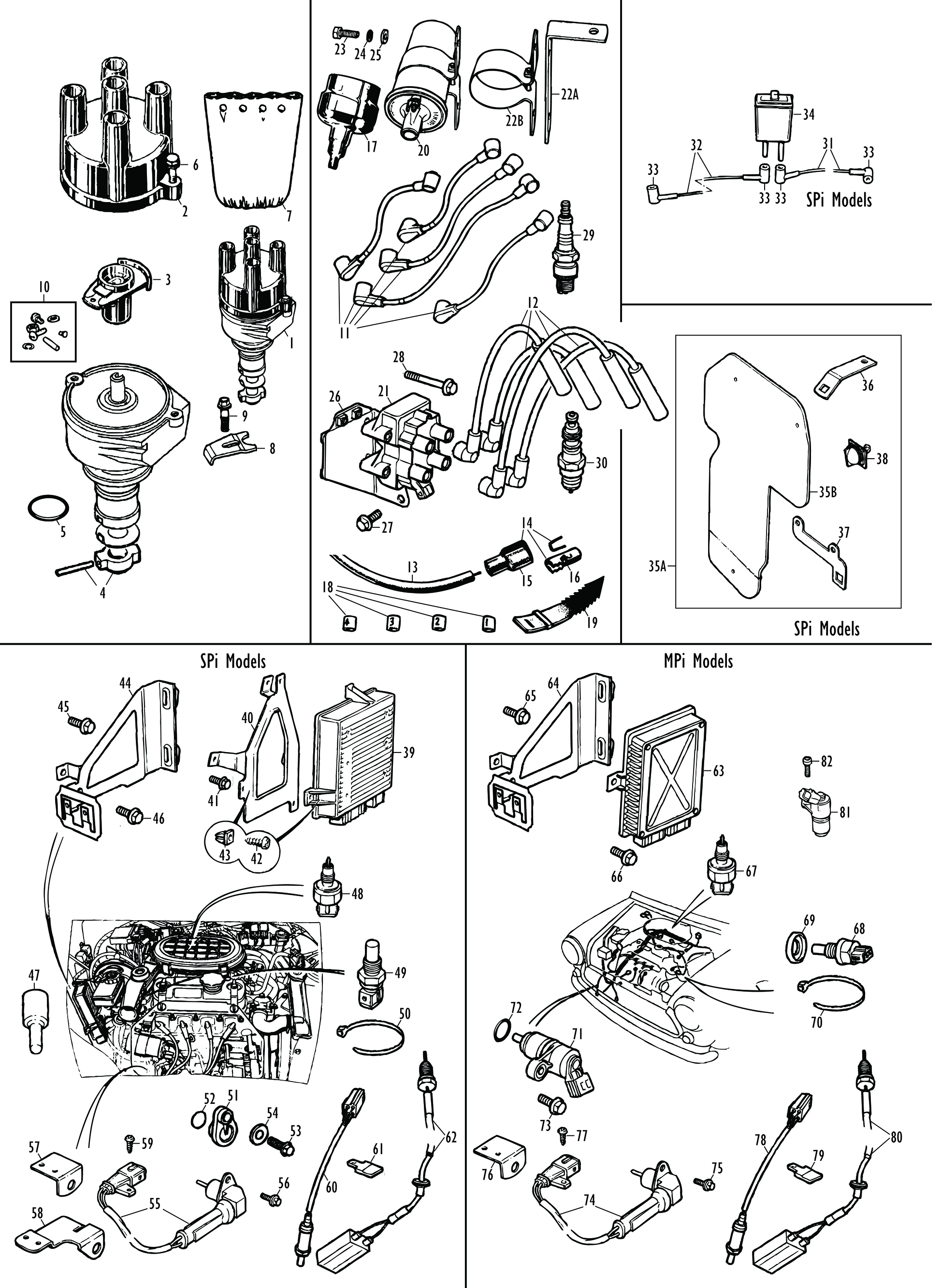

Distributors, ignition and engine electronics - injection models

Distributor
64D Distributor, Single Point Injection (SPi) Models 1991-96
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	NJC10034	DISTRIBUTOR ASSEMBLY, type 64D, new	1

64D Distributor Service Parts
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
2	GDC156	CAP, distributor, top entry, black	1
3	GRA2143	ROTOR ARM	1

64D Distributor Repair and Overhaul Parts
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
4	BAU5109	DOG GEAR, distributor driving	1
5	513682A	O RING, distributor to engine block sealing	1
6	BAU5782	BOLT, cap to distributor	2
7	AUU1104	COVER, distributor cap, waterproof	1
8	TAM1671	PLATE, clamping distributor to engine block	1
9	TAM1706	BOLT, plate to engine block	1
10	CDU2970	SUNDRY PARTS KIT	1	Includes most fixings required during distributor overhaul.

Ignition Leads and Lead Sets
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
11	GHT267	LEAD SET, high tension, copper	1	1991-96, single point injection (SPi), without air conditioning.
	GHT279	LEAD SET, high tension, copper	1	1995-96, single point injection (SPi), with air conditioning (Japan).
12	GHT289	LEAD SET, high tension, copper	1	1997 on, multi-point injection (MPi); also 1997 on, SPi (Japan).
	GHT293	LEAD SET, high tension, copper, Citrus Green	1	Paul Smith limited edition; 1998.
13	AAA5981M	H. T. LEAD, copper, black insulation	A/R	Sold per metre.
14	GCL1110	LEAD END KIT	A/R	For coil or distributor cap connections.
15	8G536	COVER, waterproof	A/R	Included in lead end kit.
16	12G1476	TERMINAL	A/R	Included in lead end kit.
17	8G727	COVER, waterproof, coil end	1	1991-96.
18	ST255	LABEL SET, lead numbering	1	Useful accessory!
19	13H6107	CLEAT, fir tree, leads	1

Ignition Coils
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
20	GCL143	COIL, push-on H.T. lead and spade terminals	1	1991-96, single point injection (SPi).
21	GCL204	COIL, electronic	1	1997 on, multi-point injection (MPi); also 1997 on, SPi (Japan).
22A	12G2994	BRACKET, coil to cylinder head	1	1991-96, SPi models.
22B	JZV1347	BRACKET, coil clamping	1	1991-96, SPi with Bosch type coil.
	JZV1348	BRACKET, coil clamping	1	1991-96, SPi with Ducellier type coil.
	JZV1349	BRACKET, coil clamping	1	1991-96, SPi with Cajavec type coil.
	SCB001	BRACKET, coil clamping	1	Stainless steel accessory.
	ABU360010	BRACKET, coil to cylinder head	1	1995-96, SPi models with air conditioning (Japan).
23	SH605041	SCREW, coil to bracket	2
24	LWZ305	WASHER, shakeproof	2
25	PWZ105	WASHER, plain	2
26	NEU100300	BRACKET, coil to engine block	1	1997 on, MPi; also 1997 on, SPi (Japan).
27	FS108165	SCREW, bracket to engine block	3
28	FB106095	BOLT, coil to bracket	4	Hexagonal head.
	NYP100130	BOLT, coil to bracket	4	Alternative Torx-drive head.

Spark Plugs
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
29	GSP4462	SPARK PLUG, suppressed type, original fitment	4	Single point injection (SPi) 1991-96, Japan 1991 on.
	BPR6ES	SPARK PLUG, suppressed type, NGK alternative	4	Single point injection (SPi) 1991-96, Japan 1991 on.
	BPR7ES	SPARK PLUG, suppressed type, NGK alternative	4	Tuned single point injection (SPi).
30	GSP7669	SPARK PLUG, suppressed type, original fitment	4	Multi-point injection (MPi) 1997 on (not Japan)
	BPR6EVG	SPARK PLUG, suppressed type, NGK alternative	4	Multi-point injection (MPi) 1997 on (not Japan)

Vacuum Pipes
Single Point Injection (SPi) 1991-96, Japan 1991 On.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
31	MLH10022	VACUUM PIPE ASSY., inlet manifold to fuel trap	1
32	MLH10026	VACUUM PIPE ASSY., fuel trap to ECU	1
33	NNZ10001	CONNECTOR, angled	4	Included in vacuum pipe assys.
34	JZV1222	TRAP, fuel, air filter	1

Ignition Splash Shields
Single Point Injection (SPi) 1991-96, Japan 1991 On.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
35A	BHM1675	SPLASH SHIELD KIT	1	Manual SPi models, 1991-96. May require trimming to fit.
35B	NJT10012	SPLASH SHIELD, ignition	1	Manual SPi models, 1991-96.
	NJT10014	SPLASH SHIELD, ignition	1	Automatic SPi models, 1994-96.
	NJT100190	SPLASH SHIELD, ignition	1	Air conditioning models (Japan), 1995 on.
36	NJU10002	BRACKET, shield, upper	2
37	JZV1073	BRACKET, shield, lower	1	Manual SPi models, 1991-96.
	JZV1136	BRACKET, shield, lower	1	Automatic SPi models, 1994-96.
38	13H6461	TURN BUCKLE, shield fastening	3

Electronic Control Systems
For once, we've broken with our convention here to show change points between the electronic components by vehicle identification number (VIN), rather than by year. This is of course because it's vitally important that you match compatible electronic components with each other, and the only sure-fire way of determining what's fitted to your car is by the VIN number. This number may be found on the VIN plate attached to the RH inner wing under the bonnet, plus on later cars it's also on a small plate in the LH corner behind the windscreen.
Single Point Injection (SPi) 1991-96, Japan 1991 On.
Single point injection ceased to be fitted for most countries after 1996, or (VIN) 134454. However Japan continued with SPi until imports finished in 1999.
As you may notice from the coils section above, the 1997 on Japan spec SPi was rather different from the 1991-96 SPi set-up - the most visual difference being the deletion of the distributor and fitment of the quad coil more usually associated with the 1997 on MPi models.
Note that in a few export markets the Cooper was sold with the lower performance Sprite/Mayfair engine, using that engine's control unit. Which countries this concerned is particularly poorly documented, so further research may be required before ordering. A little ray of hope is that some ECUs were marked with the state of tune: 'Standard Performance' means Sprite/Mayfair, whereas 'High Performance' means Cooper.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
39	MNE10027E	ELECTRONIC CONTROL UNIT, engine, reconditioned	1	Manual, Cooper, up to (VIN) 060487, except Japan.
	MNE10078E	ELECTRONIC CONTROL UNIT, engine, reconditioned	1	Manual, Cooper, up to (VIN) 060487, Japan.
	MNE101070N	ELECTRONIC CONTROL UNIT, engine, new	1	Manual, Cooper, (VIN) 060488 to 103112.
	MNE101070E	ELECTRONIC CONTROL UNIT, engine, reconditioned	1	Manual, Cooper, (VIN) 060488 to 103112.
	MNE101170N	ELECTRONIC CONTROL UNIT, engine, new	1	Manual, Cooper, (VIN) 103113 to 134454.
	MNE101170E	ELECTRONIC CONTROL UNIT, engine, reconditioned	1	Manual, Cooper, (VIN) 103113 to 134454.
	MNE101351N	ELECTRONIC CONTROL UNIT, engine, new	1	Manual, Cooper, (VIN) 134455 on, Japan.
	MNE101351E	ELECTRONIC CONTROL UNIT, engine, reconditioned	1	Manual, Cooper, (VIN) 134455 on, Japan.
	MNE10097E	ELECTRONIC CONTROL UNIT, engine, reconditioned	1	Manual, Sprite and Mayfair, up to (VIN) 059586.
	MNE101040N	ELECTRONIC CONTROL UNIT, engine, new	1	Manual, Sprite and Mayfair, (VIN) 059587 to 103112.
	MNE101040E	ELECTRONIC CONTROL UNIT, engine, reconditioned		Manual, Sprite and Mayfair, (VIN) 059587 to 103112.
	MNE101150N	ELECTRONIC CONTROL UNIT, engine, new	1	Manual, Sprite and Mayfair, (VIN) 103113 to 134454.
	MNE101150E	ELECTRONIC CONTROL UNIT, engine, reconditioned		Manual, Sprite and Mayfair, (VIN) 103113 to 134454.
	MNE101351N	ELECTRONIC CONTROL UNIT, engine, new	1	Manual, Mini Std., (VIN) 134455 on, Japan.
	MNE101351E	ELECTRONIC CONTROL UNIT, engine, reconditioned	1	Manual, Mini Std., (VIN) 134455 on, Japan.
	MNE10026E	ELECTRONIC CONTROL UNIT, engine, reconditioned	1	Automatic, up to (VIN) 059844.
	MNE101060N	ELECTRONIC CONTROL UNIT, engine, new	1	Automatic, (VIN) 059845 to 103112.
	MNE101060E	ELECTRONIC CONTROL UNIT, engine, reconditioned	1	Automatic, (VIN) 059845 to 103112.
	MNE101160N	ELECTRONIC CONTROL UNIT, engine, new	1	Automatic, (VIN) 103113 to 134454.
	MNE101160E	ELECTRONIC CONTROL UNIT, engine, reconditioned	1	Automatic, (VIN) 103113 to 134454.
	MNE101361N	ELECTRONIC CONTROL UNIT, engine, new	1	Automatic, (VIN) 134455 on, Japan.
	MNE101361E	ELECTRONIC CONTROL UNIT, engine, reconditioned	1	Automatic, (VIN) 134455 on, Japan.
40	MAU10053	BRACKET, control unit mounting	1	Up to (VIN) 134454 (1991-96).
41	FS106257	SCREW, bracket to body	2
42	AV610081	SCREW, self tapping, control unit to bracket	3
43	GHF1022	NUT, 'Lokut', in bracket	3
44	NNU100590	BRACKET, control unit mounting	1	(VIN) 134455 on (1997 on), Japan.
45	FS106167	SCREW, bracket to body	2
46	FS106167	SCREW, control unit to bracket	2
	MMY100030	SHIELD, rubber, control unit	1	Air conditioned models (1995 on), Japan.
47	YPH10015	COVER, diagnostic unit connector	1
48	NNK10001	SENSOR, air filter, air temperature	1
49	GTR185	SENSOR, water temperature	1	Also transmits reading to temperature gauge.
50	ADU2256	TIE WRAP, water temperature sensor cable securing	1
51	LDT100030	PLUG, blanking, camshaft sensor aperture in engine	1	(VIN) 134455 on (1997 on), Japan.
52	LYX100320	O RING, blanking plug to engine	1
53	FS106167	SCREW, blanking plug to engine	1
54	PWZ104	WASHER, plain	1
55	ADU7340	SENSOR, crankshaft speed	1
56	FS105107	SCREW, crankshaft sensor to engine	2
57	NSU10010	BRACKET, crankshaft sensor plug	1	Manual models.
58	NSU10009	BRACKET, crankshaft sensor plug	1	Automatic models, up to (VIN) 134454 (1991-96).
	NSU10011	BRACKET, crankshaft sensor plug	1	Automatic models, (VIN) 134454 on (1997 on), Japan.
59	AZ610041	SCREW, self tapping, sensor plug to bracket	1
60	MHK10004	SENSOR, oxygen, exhaust	1
61	YYC10017A	CLIP, securing oxygen sensor cable	1
62	WDN100110	SENSOR, catalyst temperature, exhaust	1	(VIN) 134455 on (1997 on), Japan.

Multi-Point Injection (MPi) 1997 On (Not Japan)
There were no MPi automatic models and only one level of performance was available; as a result, browsing through the electronic control units is rather easier than SPi. There's only one change point, and as was the case with SPi it's more accurate and easier to identify using the VIN numbers rather than years.
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
63	MKC104290N	ELECTRONIC CONTROL UNIT, engine, new	1	(VIN) 134455 to 137649.
	MKC104290E	ELECTRONIC CONTROL UNIT, engine, reconditioned	1	(VIN) 134455 to 137649.
	MKC104292N	ELECTRONIC CONTROL UNIT, engine, new	1	(VIN) 137650 on.
	MKC104292E	ELECTRONIC CONTROL UNIT, engine, reconditioned	1	(VIN) 137650 on.
64	NNU100580	BRACKET, control unit mounting	1
65	FS106167	SCREW, bracket to body	2
66	FS106167	SCREW, control unit to bracket	2
67	NNK10001	SENSOR, air filter, air temperature	1
68	GTR206	SENSOR, water temperature	1	Also transmits reading to temperature gauge.
69	MDY100040	WASHER, sealing	1
70	ADU2256	TIE WRAP, water temperature sensor cable securing	1
71	NSC100390	SENSOR, camshaft	1
72	LYX100320	O RING, camshaft sensor to engine	1
73	FS106167	SCREW, camshaft sensor to engine	1
74	ADU7340	SENSOR, crankshaft speed	1
75	FS105107	SCREW, crankshaft sensor to engine	2
76	NSU10010	BRACKET, crankshaft sensor plug	1
77	AZ610041	SCREW, self tapping, sensor plug to bracket	1
78	MHK10004	SENSOR, oxygen, exhaust	1
79	YYC10017A	CLIP, securing oxygen sensor cable	1
80	WDN100110	SENSOR, catalyst temperature, exhaust	1
81	MHK100490	SENSOR, manifold pressure	1	(VIN) 134455 to 169692.
	MHK100600	SENSOR, manifold pressure	1	(VIN) 169693 on.
82	MYP100340	SCREW, sensor to manifold	2
