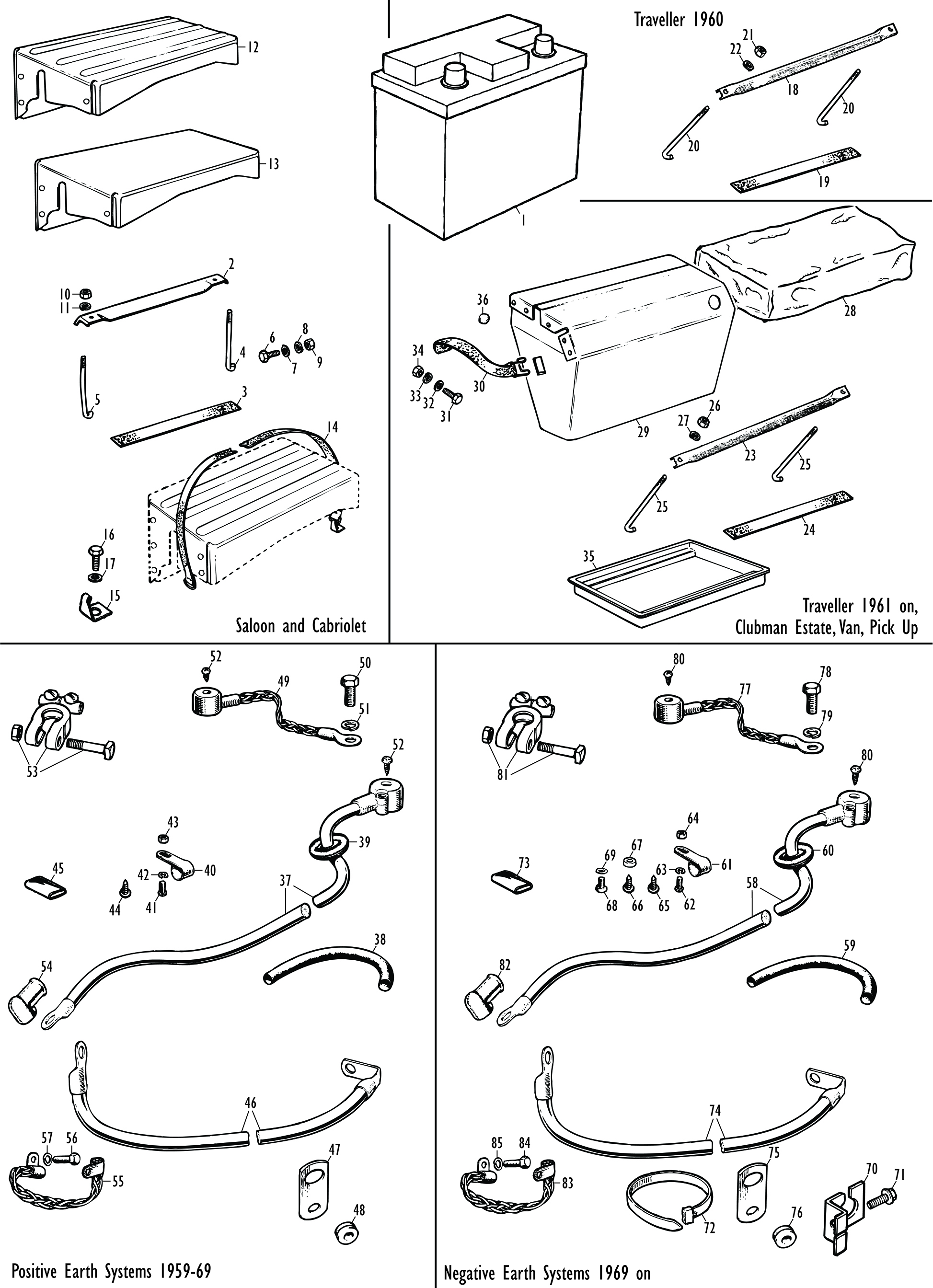

Battery and cables

No.	Part No.	Description	Qty.	Remarks

Battery and Fixings
1	GBA3077	BATTERY	1	Positive earth, all models 1959-69. Negative earth, Clubman Estate, Van and Pick Up models 1969-84.
	GBA3038	BATTERY	1	Negative earth saloon models, 1969 on; not fuel injection.
	GBA3015	BATTERY, heavy duty	1	Fuel injection models, 1991 on.

Saloon and Cabriolet Models
2	14A6890	BAR, battery fixing	1	1959-75.
	HAM2457	BAR, battery fixing	1	1976-90.
	YGJ100010	BAR, battery fixing	1	1990 on.
3	37H3743M	STRIP, insulating, PVC	1	Sold per metre; 254mm required.
4	14A7779	'J' BOLT, fixing, short, front	1	1959-75.
	5L1159	'J' BOLT, fixing, short, front	1	1976-90.
	YJJ100040	'J' BOLT, fixing, short, front	1	1990 on.
5	14A6650	'J' BOLT, fixing, long, rear	1	1959-75.
	5L1158	'J' BOLT, fixing, long, rear	1	1976-90.
	YJH100010	'J' BOLT, fixing, long, rear	1	1990 on.
6	SH604061	SCREW, front 'J' bolt to floor	1
7	PWZ104	WASHER, plain	1
8	LWZ204	WASHER, locking	1
9	FNZ104	NUT	1
10	FNZ104	NUT, 'J' bolt to bar	2
11	LWZ204	WASHER, locking	2
12	5L877	COVER, battery	1	Ribbed design, 1959-93.
13	YJM100020	COVER, battery	1	Plain design, 1993 on.
14	14A7776	STRAP, cover	1
15	14A7780	HOOK BRACKET, strap	1
16	SH605041	SCREW, bracket and battery earth cable to rear floor	1
17	LWZ205	WASHER, locking	1

Traveller and Countryman, 1960
18	14G5509	BAR, battery fixing	1
19	37H3743M	STRIP, insulating, PVC	1	Sold per metre; 254mm required.
20	14A6650	'J' BOLT, fixing	2
21	FNZ104	NUT, 'J' bolt to bar	2
22	LWZ204	WASHER, locking	2

Traveller and Countryman, 1961 On; Clubman Estate, Van and Pick Up
23	14A8195	BAR, battery fixing	1
24	37H3743M	STRIP, insulating, PVC	1	Sold per metre; 254mm required.
25	24A134	'J' BOLT, fixing	2
26	FNZ104	NUT, 'J' bolt to bar	2
27	LWZ204	WASHER, locking	2
28	14B8816	COVER, battery	1	Traveller, Countryman, Clubman Estate and Van with Wooden Load Floor.
29	14A7827	COVER, battery	1	Van with Metal Load Floor and Pick Up.
30	14A7828	STRAP, cover	2	Van with Metal Load Floor and Pick Up.
31	PMZ308	SCREW, strap securing	2	Van with Metal Load Floor and Pick Up.
32	PWZ103	WASHER, plain	2	Van with Metal Load Floor and Pick Up.
33	WL700101	WASHER, locking	2	Van with Metal Load Floor and Pick Up.
34	FNZ103	NUT	2	Van with Metal Load Floor and Pick Up.
35	14A7826	TRAY, battery	1
36	13H305	BUFFER, battery bracket	2

Battery Cables Positive Earth Electrical Systems All models prior to the introduction of the Mini MkIII in 1969, whether a dynamo or an AC type alternator was fitted, had positive earth electrical systems. The only exception to this rule was models fitted with the optional ACR type alternator.
37	2A9153	CABLE, battery terminal to floor starter switch	1	Mini Saloon plus Riley and Wolseley models, 1959-64. Not Super, Cooper or S.
	5L273	CABLE, battery terminal to starter solenoid	1	Mini Saloon plus Riley and Wolseley models, 1964-69. Super, Cooper and S, 1961-69.
	5L116	CABLE, battery terminal to floor starter switch	1	Traveller and Countryman, 1960 (battery under luggage floor).
	5L129	CABLE, battery terminal to floor starter switch	1	Traveller, Countryman and Van with Wooden Load Floor, 1961-64.
	5L505	CABLE, battery terminal to starter solenoid	1	Traveller, Countryman and Van with Wooden Load Floor, 1964-69.
	5L112	CABLE, battery terminal to floor starter switch	1	Van with Metal Load Floor and Pick Up, 1960-64.
	5L515	CABLE, battery terminal to starter solenoid	1	Van with Metal Load Floor and Pick Up, 1964-69.
38	5L568	SLEEVE, battery to solenoid cable	1	For automatic gearbox.
39	5L62	GROMMET, cable through floor	1
40	PCR607	CLIP, cable to subframe	A/R	Usually 3 on rear subframe, 1 on front subframe.
41	PMZ308	SCREW, clip to rear subframe	A/R
42	WL700101	WASHER, locking	A/R
43	FNZ103	NUT	A/R
44	PTZ603	SCREW, self tapping, clip to front subframe	A/R
45	5L64	SLEEVE, body wiring clip	A/R
46	2A9154	CABLE, floor starter switch to starter	1	1959-64; not Super, Cooper or Cooper S.
	5L227	CABLE, starter solenoid to starter	1	For dynamo and manual gearbox fitted models, 1964 on; Super, Cooper and S, 1961 on.
	5L925	CABLE, starter solenoid to starter	1	For alternator or automatic gearbox fitted models, 1964 on; Super, Cooper and S, 1961 on.
47	1K1977	BRACKET, starter cable to engine	1	For automatic gearbox.
48	3H822	GROMMET, bracket	1	For automatic gearbox.
49	1B2802	CABLE, battery terminal to earth	1	Mini Saloon plus Riley and Wolseley models.
	1B2802	CABLE, battery terminal to earth	1	Traveller and Countryman, 1960 (battery under luggage floor).
	11G2016	CABLE, battery terminal to earth	1	Traveller and Countryman, 1961 on; Van and Pick Up.
50	SH605061	SCREW, battery earth cable to floor	1
51	LWZ205	WASHER, locking	1
52	2K8645	SCREW, cable terminal cap to battery terminal	2
53	GHF2755	TERMINAL CLAMP, replacement, positive	1
	GHF2750	TERMINAL CLAMP, replacement, negative	1
54	8G548	CAP, rubber, switch, solenoid and starter terminals	A/R
55	2K8617	CABLE, engine earth	1	For manual gearbox.
	2K8328	CABLE, engine earth	1	For automatic gearbox.
56	SH605041	SCREW, engine earth cable to body	1
57	LWZ205	WASHER, locking	1

Negative Earth Electrical Systems From 1969 on (i.e. MkIII onwards), all models were wired for negative earth. Once again, there was a small exception to the rule - the first few hundred 'MkIII' Vans and Pick Ups retained the earlier positive earth system.

58	5L885	CABLE, battery terminal to starter solenoid	1	Saloon with inertia starter and separate solenoid; 1969-85.
	AUU1089	CABLE, battery terminal to starter solenoid	1	Manual saloon with pre-engaged starter and integral solenoid; 1985-91.
	AUU1124	CABLE, battery terminal to starter solenoid	1	Automatic saloon with pre-engaged starter and integral solenoid; 1985-91.
	YTA10037	CABLE, battery terminal to starter solenoid	1	Manual saloon with pre-engaged starter and integral solenoid; 1991 on.
	YTA10038	CABLE, battery terminal to starter solenoid	1	Automatic saloon with pre-engaged starter and integral solenoid; 1991 on.
	5L887	CABLE, battery terminal to starter solenoid	1	Clubman Estate, Van and Pick Up.
59	5L568	SLEEVE, battery to solenoid cable	1	For automatic gearbox.
60	5L62	GROMMET, cable through floor	1
61	CP105051	CLIP, cable to subframe	A/R	2 on the rear, 3 on the front.
62	PMZ308	SCREW, clip to rear subframe	A/R
63	WL700101	WASHER, locking	A/R
64	FNZ103	NUT	A/R
65	PTZ603	SCREW, self tapping, clip to front subframe	A/R	1969-75.
66	AB608101	SCREW, self tapping, clip to front subframe	A/R	1976 on.
67	DZA3661	DISTANCE PIECE, clip to front subframe	A/R	1976 on.
68	SH505061	SCREW, cable to flywheel housing	1	Manual saloon, 1985 on.
69	LWZ205	WASHER, locking	1	Manual saloon, 1985 on.
70	TAM1918	BRACKET, cable retaining	1	Manual saloon, 1985 on.
	JZV1164	BRACKET, cable retaining	1	Automatic saloon, 1985 on.
71	FS108127	SCREW, bracket	1	1985 on.
72	GHF1268	TIE WRAP, cable	A/R
73	5L64	SLEEVE, body wiring clip	A/R
74	5L925	CABLE, starter solenoid to starter	1	Saloon with inertia starter and separate solenoid; 1969-85.
75	1K1977	BRACKET, starter cable to engine	1	Saloon with inertia starter and separate solenoid; 1969-85.
76	3H822	GROMMET, bracket	1	Saloon with inertia starter and separate solenoid; 1969-85.
77	5L924	CABLE, battery terminal to earth	1	Saloon, 1969-91.
	YTB10022	CABLE, battery terminal to earth	1	Saloon, 1991 on.
	5L888	CABLE, battery terminal to earth	1	Clubman Estate, Van and Pick Up.
78	SH605061	SCREW, battery earth cable to floor	1
79	LWZ205	WASHER, locking	1
80	2K8645	SCREW, cable terminal cap to battery terminal	2
81	GHF2755	TERMINAL CLAMP, replacement, positive	1
	GHF2750	TERMINAL CLAMP, replacement, negative	1
82	8G548	CAP, rubber, switch, solenoid and starter terminals	A/R
83	2K8617	CABLE, engine earth	1	For manual gearbox, 1969-72
	2K8328	CABLE, engine earth	1	For automatic gearbox, 1969-72.
	5L1137	CABLE, engine earth	1	All models, 1973-90.
	YMS10090	CABLE, engine earth	1	All models, 1990 on.
84	SH605041	SCREW, engine earth cable to body	1
85	LWZ205	WASHER, locking	1
