Air filters

Standard Air Filters
Single HS2 Carburetter Type
Manual Gearbox, 1959-74

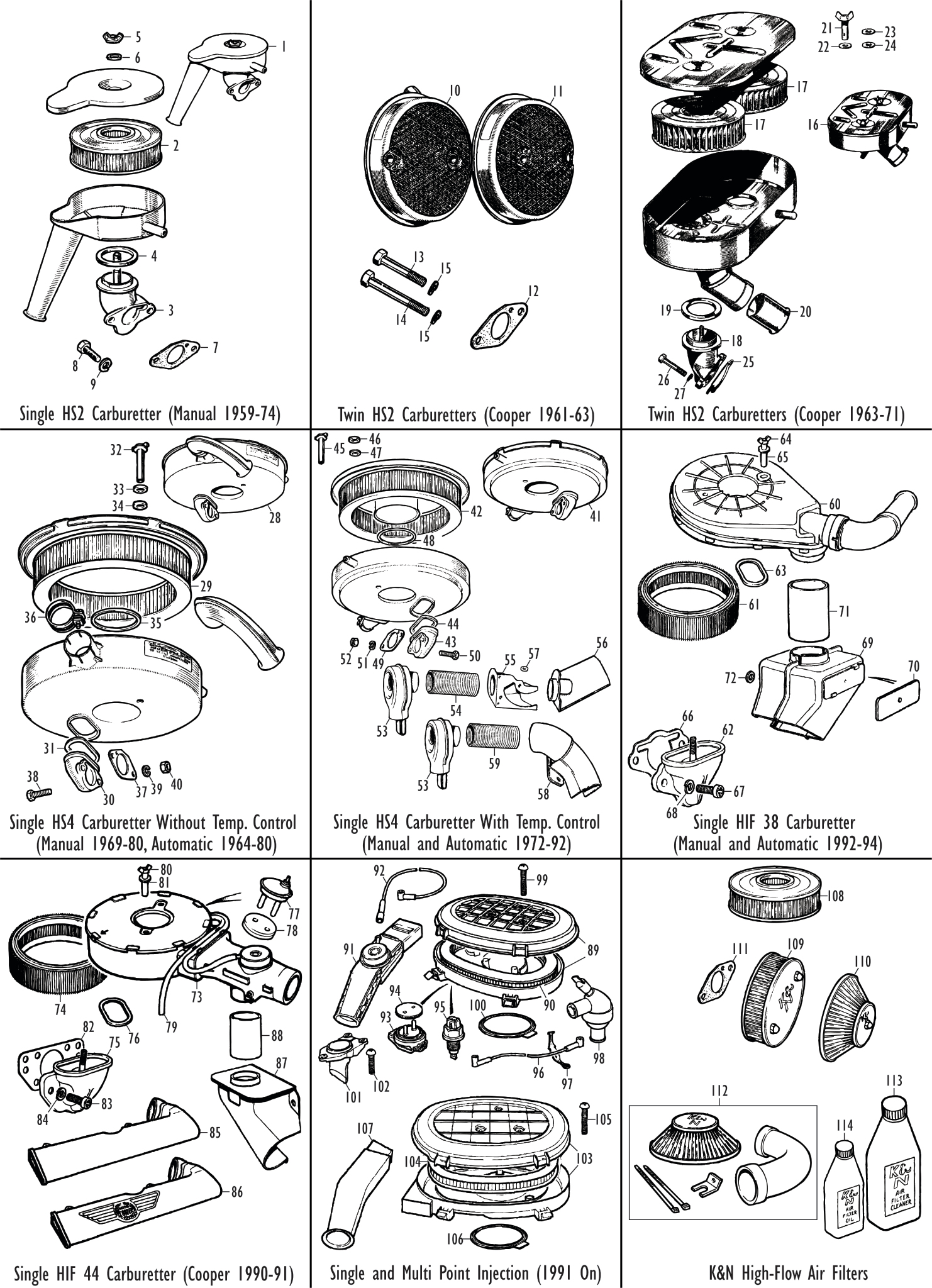

Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
1	12A622	AIR FILTER ASSEMBLY	1	1959-69. Not models with PCV valve.
	12A2007	AIR FILTER ASSEMBLY	1	1964-74. Use for models with PCV valve, 1964-69.
2	GFE1038	ELEMENT, air filter, standard	1
3	27H1389	ELBOW, air filter body to carburetter	1
4	12A1433	WASHER, rubber, air filter body to elbow	1
5	53K2852	WING NUT, air filter lid to body	1
6	ACH5980	WASHER, fibre	1
7	12H862	GASKET, elbow to carburetter	1
8	SH505061	SCREW, coarse thread, elbow to carburetter	2
9	LWZ305	WASHER, locking	2

Twin HS2 Carburetter Type
Cooper and Cooper S, 1961-63
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
10	12A221	AIR FILTER ASSEMBLY, front	1	997cc, 1961-63; 1071cc, 1963.
11	12A222	AIR FILTER ASSEMBLY, rear	1	997cc, 1961-63; 1071cc, 1963.
12	12H862	GASKET, air filter to carburetter	2
13	SH505121	SCREW, coarse thread, short, air filter to carburetter	2
14	SH505131	SCREW, coarse thread, long, air filter to carburetter	2
15	LWZ305	WASHER, locking	4

Twin HS2 Carburetter Type
Cooper and Cooper S, 1963-71
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
16	12A675	AIR FILTER ASSEMBLY	1	1963-69. Not models with PCV valve.
	12A955	AIR FILTER ASSEMBLY	1	1964-69. Models with PCV valve.
	12G2294	AIR FILTER ASSEMBLY	1	1969-71. Will fit earlier models.
17	GFE1038	ELEMENT, air filter, standard	2
18	17H8379	ELBOW, air filter body to carburetter	2
19	12A1433	WASHER, rubber, air filter body to elbow	2
20	17H8382	TUBE, inlet extension	1
21	17H8380	WING NUT, air filter lid to body	2	Fits 12A675 and 12A955 air filter assembly.
	12G2705	WING NUT, air filter lid to body	2	Fits 12G2294 air filter assembly.
22	37H1167	WASHER, wing nut	2	Fits 12A675 and 12A955 air filter assembly.
23	12A1436	WASHER, steel	2	Fits 12G2294 air filter assembly.
24	12A1437	WASHER, fibre	2	Fits 12G2294 air filter assembly.
25	12H862	GASKET, elbow to carburetter	2
26	SH505071	SCREW, coarse thread, elbow to carburetter	4
27	LWZ305	WASHER, locking	4

Single HS4 Carburetter Type, Without Air Temperature Control
Manual Gearbox, 1969-80; Automatic Gearbox, 1964-80
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
28	12A1275	AIR FILTER ASSEMBLY	1	1964-69.
	8G2640	AIR FILTER ASSEMBLY	1	1969-80, 848cc.
	8G2639	AIR FILTER ASSEMBLY	1	1969-80, 998cc. 1969-72, 1275cc.
29	GFE1008	ELEMENT, air filter, standard	1
30	12A1434	ELBOW, air filter body to carburetter	1
31	12A1433	WASHER, rubber, air filter body to elbow	1
32	12A1435	WING NUT, air filter lid to body	2	Fits 12A1275 air filter assembly.
	12G2705	WING NUT, air filter lid to body	2	Fits 8G2640 and 8G2639 air filter assemblies.
33	12A1436	WASHER, steel	2
34	12A1437	WASHER, fibre	2
35	27H6954	O RING, air filter lid to body	1
36	GHC1217	CLIP, intake to air filter assembly	1
37	12G2125	GASKET, elbow to carburetter	1
38	SH605091	SCREW, elbow to carburetter	2
39	LWZ305	WASHER, locking	2
40	FNZ105	NUT	2

Single HS4 Carburetter Type, With Air Temperature Control
Manual and Automatic Gearbox, 1972-92
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
41	12G4298	AIR FILTER ASSEMBLY	1	848cc, 1974-84; 998cc, 1972-88; 1098cc, 1976-82; 1275cc, 1972-80.
	TAM1012	AIR FILTER ASSEMBLY	1	998cc, 1980-88; Japan.
	TAM2138	AIR FILTER ASSEMBLY	1	998cc, 1988-92; with direct acting servo.
42	GFE1008	ELEMENT, air filter, standard	1
43	12G1812	ELBOW, air filter body to carburetter	1	Fits 12G4298 and TAM2138 air filter assemblies.
	TAM1010	ELBOW, air filter body to carburetter	1	Fits TAM1012 air filter assembly.
44	12A1433	WASHER, rubber, air filter body to elbow	1
45	12G1811	WING NUT, air filter lid to body	2
46	12A1436	WASHER, steel	2
47	12A1437	WASHER, fibre	2
48	27H6954	O RING, air filter lid to body	1	If fitted.
49	12G2125	GASKET, elbow to carburetter	1
50	SH605091	SCREW, fine thread, elbow to carburetter	2	1972-85; screws into nut.
	SY505071	SCREW, coarse thread, elbow to carburetter	2	1985-92; screws into carburetter body.
51	LWZ305	WASHER, locking	2
52	FNZ105	NUT, fine thread	2	1972-85.
53	12G3210	CONTROL, air temperature	1
	CAM158	ELBOW, air temperature control to air filter	1	1098cc and 1275cc.
54	12H4344	CONNECTOR, warm air duct	1	Fits 12G4298 and TAM1012 air filter assemblies.
55	12G3213	DUCT, warm air	1	Fits 12G4298 air filter assembly.
56	TAM1009	DUCT, warm air	1	Fits TAM1012 air filter assembly.
57	PWZ105	WASHER, plain, packing	2
58	12A2004	BOX, hot air	1	848cc and 998cc, 1972-76.
	TAM2149	BOX, hot air	1	Fits TAM2138 air filter assembly.
59	LKM10002	CONNECTOR, hot air box	1	Fits TAM2138 air filter assembly.

Single HIF38 Carburetter Type
Manual and Automatic Gearbox, 1992-94
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
60	CAM6037	AIR FILTER ASSEMBLY	1	1275cc, 1992-94.
61	GFE1008	ELEMENT, air filter, standard	1
62	CAM4598	ELBOW, air filter body to carburetter	1
63	12A1433	WASHER, rubber, air filter body to elbow	1
64	CAM6423	WING NUT, air filter lid to body	2
65	PWZ106	WASHER, steel	2
66	12G2125	GASKET, elbow to carburetter	1
67	SY505071	SCREW, elbow to carburetter	2
68	LWZ305	WASHER, locking	2
69	LKK10023	SHROUD, hot air	1
70	CAM6112	PLATE, blanking hot air shroud	1
71	CAM4899	CONNECTOR, hot air shroud	1
72	PWZ105	WASHER, plain, manifold nut to shroud	2

Single HIF44 Carburetter Type
Cooper 1990-91
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
73	PHB10092	AIR FILTER ASSEMBLY	1	1275cc, 1990-91.
74	GFE1008	ELEMENT, air filter, standard	1
75	CAM4694	ELBOW, air filter body to carburetter	1
76	12A1433	WASHER, rubber, air filter body to elbow	1
77	ADU6109	SENSOR, thermal	1
78	UAM1828	SEAL, sensor	1
79	GWW202B	HOSE, air filter ventilation, black PVC	A/R	Sold per metre.
	GWW202M	HOSE, air filter ventilation, clear PVC	A/R	Sold per metre; alternative.
80	CAM6423	WING NUT, air filter lid to body	2
81	PWZ106	WASHER, steel	2
82	12H4271	GASKET, elbow to carburetter	1
83	SY505071	SCREW, elbow to carburetter	2
84	LWZ305	WASHER, locking	2
85	PHD10172	TUBE, air intake, without Cooper logo	1	Cooper Limited Edition (RSP), 1990.
86	PHZ10006	TUBE, air intake, with Cooper logo	1	Cooper 1.3, 1990-91.
87	CAM6767	BOX, hot air	1
88	12H4344	CONNECTOR, hot air box	1

Single Point Injection Type
1991-96; Japan 1997 On
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
89	PHB10081	AIR FILTER ASSEMBLY	1	1275cc SPi, 1991-96 (plus 1275cc SPi Japan 1997 on).
90	GFE1143	ELEMENT, air filter, standard	1
91	PHD10129	TUBE, air intake	1
92	PHP10027	HOSE, tube sensor to air temperature control	1
93	ADU6109	SENSOR, thermal	1
94	UAM1828	SEAL, sensor	1
95	NNK10001	SENSOR, air temperature	1
96	PHP10043	HOSE, vacuum, air filter to inlet manifold	1
97	AAU6365	TIE, vacuum hose to engine harness	2
98	LLN10009	VALVE, depression control	1
99	PYP10018	SCREW, air filter to throttle body	3
100	PHN10011	SEAL, air filter to throttle body	1
101	PHD10210	DUCT, hot air	1
102	PKE10002	SCREW, duct to heatshield	3

Multi Point Injection Type
1997 On; not Japan
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
103	PHB101910	AIR FILTER ASSEMBLY	1	1275cc MPi, 1997 on (not Japan).
104	GFE1143	ELEMENT, air filter, standard	1
105	PYP10018	SCREW, air filter to throttle body	3
106	PHN100160	SEAL, air filter to throttle body	1
107	PHD102860	DUCT, cold air	1

K&N High-Flow Air Filters
The best known and most highly regarded high-flow air filter range, K&N filters have stood the test of time. The range is divided into two types: replacement high-flow elements designed to fit in the original air filter casings, and high-flow air filter assemblies to replace the entire original assemblies. K&N filters are designed for long life fitment, and are not replaced when the car is serviced; they may simply be cleaned and re-oiled using the service products listed here.
Because of the increased air flow through a K&N filter, some adjustment of carburation may be necessary to realise the full potential in increased efficiency.

K&N Replacement High Flow Elements
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
108	E9001	ELEMENT, air filter, K&N	A/R	Single and twin HS2 carburetter installations (replaces GFE1038).
	E2601	ELEMENT, air filter, K&N	A/R	Single HS4, HIF38 and HIF44 carburetter installations (replaces GFE1008).
	E9172	ELEMENT, air filter, K&N	A/R	Single and Multi Point injection installations (replaces GFE1143).

K&N High Flow Air Filter Assemblies
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
109	561630	AIR FILTER ASS'Y, K&N , round, 1 7/8" deep	A/R	Single and twin HS2 carburetter installations; with offset attachment holes for crossmember clearance.
	569128	AIR FILTER ASS'Y, K&N , round, 1 7/8" deep	A/R	HS4 and HIF38 carburetter installations; with offset attachment holes for crossmember clearance.
110	569335	AIR FILTER ASS'Y, K&N, conical, 2 1/2" deep	A/R	Single and twin HS2 carburetter installations; with offset attachment holes for crossmember clearance.
	569320	AIR FILTER ASS'Y, K&N, conical, 2 1/2" deep	A/R	HS4 and HIF38 carburetter installations; with offset attachment holes for crossmember clearance.
	569330	AIR FILTER ASS'Y, K&N, conical, 2 1/2" deep	A/R	HIF44 carburetter installations; with offset attachment holes for crossmember clearance.
111	855001	GASKET, K&N air filter to carburetter	A/R	HS2 carburetter installations.
	855216	GASKET, K&N air filter to carburetter	A/R	HS4 and HIF38 carburetter installations.
	855006	GASKET, K&N air filter to carburetter	A/R	HIF44 carburetter installations.
112	570082	AIR FILTER ASS'Y AND INDUCTION KIT, K&N '57i'	A/R	Single Point injection installations (manual gearbox only); includes conical filter, induction hose and fixings.
	570189	AIR FILTER ASS'Y AND INDUCTION KIT, K&N '57i'	A/R	Multi Point injection installations; includes conical filter, two induction hoses and fixings.

K&N Service Products
Ill. No.	Part No.	Description	Qty. Rqd.	Remarks
113	990621	AIR FILTER CLEANER, K&N, 1 litre bottle	A/R
114	990516	AIR FILTER OIL, K&N, 400ml bottle	A/R	For re-oiling filter after cleaning.
